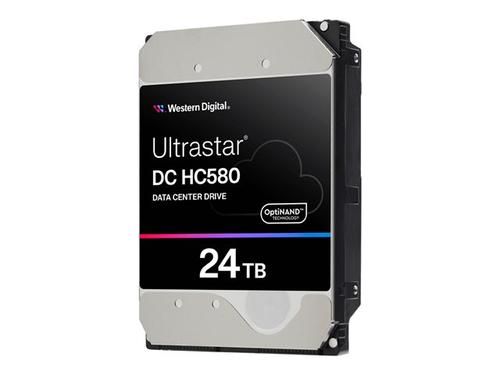

WD Ultrastar DC HC580 WUH722424AL5204 - Hard drive - Data Centre - 24 TB - internal - 3.5" - SAS 12Gb/s - 7200 rpm - buffer: 512 MB
- Brand
- Western Digital
- Product code
- 0F62802
- SKU
- ZIL9YNEMF5FRW
- EAN/GTIN
- 829686008984
- Hard drive
- Data Centre
- 24 TB
- internal
- 3.5"
- SAS 12Gb/s
- 7200 rpm
- buffer: 512 MB
- Weight: 0.88 KG
Product Info
The WD Ultrastar DC HC580 redefines storage capabilities with its 24 TB capacity, tailored for high-density applications and data-intensive tasks. This internal hard drive is engineered for 24x7 operation in data center environments, offering reliability with a MTBF of 2,500,000 hours. It incorporates technologies such as HelioSeal and OptiNAND, which not only maximize storage efficiency but also ensure the integrity of your data under various conditions. With features like Energy-Assisted Magnetic Recording (EAMR) and a Triple State Actuator (TSA), it delivers efficient performance, making it a suitable solution for businesses seeking to optimize their data management and storage systems. The WD Ultrastar DC HC580 stands out with its robust design, capable of withstanding significant shock and vibration, ensuring data safety and drive longevity. Whether it's for massive scale-out operations or critical data storage, this hard drive offers a comprehensive solution to meet the demands of modern data centers.
Description
Enhanced durability
Designed for the demanding data center environment, the WD Ultrastar DC HC580 ensures reliability with a MTBF of 2,500,000 hours, coupled with a robust shock and vibration tolerance. This hard drive is built to withstand the rigors of 24x7 operation, making it a reliable choice for continuous data availability.
High-capacity storage
With a massive 24 TB capacity, the WD Ultrastar DC HC580 meets the growing demands for storage in high-density applications. It's equipped with features like HelioSeal and OptiNAND technology, optimizing storage efficiency and reliability for extensive data archives and critical business information.
Optimized performance
Featuring a data transfer rate of 1. 2 GBps and an internal data rate of 291 MBps, this hard drive delivers swift and efficient performance. The integration of Energy-Assisted Magnetic Recording (EAMR) and Triple State Actuator (TSA) technologies enhances accuracy and speed, making it suitable for data-intensive tasks and applications.
| General | |
|---|---|
| Buffer Size | 512 MB |
| Form Factor | 3.5" |
| Weight | 670 g |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Capacity | 24 TB |
| Device Type | Hard drive - internal |
| Interface | SAS 12Gb/s |
| Features | HelioSeal, advanced format 512e, advanced format 4Kn, OptiNAND technology, ArmorCache Technology, 24x7 availability, Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA), Massive Scale Out (MSO) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 8.7 Watt (random read/write)5.8 Watt (idle) |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | 5 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 40 g @ 2 ms half-sine wave |
| Vibration Tolerance (operating) | 0.7 gRMS @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 gRMS @ 2-200 Hz |
| Shock Tolerance (non-operating) | 200 g @ half-sine wave |
| Performance | |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Drive Transfer Rate | 1.2 GBps (external) |
| Internal Data Rate | 291 MBps |
| Drive Class | Data Centre |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^15 |
| 24x7 Operation | Yes |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SAS 12 Gb/s |
