TP-Link TL-SM311LM network transceiver module

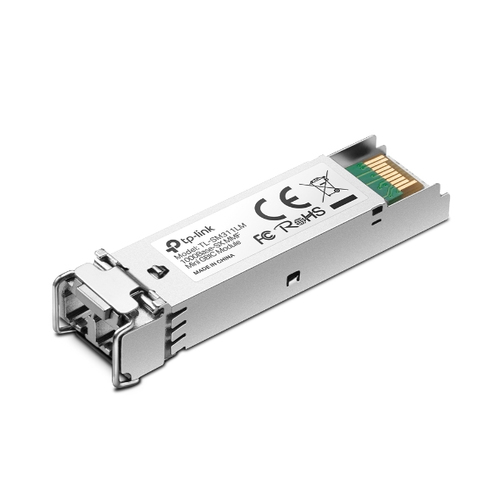

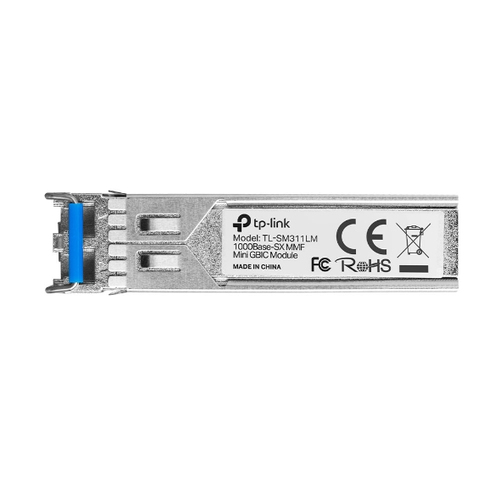

TP-Link TL-SM311LM V4 - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX - LC/UPC multi-mode - up to 550 m - 850 nm

Multi-mode MiniGBIC module

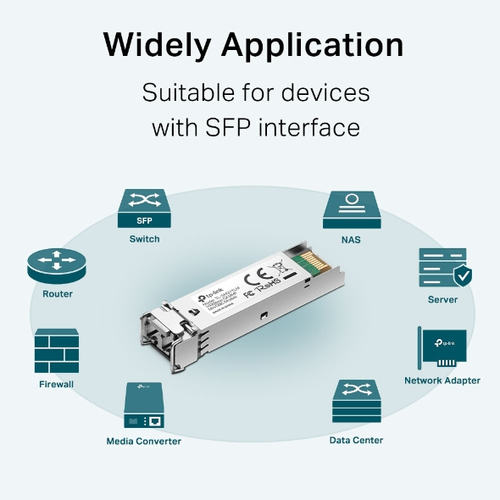

Applied to T3700G-28TQ, TL-SG5412F/TL-SG5428, TL-SL5428E,TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P,TL-SL3428/TL-SL3452, TL-SG2210P/TL-SG2216/TL-SG2424/TL-SG2424P/TL-SG2452, TL-SL2210/TL-SL2218/TL-SL2428/TL-SL2452 and MC220L

€29.72 (Inc. VAT)

(Delivery 2-4 working days)

Product Info

What This Product Does

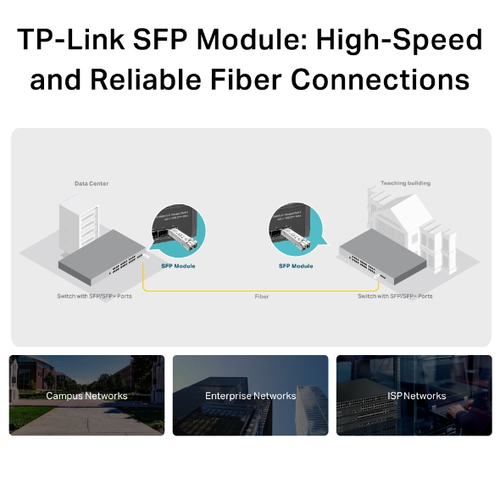

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.

Performance
SFP transceiver type	Fiber optic
Maximum data transfer rate	1250 Mbit/s
Interface type	mini-GBIC/SFP
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	Yes

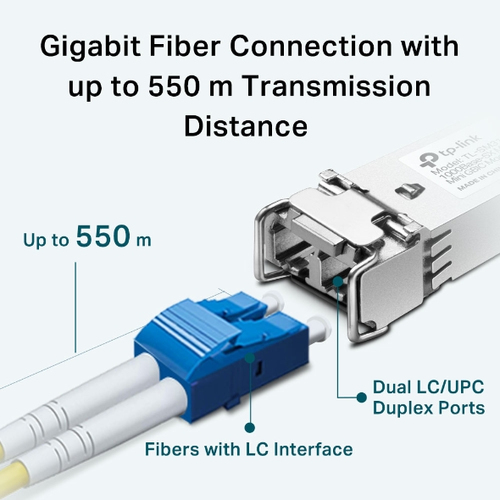

Fiber optic connector	LC (UPC)
Fiber cable diameters supported (core/cladding)	50/125,62.5/125 µm
Maximum transfer distance	550 m
Wavelength	850 nm
Networking standards	IEEE 802.3z
Features
Product colour	Metallic
Power
Input voltage	3.3 V
Certificates
Compliance certificates	RoHS
Certification	FCC, CE
Operational conditions

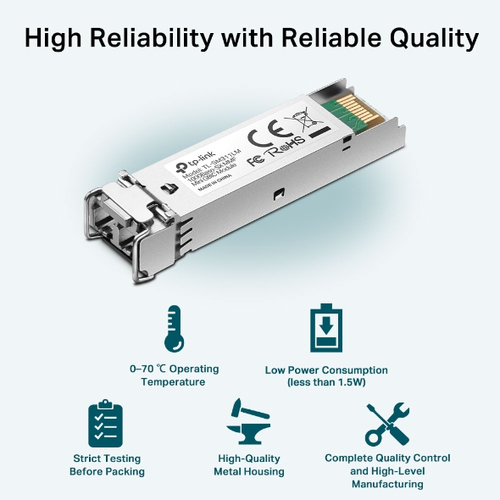

Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	55.4 mm
Depth	13.7 mm
Height	12.9 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
User guide	Yes
Package width	148 mm
Package depth	207 mm
Package height	38 mm
Package weight	110 g
Logistics data
Harmonized System (HS) code	85369010
