Logitech MeetUp + RoomMate + Tap IP video conferencing system

Performance

Bluetooth Yes

Bluetooth version 5.0

Product colour Graphite, White

Product type Group video conferencing system

Wall mountable Yes

Pan range -25 - 25°

Tilt angle range -15 - 15°

PTZ control Yes

Video

HD type 4K Ultra HD

Maximum video resolution 3840 x 2160 pixels

Supported video modes 720p, 1080p, 2160p

Audio

Built-in speaker(s) Yes

Output level 86.5/95 dB

Output voltage Total Harmonic Distortion (THD) 3%

Audio beamforming Yes

Microphone pick-up range 4 m

Sample rates 0 - 32 kHz

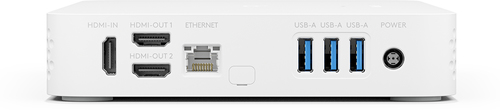

Ports & interfaces

HDMI ports quantity 3

HDMI output ports quantity 2

HDMI input ports quantity 1

USB connector type USB Type-A

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3

Ethernet LAN (RJ-45) ports 1

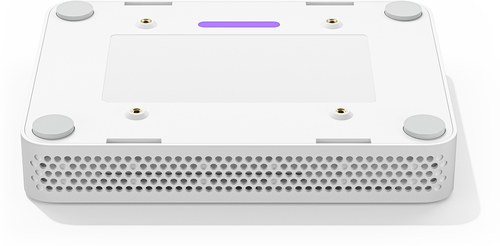

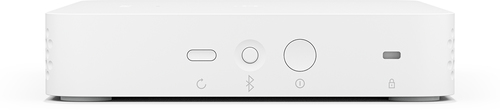

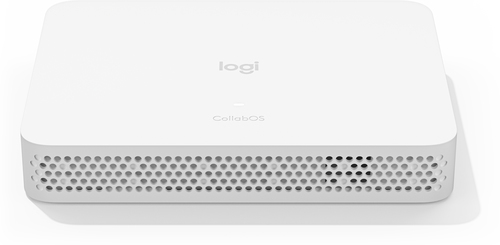

Interface module

Interface module RJ-45 ports quantity 1

Network

Ethernet LAN Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

Wi-Fi Yes

Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Security algorithms 128-bit AES

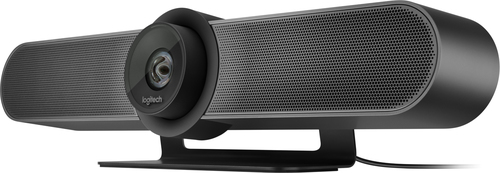

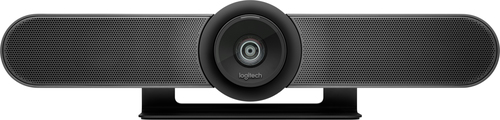

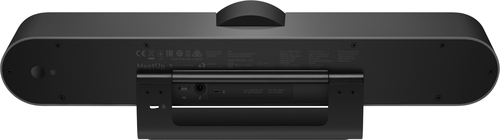

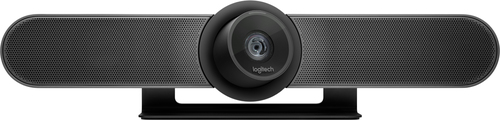

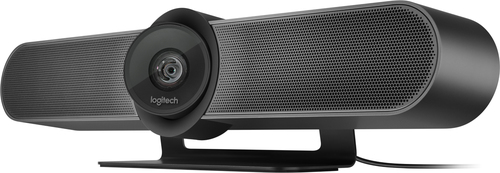

Camera

Zoom capability Yes

Digital zoom 8x

Horizontal field of view 113°

Vertical field of view 80.7°

Diagonal field of view 120°

Number of camera presets 3

Remote control interface RF Wireless

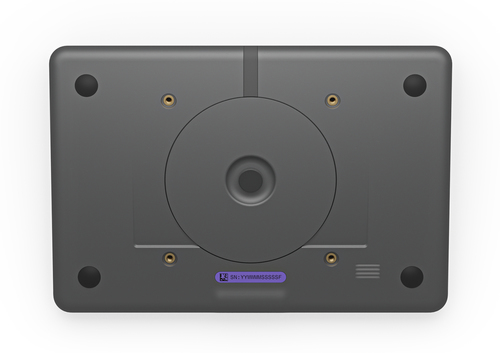

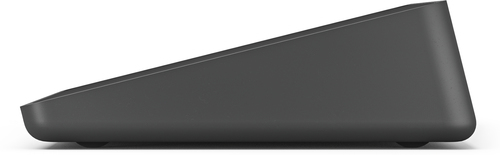

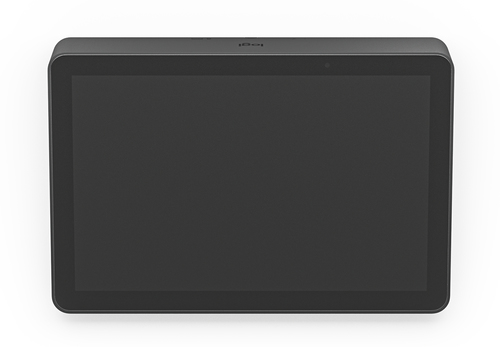

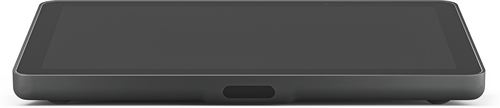

Display

Display IPS

Display diagonal 25.6 cm (10.1")

Display resolution 1280 x 800 pixels

Contrast ratio (typical) 1000:1

Touchscreen Yes

Touchscreen type Capacitive

Viewing angle, horizontal 85°

Viewing angle, vertical 85°

Display brightness 400 cd/m²

Oleophobic coating Yes

Microphone

Microphone sensitivity -27 dB

Microphone frequency 90 - 16000 Hz

Features

Motion sensor Yes

Cable lock slot Yes

Cable lock slot type Kensington

Logistics data

Master (outer) case gross weight 8.82 kg

Master (outer) case length 529 mm

Master (outer) case width 463 mm

Master (outer) case height 203 mm

Battery

Battery capacity 0.675 Wh

Computer system

VESA mounting Yes

Operating system installed CollabOS

Windows operating systems supported Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1

Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey

Operational conditions

Operating temperature (T-T) 0 - 40 °C

Operating relative humidity (H-H) 10 - 95%

Storage temperature (T-T) -40 - 70 °C

Power

Power source type AC

AC input voltage 100 - 240 V

Current 4.74 A

DC input voltage 19 V

Battery technology Lithium

Battery capacity 220 mAh

Number of batteries supported 2

Power plug type Type C

Weight & dimensions

Interface module dimensions (W x D x H) 246.2 x 171.3 x 56.1 mm

Interface module weight 1 kg

Remote control dimensions (W x H x D) 83 x 83 x 10 mm

Camera dimensions (WxDxH) 400 x 85 x 104 mm

Camera weight 1.04 kg

Width 161 mm

Depth 211 mm

Height 34.5 mm

Weight 1.04 kg

Package width 456 mm

Package depth 522 mm

Package height 189 mm

Package weight 8.82 kg

Packaging content

Cables included AC, DC, USB

Power cable length 1.5 m

AC adapter included Yes

Mounting kit Yes

Camera included Yes
