Eaton Tripp Lite Series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 2 m - Patch cable - MTP/MPO multi-mode (M) to LC multi-mode (M) - 2 m - fibre optic - OM4 - plenum - magenta
- Brand
- TRIPP LITE
- Product code
- N845-02M-8L-MG
- SKU
- KD1F3IVSHR3IG
- EAN/GTIN
- 037332200051
- Push/pull tab connectors install/remove with one hand
- Plenum-rated jacket for connecting in ceilings, walls and ducts
- Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections
- Magenta color for easy OM4 identification
- Slim, space-saving uniboot design for neat cable management
- Premium-grade ceramic ferrule designed for fast applications
Product Info

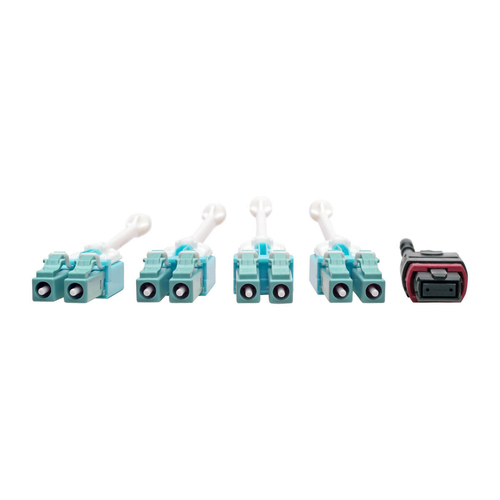

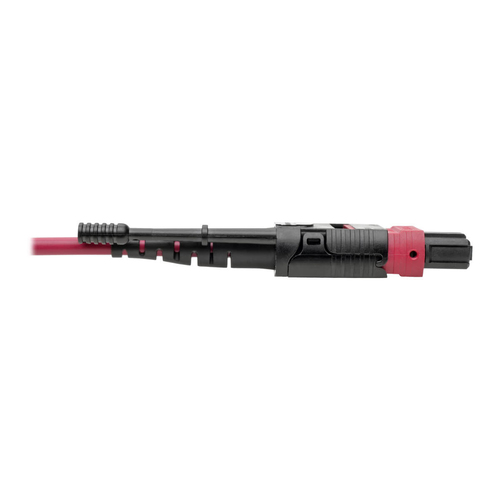

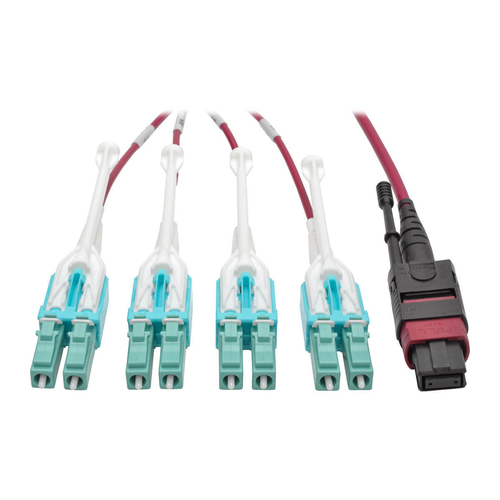

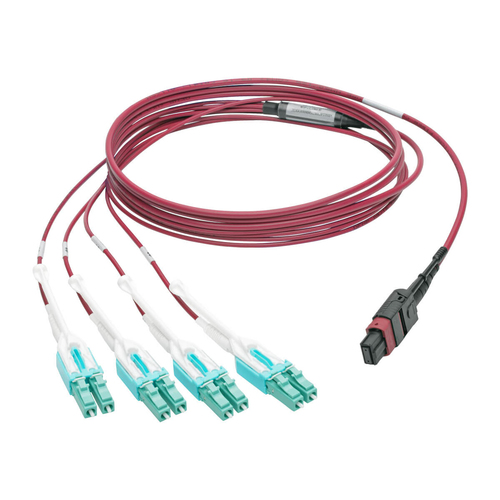

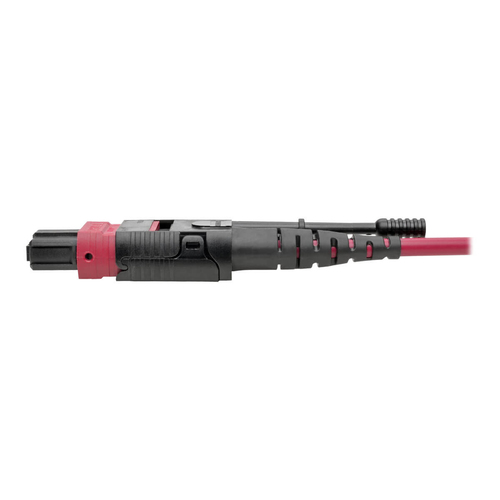

The two-meter N845-02M-8L-MG MTP/MPO to 8xLC Fan-Out Patch Cable supports 40 Gb Ethernet speeds and is designed for high-density connections between 40GBASE-SR4 network equipment. With one female MTP/MPO and eight male LC connectors, this OM4-rated multimode fiber optic fan-out cable supports various multi- and single-fiber connections. It fully transmits 40GBASE-SR with four fibers transmitting at 10 Gbps in each direction. Base-8 Fiber compatible with both QSFP+ 40GBASE-SR4 and QSFP28 100GBASE-SR4 connections.

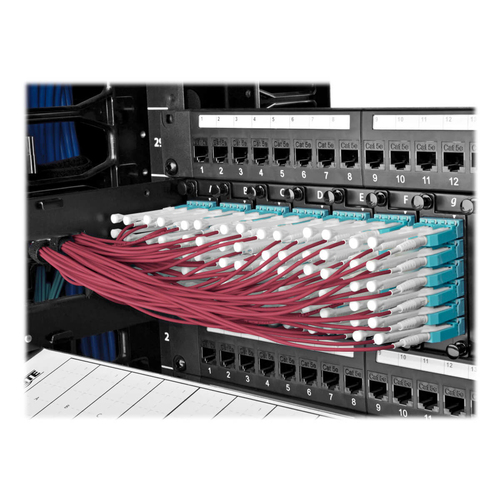

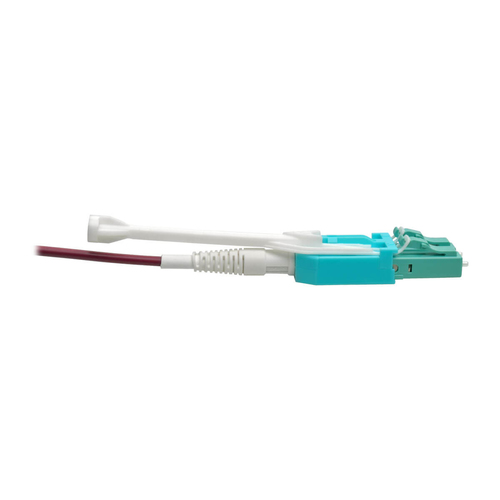

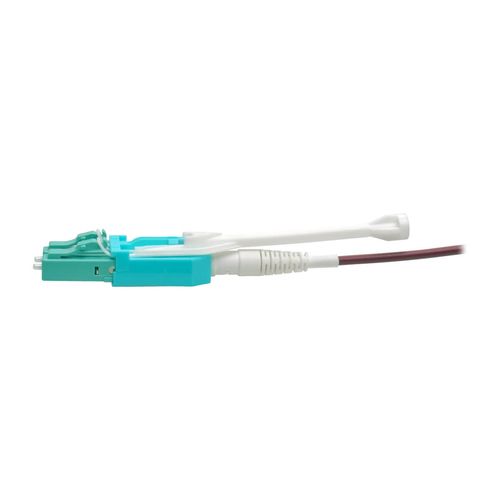

Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The magenta-colored N845-02M-8L-MG features a premium-grade ceramic ferrule for 10 GbE and faster applications. The slim, space-saving uniboot design makes cable easier to manage. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts. The sturdy plastic housing is built to last a long time.
| Features | |
|---|---|
| Cable length | 2 m |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable type | CMP |
| Fibre optic type | OM4 |
| Product colour | Black, Magenta, Turquoise |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 100 Gbit/s |
| Connector material | Ceramic |
| Country of origin | China |
| Technical details | |
| Sustainability certificates | RoHS |
| Master (outer) case GTIN (EAN/UPC) | 10037332200058 |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Packaging data | |
| Package width | 177.8 mm |
| Package depth | 12.7 mm |
| Package height | 228.6 mm |
| Package weight | 70 g |
| Logistics data | |
| Master (outer) case width | 149.9 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 101.6 mm |
| Master (outer) case height | 185.4 mm |
| Master (outer) case gross weight | 770 g |
| Products per master (outer) case | 10 pc(s) |
