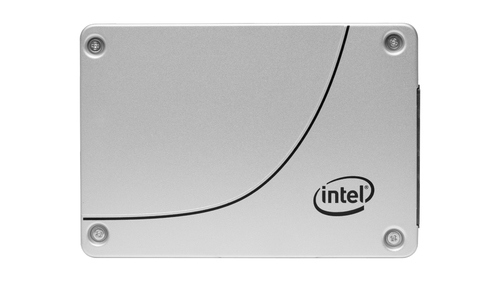

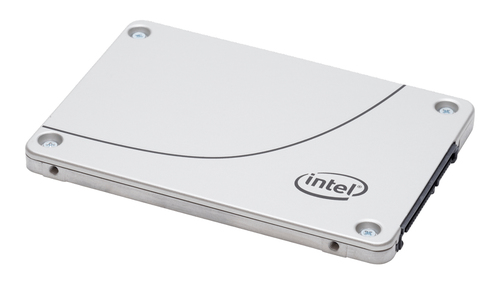

Intel SSDSC2KG480G801 internal solid state drive
Intel Solid-State Drive D3-S4610 Series - SSD - encrypted - 480 GB - internal - 2.5" - SATA 6Gb/s - 256-bit AES
- Brand
- SOLIDIGM
- Product code
- SSDSC2KG480G801
- SKU
- WWQP23M4GNLXA
- EAN/GTIN
- 735858361927
- 480 GB 2.5" Serial ATA III
- Read speed: 560 MB/s
- Write speed: 510 MB/s
- TLC 3D NAND
- Hardware encryption 256-bit AES
- Component for: Server/workstation
€219.52
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Product Info
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
| Features | |
|---|---|
| NAND flash type | TLC (Triple Level Cell) |
| Security algorithms | 256-bit AES |
| SSD form factor | 2.5" |
| SSD capacity | 480 GB |
| Interface | Serial ATA III |
| Memory type | TLC 3D NAND |
| NVMe | No |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 510 MB/s |
| Random read (100% span) | 96000 IOPS |
| Random write (100% span) | 44500 IOPS |
| Read latency | 36 µs |
| Write latency | 37 µs |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| SSD temperature monitoring | Yes |
| Temperature monitoring and logging | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Market segment | Server |
| SSD ARK ID | 134919 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G162706 |
| Power | |
| Power consumption (idle) | 1 W |
| Brand-specific features | |
| Intel High Endurance Technology (HET) | No |
| Intel® Rapid Start Technology | No |
| Intel® Remote Secure Erase | No |
| Intel® Smart Response Technology | No |
| Intel Smart Response Technology version | 0.00 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Operating / non-operating shock | 1000 G/0.5 msec |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Other features | |
| Product colour | Silver |
| Power consumption (active) | 3.1 W |
| Drive capacity | 480 GB |
| Launch date | Q3'18 |
| SSD endurance rating | 3.0 PBW |
| SSD hardware encryption | AES 256 bit |
| SSD power consumption (active) | 3.1W |
| SSD power consumption (idle) | 1.0W |
| SSD shock | 1000 G/0.5 msec |
| Sequential reading | 560 MB/s |
| Sequential writing speed | 510 MB/s |
| Status | Launched |
| Last change | 63903513 |
| Processor family | Intel SSD D3 |
| Intel Rapid Start Technology version | 0.00 |
| Remote Secure Erase (RSE) technology version | 0.00 |
| Product family | Data center SSD |
| Product series | Intel® SSD D3-S4610 Series |
| Product codename | Youngsville Refresh |
