K/AVE-7540+Rally Bar
- Brand
- AVOCOR
- Product code
- AVO-AVE-7540-RB
- SKU
- LVJ7TO60CJUNW
Product Info

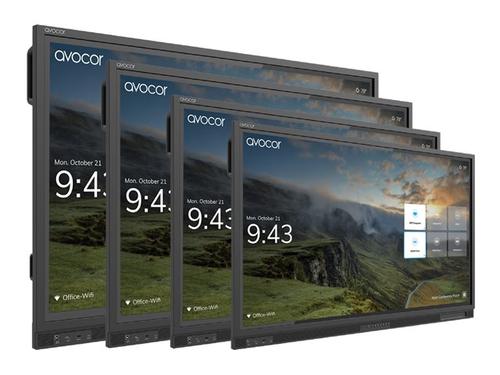

The improved E-series displays utilize optimized touch technology that supports up to 20 points of touch using Avocor Intelligent Touch, and superior optically bonded glass technology providing a smooth and extremely accurate, low-latency writing experience as well as object recognition. The ability to easily switch between using a pen, finger, and palm create for a fluid collaborative environment for users in real-time, with an array of front-facing guest connectivity options including a Type-C connection along the Connect and Control bar, and features Avocor's UiQ touch enabled interface, enhancing the user experience and FUSE remote management, completely free-of-charge.
Description
Enhanced connectivity
Equipped with a comprehensive range of connections including USB-C with 45W Power Delivery, HDMI, DisplayPort, and a USB 3. 0 hub, this display ensures seamless integration with a variety of devices. The side connector location enhances accessibility, making it easier to connect and disconnect peripherals.
Superior visual experience
The 75-inch LED-backlit LCD flat panel display offers a stunning 4K UHD (2160p) resolution, supported by direct-lit LED technology for vivid colors and deep contrasts. With a brightness of 400 cd/m2 and a color support of over 1 billion colors, visuals are rendered with exceptional clarity and detail.
Interactive features
Designed for interactive communication, this display supports 20 touchpoints and includes Avocor Intelligent Touch and Avocor UiQ technology, providing a responsive and intuitive touch experience. The inclusion of a fine tip stylus support further enhances precision, making it ideal for collaborative environments.
Durable and user-friendly design
The display is protected by bonded glass and features anti-glare, anti-fingerprint coatings, ensuring a clear view under various lighting conditions and maintaining a clean, smudge-free surface. The zero parallax coating eliminates cursor offset, enhancing the accuracy of touch interactions.
| General | |
|---|---|
| Power Consumption (Max) | 340 Watt |
| Depth | 9.1 cm |
| TV Tuner Presence | No |
| Weight | 52 kg |
| HDMI Ports Qty | 3 ports |
| Width | 173.5 cm |
| Height | 106.2 cm |
| Video Interface | HDMI |
| TV Tuner | No tuner |
| PC Interface | DisplayPort |
| Series | E Series |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 75" |
| Modes | Landscape mode |
| Combined With | Touchscreen (multi touch) |
| Commercial Use | Yes - interactive |
| Protection | Bonded glass |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% |
| Power | |
| Power Device | Power supply |
| Power Consumption Stand by | 0.5 Watt |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Display | |
| Touchpoints Qty | 20 |
| Response Time | 8 ms |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 4000:1 |
| Viewing Angle | 178 degrees |
| Viewing Angle (Vertical) | 178 degrees |
| Resolution | 3840 x 2160 |
| LCD Backlight Technology | Direct-lit LED |
| Display Format | 4K UHD (2160p) |
| Brightness | 400 cd/m² |
| Frame Rate & Enhancement Technology | 60 Hz Frequency |
| Colour Support | 1070000000 colours |
| Coating | Zero parallax, anti-glare, anti-fingerprint |
| Commercial Features | FUSE remote management, Open Pluggable Standard (OPS) support |
| Features | Fine tip stylus support, Avocor Intelligent Touch, Avocor UiQ, 10-bit support, Auto-source-detection, Freeze and Blank, Source preview |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 22.7 cm |
| Weight (Shipping) | 64 kg |
| Height (Shipping) | 121 cm |
| Width (Shipping) | 188.6 cm |
| Remote Control | |
| Battery Included | Yes |
| Type | Remote control |
| Features | Freeze image, source selection |
| Stands & Mounts | |
| VESA Compatibility | Yes |
| Flat Panel Mount Interface | 800 x 400 mm |
| Audio System | |
| Speaker System | 2 speakers |
| Speakers | 2 x speaker - 20 Watt |
| Miscellaneous | |
| Included Accessories | Power cable, 2 fine-tip passive touch styluses |
| Cables Included | HDMI cable - 3 mUSB-B to USB-A cable - 3 mUSB-C cable - 1.8 m |
| Connections | |
| Connector Type | USB-C with 45W Power DeliveryHDMITouchUSB 3.0 hub2 x HDMI - sideDisplayPort - sideTouch - sideUSB 3.0 hub - sideService - sideHDMI output - sideAudio outputSPDIF input/outputRS-232LAN inputLAN output |
