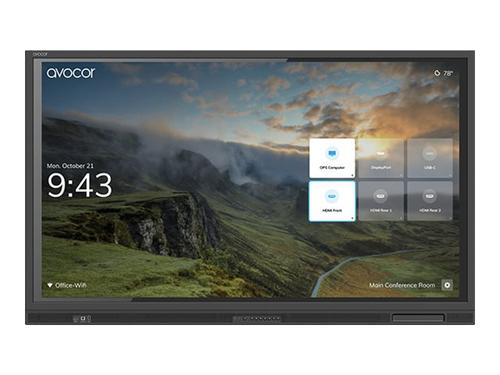

K/AVE-8640+Rally Bar
- Brand
- AVOCOR
- Product code
- AVO-AVE-8640-RB
- SKU
- 0W9E62ZAJYAKP
Product Info
The improved E series displays utilize optimized touch technology that supports up to 20 points of touch using Avocor Intelligent Touch, and superior optically bonded glass technology providing a smooth and extremely accurate, low latency writing experience as well as object recognition. The ability to easily switch between using a pen, finger, and palm create for a fluid collaborative environment for users in real-time, with an array of front-facing guest connectivity options now including a Type-C connection along the Connect and Control bar, and features Avocor's UiQ touch enabled interface, enhancing the user experience and FUSE remote management, completely free-of-charge.
Description
Avocor UIQ
Avocor UiQ is Avocor's smart, touch-enabled dynamic user interface. It includes features such as source preview and a touch menu, allowing for remote control-free usage.
Over-The-Air (OTA) firmware UIQ
Over-the-air (OTA) firmware update capability enables firmware updates to be more efficiently deployed rather than manually upgrading each device individually.
Superior glass technology
Superior glass technology provides a smooth and extremely accurate, low latency writing experience. Object recognition allows users to easily switch between pen, finger, and palm creating a fluid collaborative environment in real-time.
No parallax digital inking
Zero parallax glass surface with anti-glare and anti-fingerprint coating ensures a crisp image with smooth, pixel-perfect inking.
4K video with enhanced HDMI
The HDMI supports 4K video at 60 Hz, and there is also a range of connectivity options available, including front-facing guest HDMI, USB touch connections, and a USB hub connection for easy access to USB drive data.
Front-facing sound bar
An included high-quality, front-facing soundbar module ensures that the display delivers conference room audio that is crystal-clear, providing an excellent audio experience.
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% |
| Power | |
| Power Device | Power supply |
| Power Consumption Stand by | 0.5 Watt |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Media Player | |
| USB Ports Qty | 4 |
| USB Port | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Audio System | |
| Output Power / Total | 40 Watt |
| Speaker System | 2 speakers |
| Speakers | 2 x main channel speaker - 20 Watt |
| Display | |
| Touchpoints Qty | 20 |
| Response Time | 8 ms |
| Image Aspect Ratio | 16:9 |
| Image Contrast Ratio | 4000:1 |
| Viewing Angle | 178 degrees |
| Viewing Angle (Vertical) | 178 degrees |
| Resolution | 3840 x 2160 |
| LCD Backlight Technology | Direct-lit LED |
| Display Format | 4K UHD (2160p) |
| Brightness | 400 cd/m² |
| Frame Rate & Enhancement Technology | 60 Hz Frequency |
| Colour Support | 1070000000 colours |
| Coating | Zero parallax, anti-glare, anti-fingerprint |
| Features | Over-the-Air Update (OTA), Avocor UiQ, 10-bit support, Avocor Intelligent Touch, fine tip stylus support, OPS Slot, Auto-source-detection, Source preview, carrying handles |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 27 cm |
| Weight (Shipping) | 78 kg |
| Height (Shipping) | 138 cm |
| Width (Shipping) | 217 cm |
| General | |
| Depth | 11.2 cm |
| TV Tuner Presence | No |
| HDMI Ports Qty | 3 ports |
| Height | 121.1 cm |
| Weight | 61.5 kg |
| Video Interface | HDMI |
| PC Interface | DisplayPort |
| Series | E Series |
| Product Type | LED-backlit LCD flat panel display |
| Width | 201.8 cm |
| Modes | Landscape mode |
| Diagonal Class | 86" |
| Combined With | Touchscreen (multi touch) |
| Commercial Use | Yes - interactive |
| Protection | Bonded glass |
| Picture Enhancements | Freeze, Blank |
| Country Kits | European Union, United Kingdom, United States, Australia |
| Remote Control | |
| Battery Included | Yes |
| Type | Remote control |
| Stands & Mounts | |
| VESA Compatibility | Yes |
| Flat Panel Mount Interface | 800 x 400 mm |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| Miscellaneous | |
| Cables Included | SuperSpeed USB cable - 3 mUSB-C cable - 1.8 mHDMI cable - 3 m |
| Included Accessories | 2 fine-tip passive touch styluses, power cord |
| Connections | |
| Connector Type | Touch - sideTouch - sideTouch - frontUSB-C with 45W Power Delivery - frontHDMI - frontUSB 3.0 - front2 x HDMI input - sideDisplayPort - sideUSB 3.0 - sideUSB (service only) - sideHDMI output - sideSPDIF outputAudio line-outRS-232LAN inputLAN output |
