K/AVG-7560+Rally Bar
- Brand
- AVOCOR
- Product code
- AVO-AVG-7560-RB
- SKU
- G6WWWDNB0PUPU
Product Info

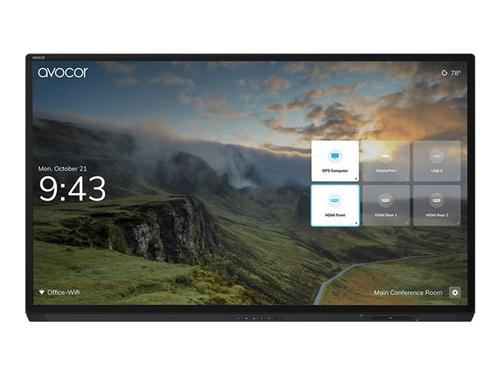

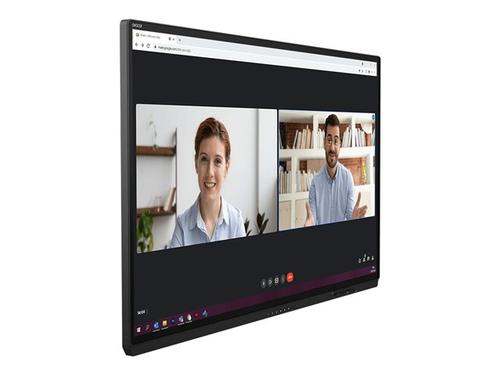

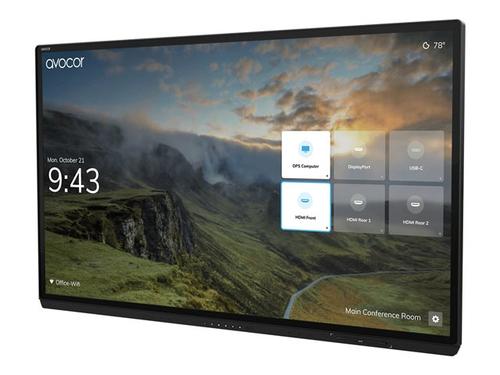

The Avocor G series is a range of sleek, bezel-less, edge-to-edge interactive displays designed to streamline workplace collaboration. These crystal-clear 4K collaboration displays use InGlass technology combined with bonded glass to deliver ultra-fast touch performance, supporting up to 20 individual touch points and 4 passive styluses. The G series also provides a 40W crystal-clear audio experience with built-in active microphones. The result is a pixel-perfect user experience and high performance. G series collaboration displays give users an intuitive and interactive experience for participants in the room and meeting equity for those who are remote.
Description
Enhanced connectivity
With a variety of connectors including HDMI, DisplayPort, USB-C with 60 W Power Delivery, and more, this device ensures seamless connection to a wide range of peripherals and devices.
Immersive audio experience
Equipped with a 40 W total output power and four built-in speakers, it delivers rich, clear, and powerful sound, enhancing any presentation or media content.
Optimal viewing
The anti-glare, LED-backlit LCD flat panel display with a 75-inch diagonal class offers 4K UHD resolution, ensuring vivid and sharp images. The 178° viewing angle allows for clear views from almost any position.
Interactive touch technology
Features Avocor InGlass M5 Intelligent Touch combined with a multitouch touchscreen, making it ideal for interactive communication and collaboration in commercial settings.
Versatile usage modes
Supports various modes including Cinema, Sports, Vivid, Game, Landscape, and User, catering to different viewing preferences and scenarios.
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 85% |
| Power | |
| Power Device | Power supply |
| Power Consumption Stand by | 0.5 Watt |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Media Player | |
| USB Ports Qty | 5 |
| USB Port | Yes |
| Audio System | |
| Output Power / Total | 40 Watt |
| Speaker System | 4 speakers |
| Speakers | 4 x main channel speaker - 10 Watt |
| Display | |
| Coating | Anti-glare |
| Image Aspect Ratio | 16:9 |
| Response Time | 9.5 ms |
| Viewing Angle | 178 degrees |
| Viewing Angle (Vertical) | 178 degrees |
| Image Contrast Ratio | 5000:1 |
| Resolution | 3840 x 2160 |
| LCD Backlight Technology | Direct-lit LED |
| Display Format | 4K UHD (2160p) |
| Brightness | 500 cd/m² |
| Frame Rate & Enhancement Technology | 60 Hz Frequency |
| Features | Anti-fingerprint, OPS Slot, Avocor InGlass M5 Intelligent Touch, Avocor UiQ |
| Dimensions & Weight (Shipping) | |
| Depth (Shipping) | 28.4 cm |
| Weight (Shipping) | 100 kg |
| Height (Shipping) | 129.4 cm |
| Width (Shipping) | 201.2 cm |
| Stands & Mounts | |
| VESA Compatibility | Yes |
| Flat Panel Mount Interface | 600 x 400 mm |
| General | |
| HDMI Ports Qty | 2 ports |
| Power Consumption (Max) | 395 Watt |
| TV Tuner Presence | No |
| Weight | 71.6 kg |
| Video Interface | HDMI |
| Sensors | Presence sensor |
| PC Interface | DisplayPort |
| Depth | 11.68 cm |
| Product Type | LED-backlit LCD flat panel display |
| Diagonal Class | 75" |
| Combined With | Touchscreen (multi touch) |
| Picture Enhancements | 30-bit Deep Colour |
| Series | G Series |
| Commercial Use | Yes - interactive |
| Modes | Game mode, landscape mode, Sports mode, Cinema mode, user mode, Vivid mode |
| Width | 170.35 cm |
| Height | 100.92 cm |
| Remote Control | |
| Type | Remote control |
| Miscellaneous | |
| Included Accessories | 2 touch pens |
| Cables Included | USB cable - 3 mHDMI cable - 3 mUSB-C cable - 1.8 m |
| Connections | |
| Connector Type | 2 x HDMI - sideDisplayPort - sideUSB-C with 60W Power Delivery - side3 x USB 3.0 - sideAudio line-outLAN input4 x USB 3.0 - sideLAN outputUSB 3.0 Host - sideSPDIF outputUSB input - sideRemote control inputRS-232 |
