Vision TC3-AMP
TC3-AMP+ - 8468232000007

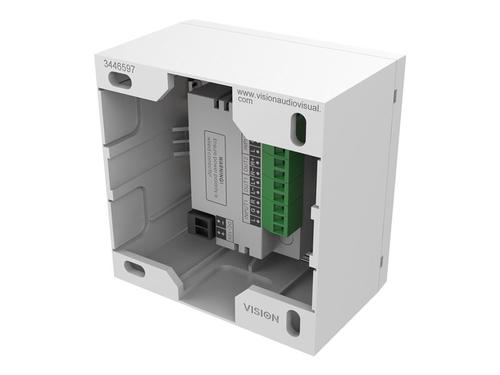

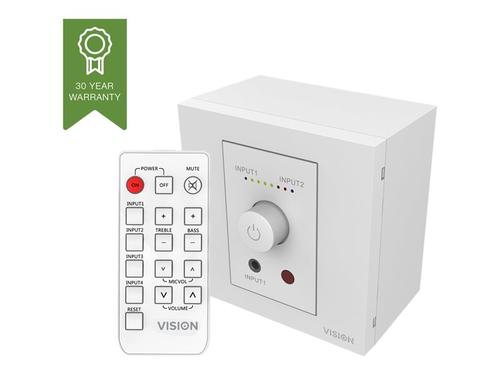

VISION Techconnect Faceplate Audio Amplifier with Speakers - LIFETIME WARRANTY - 2 x 25w (RMS @ 8 Ohms) - Two inputs (input 1 duplicated on front) - Remote control - comes on at preset level or resumes previous volume - UK surround and backbox included - comes with pair of 5.25 inch speakers in same carton - white
- Brand
- Vision
- Product code
- TC3-AMP+
- SKU
- ENR2T55QNPIWI
- EAN/GTIN
- 8468232000007
- Front panel input
- D-Class amplifier
- Power four speakers
- Preset memory
- Tactile dial
€273.47
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Front panel input

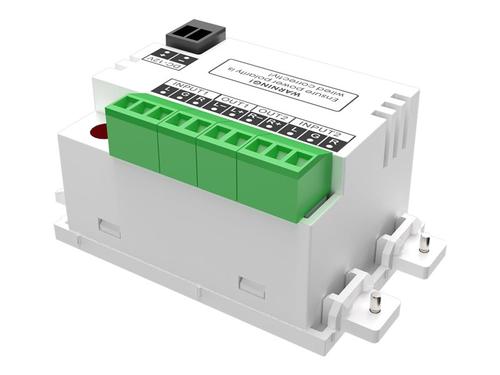

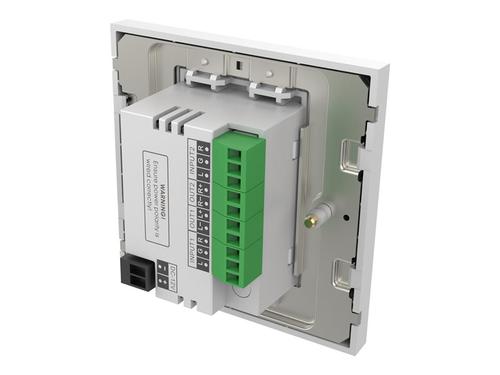

Two inputs are wired into the rear with removable phoenix connectors, but input 1 is also duplicated on the front panel with a mini-jack socket for convenience. This "half-normaled" input disconnects the rear terminal, while in use.D-class amplifier
Digital amplifiers use no power, unless they are amplifying program, so even on at full volume, unless it is receiving input, it is effectively off. Digital amplifiers also have the advantage of running cold, so a bulky heatsink is not necessary.Power four speakers
Don't let size deceive you:the Techconnect amp can drive into a high load, allowing you to power a few speakers.Preset memory
By default, when power is activated the Techconnect amp turns on and resumes the recent settings. For hospitality applications it can be set to return to a preset input and level whenever it is powered on - for example in hotel guest rooms.Tactile dial
A simple clear control interface makes the product easy to use long press on the dial to power on and off. Short press to change input.Specifications
General
Product type
Amplifier
Enclosure Colour
White
Audio System
Audio channels
Stereo
Functions
Amplifier
Amplifier Class
D
Audio Specifications
Amplifier - Response Bandwidth - 80 - 22000 Hz - SNR - 98 dB - THD - 1%
Output Channel Qty
2 channels
Output Power (per channel)
25 Watt
Output Power / Total
50 Watt
Amplifier Output details
25 Watt - 8 Ohm - 20 - 22000 Hz - THD 1% - 2 channels (main)
Features
Digital Amplifier
Connections
Connectors
2 x audio line-in (Phoenix-type) - rear Audio line-in (mini-phone stereo 3.5 mm) - front
Miscellaneous
Included Accessories

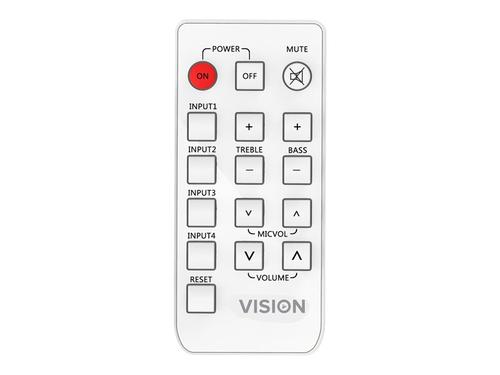

Remote control, 2 speaker cables (5 m), single-gang backbox, single-gang surround, 2 input cables (1.5 m)
Power
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
50 Watt
Manufacturer Warranty
Service & Support
Limited lifetime warranty
Dimensions & Weight
Width
4.2 cm
Depth
3.6 cm
Height
6.4 cm
Weight
63 g
Dimensions & Weight (Shipping)
Width (Shipping)
24 cm
Depth (Shipping)
6.3 cm
Height (Shipping)
20.5 cm
Weight (Shipping)
1.1 kg
