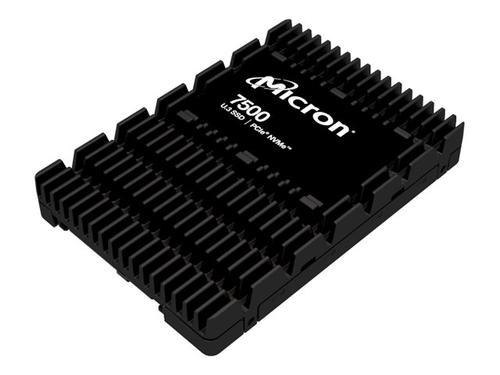

Micron 7500 PRO 15360GB U.3 TCG-Opal SSD
- Brand
- Micron
- Product code
- MTFDKCC15T3TGP-1BK1DABYYR
- SKU
- 5DXHPGYHZK2ML
- EAN/GTIN
- 649528941350
- SSD
- Read Intensive
- encrypted
- 15.36 TB
- internal
- 2.5"
- U.3 PCIe 4.0 (NVMe)
- 256-bit AES, 3072-bit RSA, 208-bit RSA
- TCG Opal Encryption 2.01
- Weight: 0.18 KG
The Micron 7500 SSD is an advanced mainstream PCIe Gen4 data center SSD and the first with 200+ layer NAND.
Description
Enhanced durability
With an MTBF of 2,000,000 hours, this Micron 7500 PRO solid state drive offers exceptional durability and reliability for read-intensive applications, ensuring long-term performance.
Advanced security
The drive incorporates multiple encryption algorithms, including 256-bit AES and 208-bit RSA, alongside FIPS 140-3 Level 2 certification, providing a secure environment for sensitive data.
Efficient power management
Optimized for energy efficiency, the drive consumes only 15. 5 W during sequential reads and 18. 3 W during writes, reducing operational costs and supporting eco-friendly operations.
High-speed performance
Leveraging the U. 3 PCIe 4. 0 (NVMe) interface, the Micron 7500 PRO delivers rapid data transfer rates, significantly enhancing system responsiveness and application loading times.
Comprehensive data protection
Features like End-to-end data protection, Enterprise Power-Loss Protection, and a Self-Encrypting Drive (SED) mechanism ensure your data remains safe and intact under various conditions.
| General | |
|---|---|
| Bytes per Sector | 512 |
| Hardware Encryption | Yes |
| Form Factor | 2.5" |
| Height | 15 mm |
| Device Type | Solid state drive - internal |
| Capacity | 15.36 TB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Interface | U.3 PCIe 4.0 (NVMe) |
| Features | NVM Express (NVMe) 2.0b, Micron Secure Encrypted Environment (SEE), Self-Encrypting Drive (SED), Key-Based Firmware Update, Strong Asymmetric Key Support, Digitally Signed Firmware, Surprise Insertion capable, Surprise Removal capable, Hot-Plug Support, field-upgradeable firmware, Firmware Activate without Reset, NVMe Management Interface (NVMe-MI) 1.2b, Dynamic and Static Wear Leveling, NVME Urgent Weighted Round Robin, End-to-end data protection, Enterprise Power-Loss Protection, Read Unrecoverable Bit Error Rate (UBER) 10e-18, Open Compute Project 2.0, S.M.A.R.T. |
| Encryption Algorithm | 256-bit AES, 3072-bit RSA, 208-bit RSA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 15.5 Watt (sequential read)18.3 Watt (sequential write) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| 4KB Random Write | 250000 IOPS |
| 4KB Random Read | 1100000 IOPS |
| SSD Endurance | 28032 TB |
| Average Latency | 15 μs |
| Drive Class | Read Intensive |
| Internal Data Rate | 7000 MBps (read) / 5900 MBps (write) |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^18 |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) |
