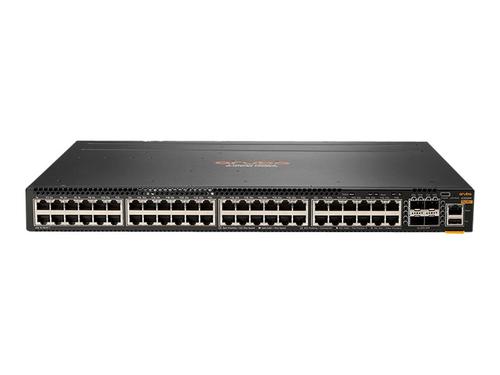

HPE Aruba 6300M
HPE Aruba 6300M - Switch - L3 - Managed - 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) - back to front airflow - rack-mountable - remarketed - TAA Compliant
- Brand
- Hewlett Packard Enterprise
- Product code
- JL762AR#ACC
- SKU
- KYCKEMOO9EVF1
- Automation and analytics
- Performance and power
- Smarter segmentation
€9017.39
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Automation and analytics
The Aruba CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.
Performance and power
The Aruba CX 6300 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.
Smarter segmentation
The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.
| General | |
|---|---|
| Device type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Back to front airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit / 25 Gigabit / 50 Gigabit SFP56 (uplink / stacking) |
| Performance | Switching capacity:496 Gbps Throughput:369 Mpps Latency (1 Gbps):2.28 µs Latency (10 Gbps):1.46 µs Latency (25 Gbps):1.9 µs Latency (50 Gbps):3.49 µs Stacking bandwidth:200 Gbps |
| Capacity | Switched virtual interfaces (SVIs):1024 IPv4 host table capacity:49152 IPv6 host table capacity:49152 IPv4 routes (Unicast):61000 IPv6 routes (Unicast):61000 IPv4 routes (Multicast):8192 IPv6 routes (Multicast):8192 IGMP groups:8192 MLD groups:8192 IPv4 ACL entries (ingress):20480 IPv6 ACL entries (ingress):5120 MAC ACL entries (ingress):20480 IPv4 ACL entries (egress):8192 IPv6 ACL entries (egress):2048 MAC ACL entries (egress):8192 |
| MAC Address Table Size | 32768 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, EGP, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI, SFTP |
| Encryption Algorithm | FIPS 140-2 |
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | DHCP support, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), LLDP support, fan tray, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), broadcast storm protection, Multicast Source Discovery Protocol (MSDP), Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, 2 fan tray slots, IP multicast, Bootstrap Router (BSR) Mechanism, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicast Storm protection, Microsoft Network Load Balancer (NLB) |
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1AX |
| Processor | 1 x ARM Cortex-A72:1.8 GHz |
| RAM | 8 GB DDR4 SDRAM |
| Flash memory | 32 GB |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 4 x 1Gbit/10Gbit/25Gbit/50Gbit SFP56 1 x USB-C 1 x management 1 x USB Type A |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Power Provided | 75 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Features | Power-to-port airflow |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, CNS 14336-1, IEC 60825-1:2007 Class 1, CISPR 32:2015+COR1:2016, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 55035:2017, EN 62368-1:2014+A11:2017, EN 55032:2015+AC:2016 Class A, IEC 62368-1:2014, CISPR 35:2016 Class A |
| Pricing Type | Remarketed |
| TAA Compliant | Yes |
| Localisation | English / United Kingdom |
| Dimensions & Weight | |
| Width | 44.2 cm |
| Depth | 38.5 cm |
| Height | 4.4 cm |
| Weight | 5.7 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 15 - 95% (non-condensing) |
