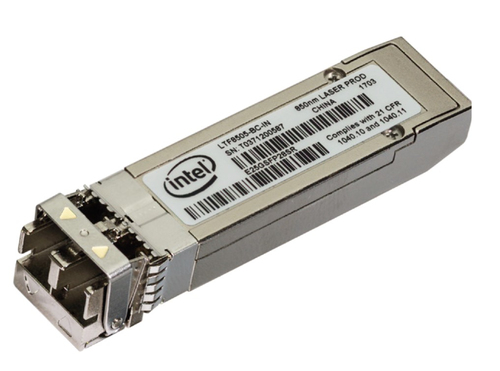

Intel Ethernet SFP28 Optics - SFP28 transceiver module - 10GbE, 25GbE - 10GBase-SR, 25GBase-SR - up to 100 m - 850 nm - for Ethernet Converged Network Adapter XXV710, XXV710-DA1, Ethernet Network Adapter XXV710-DA2
- Brand
- Intel
- Product code
- E25GSFP28SR
- SKU
- PYR174345ZG6K
- SFP28 Fiber optic 25000 Mbit/s
- Wavelength: 850 nm
- Power consumption (typical): 1.2 W
Product Info
Intel® Ethernet SFP28 Optics are available for customers who would like to deploy Intel® Ethernet Network Adapters with an SFP28 optic. The Intel® Ethernet Network Adapter XXV710 with SFP28 connectivity delivers a proven, reliable solution for deployments of high density Ethernet.
The Intel® Ethernet Network Adapter XXV710 supports SFP28 connectors enabling customers to have network connections via either direct attach Twinax copper cables, or SR and LR optical modules. The Intel® Ethernet Network Adapter XXV710 has all the server and network virtualization capabilities of the Intel® Ethernet 700 Series adapters but
at 25GbE speed. With 25GbE backward compatibility to 10GbE, it provides a natural upgrade migration path for those customers who need more bandwidth.
Intel supports the ability to use Intel® Ethernet SFP28 Optics, Intel® Ethernet SFP28 Twinaxial Cables, or Intel® Ethernet QSFP28-to-SFP28 Twinaxial Breakout Cables. This helps customers create the configuration that best meets the needs of their data center environment, while ensuring compatibility.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 25000 Mbit/s |
| Interface type | SFP28 |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Wavelength | 850 nm |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Features | |
| Product colour | Silver |
| Status | Launched |
| ARK ID | 121506 |
| Power | |
| Power consumption (typical) | 1.2 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Packaging data | |
| Number of products included | 1 pc(s) |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
| Other features | |
| Launch date | Q1'17 |
| Product series | Intel® Ethernet SFP28 Optics |
