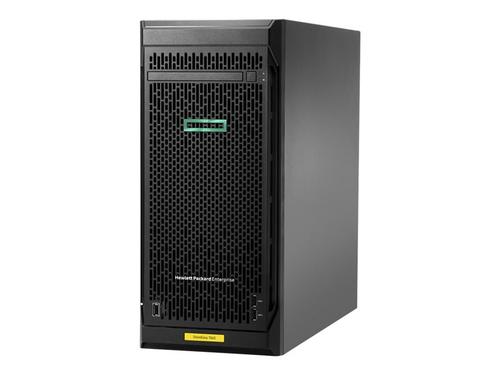

HPE StoreEasy 1560 - NAS server - 4 bays - 16 TB - rack-mountable - SATA 6Gb/s / SAS 12Gb/s - HDD 4 TB x 4 - RAID RAID 0, 5, 10, 0+1 - RAM 16 GB - Gigabit Ethernet - iSCSI support - 4.5U
- Brand
- Hewlett Packard Enterprise
- Product code
- R7G20B
- SKU
- D0GYZSIL1GTPJ
- EAN/GTIN
- 190017618814
- 2x as simple to manage through a brand-new, intuitive management console developed by Hewlett Packard Enterprise
- Built from the world’s most secure industry-standard servers with expanded security capabilities to help you protect your employees, customers, and organization in an evolving threat landscape
- Lower cost-capacity expansion with up to 60% greater internal capacity through larger drives and more drive slots
- Up to 2x better performance than the previous generation and up to 50% lower latency with flash cache for resource-intensive workloads
Description
Customized and tailored for file storage
HPE StoreEasy 1000 Storage is built on industry-leading HPE ProLiant Gen10 DNA and comes with pre-configured hardware and Microsoft Windows Storage Server 2016 OS. Get your NAS out of the box and online fast with tools that simplify installation and curb common configuration errors. Cutting management efforts in half and overhauling user experience, years of HPE design and development experience built the new management console for the sixth-generation HPE StoreEasy 1000. This laid the foundation for a more modern and agile approach for monitoring and managing file storage. The web-based management UI and its REST API enables administrators with any level of storage expertise to simplify core operations, including management of file shares, quotas, volumes, snapshots, and storage pools. Economical hard disk drive (HDD) bundles make it easier for you to buy, deploy and provision additional storage capacity as your data needs grow using guided configurations. Quickly configure low-capacity email alerts to reduce disruption caused by capacity limitations.
Efficiency saves you time and money
Achieve an average of 50 percent space savings with granular data deduplication and compression. An enhanced deduplication engine supports large files, up to 1 TB, and volumes up to 64 TB. Built-in file sync and share enables employees, mobile workers and distributed teams to access their work files from any internet-connected desktop, smartphone, or tablet. Organizations can apply policies to wipe devices remotely and enforce lock screen passwords to protect data on employee devices. Advanced data management capabilities automatically improve use of resources, comply with data retention policies, and enhance protection of sensitive files, even if they're downloaded from HPE StoreEasy and emailed to unauthorized recipients.
Multi-dimensional protection for your data
HPE StoreEasy 1000 Storage protects data while at rest with file system encryption and with Microsoft BitLocker drive encryption, while it is being transferred with SMB encryption and signing, and at a physical drive level with a lockable bezel for multi-dimensional file data security. HPE StoreEasy 1000 provides additional layers of protection as standard through device integrity checks with Trusted Platform Module, digitally signed firmware on network adapters and drives, and runtime firmware validation every 24 hours via HPE iLO Advanced Premium Security Edition. File Classification Infrastructure can dynamically identify files based on sensitivity and implement sophisticated access controls based on your organization's requirements using Active Directory Rights Management Services. Install and run endpoint protection such as antivirus on the system itself, which reduces the cost and complexity of connecting an external endpoint protection server. Prevent against data loss with Volume Shadow Copy Service online snapshots and simple cloud backup to Microsoft Azure.
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 4.5U |
| Total storage capacity | 16 TB |
| Max Supported Capacity | 64 TB |
| Installed Devices / Modules Qty | 4 (installed) / 4 (max) |
| Width | 19.5 cm |
| Depth | 49.4 cm |
| Height | 44 cm |
| Weight | 25 kg () |
| Processor / Memory | |
| Processors Installed | 1 x Intel Xeon Bronze 3204 1.9 GHz |
| Number of Cores | 6-core |
| Max Supported Qty | 2 |
| RAM | 16 GB (installed) / 96 GB (supported) - DDR4 - 2933 MHz |
| Features | Registered, HPE SmartMemory |
| Storage Controller | |
| Type | RAID |
| Interface type | SATA 6Gb/s / SAS 12Gb/s |
| Storage Controller Name | HPE Smart Array S100i |
| RAID Level | RAID 0, RAID 5, RAID 10, RAID 0+1 |
| Hard drive | |
| Type | HDD - hot-swap - 3.5" LFF |
| Capacity | 4 x 4 TB |
| Interface type | SATA 6Gb/s |
| Data transfer rate | 600 Mbps |
| Spindle Speed | 7200 rpm |
| Features | Midline |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Network Services Compatibility | DNS, DHCP, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Server Message Block 2.0 (SMB 2.0) |
| Expansion / Connectivity | |
| Expansion Bays | 4 (total) / 0 (free) x hot-swap - 3.5" LFF |
| Expansion slots | 1 (total) / 1 (free) x PCI Express 3.0 x16 (three-quarter-length, full-height) 3 (total) / 2 (free) x PCI Express 3.0 x8 (half-length, full-height) 1 (total) / 1 (free) x PCI Express 3.0 x16 (full-length, full-height) 2 (total) / 1 (free) x CPU 6 (total) / 5 (free) x DIMM 288-pin |
| Interfaces | 2 x Ethernet 1000Base-T - RJ-45 1 x HPE iLO 2 x USB 3.0 1 x VGA 1 x HPE iLO (management) 1 x USB 2.0 |
| Miscellaneous | |
| Features | Lockable, TPM support |
| Compliant Standards | WEEE 2002/95/EC |
| Included Accessories | 2 x non hot-plug redundant fans |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 100-120/200-240 V (50/60 Hz) |
| Power Provided | 500 Watt |
| 80 PLUS certification | 80 PLUS Platinum |
| Software / System Requirements | |
| Storage Operating System | Microsoft Windows Storage Server IoT 2019 Standard |
| Software included | HPE iLO Advanced Premium Security Edition with 1 Year Support, HPE StoreEasy Management Console |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labour - 3 years - on-site - response time:next business day Limited warranty - software - 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 10 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Sound Emission | 25.1 dBA |
