C2G USB-C 11-in-1 Hybrid DisplayLink and DP Alt Mode Triple 4K Docking Station with HDMI, DisplayPort, Ethernet, USB, 3.5mm Audio and Power Delivery up to 100W - Docking station - USB-C / Thunderbolt 3 - HDMI, DP - GigE - 130 Watt
- Brand
- C2G
- Product code
- C2G54538
- SKU
- LQ8NP3JXYWC4B
- Supports single 4K 60Hz, dual 4K 60Hz, or triple 4K 30Hz video output, for viewing Ultra HD content
- Battery labeled front USB-A and USB-C ports support BC 1.2 for enhanced mobile charging and quick data transferring up to 10Gbps
- Hard wired Ethernet port for when security requires it or when WiFi™ is not available
Product Info
The USB-C® Hybrid Triple 4K Display Docking Station with DisplayLink and DP Alt Mode transforms USB-C enabled laptops into total desktop solutions through a single USB-C connection – allowing them to have more video outputs, more connected peripherals, and quick data transfers, all while keeping the laptop charged and ready to go.
This docking station supports crisp, high definition images and video when connecting one, two, or three 4K displays. When connecting to the HDMI port labeled “DP Alt Mode”, be sure that the connected laptop supports DP alt mode. The front USB-A and USB-C 3.2 Gen 2 ports support BC 1.2 for quick mobile device charging and data transferring up to 10Gbps, while the two USB-A Gen 1 ports on the rear support 5Gbps data transfers. The Ethernet port allows for reliable internet connectivity with file transfer speeds up to 1000Mbps.

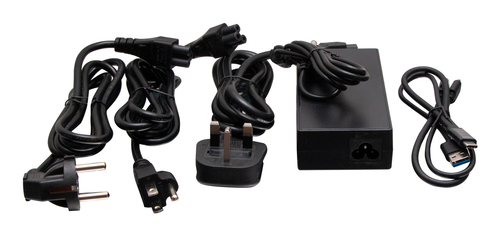

The included 130W power supply keeps the connected laptop charged and ready to go with 100W power delivery while supporting connected devices, such as keyboards, mice, portable hard drives, and other peripherals. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. Laptops or tablets that require more than 100W may charge at lower speeds.
The USB-C Hybrid Triple 4K Display Docking Station maximizes desktop space while providing a single cable solution for Windows, Mac OS devices (including M1 and M1X), and Chrome OS.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| DC-in jack | Yes |
| HDCP | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 10 Gbit/s |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Country of origin | China |
| Power | |
| Power source type | DC |
| AC input voltage | 100 - 240 V |
| Power supply | 130 W |
| Output voltage | 24 V |
| Output current | 4 A |
| Compatible power plug types | EU, UK, US |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width | 191 mm |
| Depth | 85 mm |
| Height | 31.8 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | USB Type-A to USB Type-C, USB Type-C to USB Type-C |
| AC adapter included | Yes |
| Manual | Yes |
| Technical details | |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
