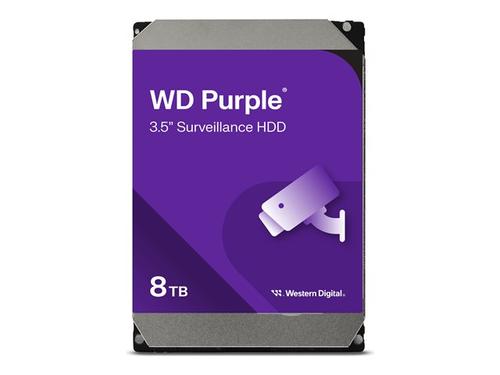

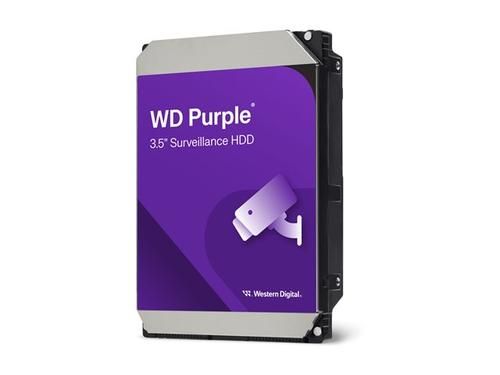

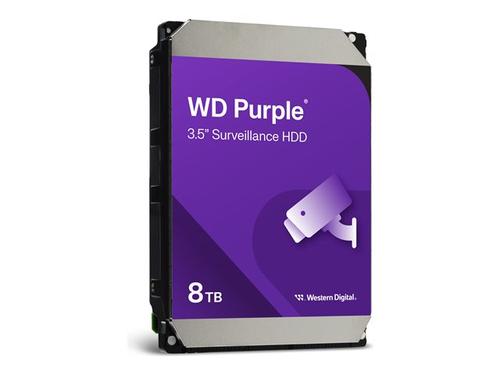

WD Purple WD85PURZ - Hard drive - 8 TB - internal - 3.5" - SATA 6Gb/s - 5640 rpm - buffer: 256 MB
- Brand
- Western Digital
- Product code
- WD85PURZ
- SKU
- IAS3T8QRVYK02
- EAN/GTIN
- 718037889245
- Hard drive
- 8 TB
- internal
- 3.5"
- SATA 6Gb/s
- 5640 rpm
- buffer: 256 MB
- Weight: 0.70 KG
Product Info
WD Purple drives are designed to meet the challenges of 24x7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that's tested for compatibility in a wide range of security systems. Exclusive AllFrame technology helps reduce frame loss and improve overall video playback.
Description
Exclusive AllFrame technology
All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback.
Enhanced workload ratings
WD Purple drives feature a workload to handle the unique demands of mainstream video surveillance DVR and NVR systems.
Designed for surveillance solutions
WD Purple drives are engineered for mainstream surveillance DVRs and NVRs that operate 24/7. With tarnish-resistant components and support in storage systems with more than eight drive bays, WD Purple drives deliver reliable operation even in harsh environments.
Wide compatibility, seamless integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system.
| General | |
|---|---|
| Buffer Size | 256 MB |
| Form Factor | 3.5" |
| Width | 101.6 mm |
| Depth | 147 mm |
| Weight | 720 g |
| Height | 26.1 mm |
| Capacity | 8 TB |
| Device Type | Hard drive - internal |
| Interface | SATA 6Gb/s |
| Features | Advanced Format technology, surveillance system compatible, AllFrame 4K, tarnish-resistant |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | BSMI, ICES-003, NMB-003, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB Scheme, TUV, UL |
| Power | |
| Power Consumption | 6.2 Watt (read/write)5.5 Watt (idle)0.4 Watt (standby)0.4 Watt (sleep) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 30 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 215 MBps |
| Spindle Speed | 5640 rpm |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^14 |
| Load / Unload Cycles | 300,000 |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
