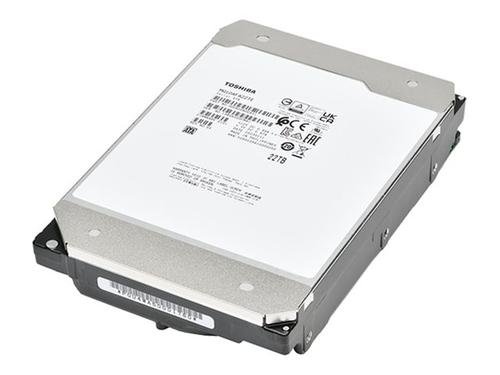

Toshiba MG10F Series MG10AFA22TE - Hard drive - 22 TB - internal - 3.5" - 7200 rpm - buffer: 512 MB
- Brand
- TOSHIBA HDD
- Product code
- MG10AFA22TE
- SKU
- IH1MOERSBA1CQ
- EAN/GTIN
- 4260557512760
- Hard drive
- 22 TB
- internal
- 3.5"
- 7200 rpm
- buffer: 512 MB
- Weight: 0.72 KG
Product Info
The Toshiba MG10F Series hard drive is designed to meet the high-capacity storage needs of today's demanding data environments. With a 22 TB capacity, it offers ample space for large-scale data storage, while the helium sealed-drive design ensures durability and quieter operation. This hard drive is built for 24x7 operation, featuring a 512 MB buffer size and a spindle speed of 7200 rpm, making it capable of handling heavy-duty workloads up to 550 TB per year and Online Transaction Processing (OLTP). The advanced format 512e and conventional magnetic recording (CMR) technology further enhance its performance and reliability.
Energy efficiency is a key aspect of the MG10AFA22TE model, with an active idle power consumption of just 4.5 W and an active typical mode of 8.38 W, helping to reduce operational costs. Additionally, the drive's robust design is evidenced by a MTBF of 2,500,000 hours and advanced shock and vibration tolerance, ensuring it can withstand the rigors of continuous operation. Whether for business or personal use, the Toshiba MG10F Series hard drive is a reliable and efficient solution for your storage needs.
Description
Robust design
The helium sealed-drive design not only enhances the durability of the Toshiba MG10F Series but also ensures a quieter operation with a sound emission of just 20 dBA, making it an excellent choice for noise-sensitive environments.
High capacity storage
With a massive 22 TB capacity and a data transfer rate of 6 Gbit/s, this hard drive meets the demands of extensive storage requirements, ensuring your data is always accessible when you need it.
Reliable performance
Equipped with a 512 MB buffer size and a spindle speed of 7200 rpm, the MG10AFA22TE model delivers efficient and reliable performance for both heavy-duty workloads up to 550 TB per year and Online Transaction Processing (OLTP).
Energy efficient
The drive's power consumption is optimized for efficiency, with an active idle mode consuming only 4. 5 W and an active typical mode at 8. 38 W, reducing operational costs.
Enhanced durability
Designed to withstand the rigors of continuous operation, this hard drive boasts a MTBF of 2,500,000 hours, along with advanced shock and vibration tolerance, ensuring long-term reliability.
| General | |
|---|---|
| Buffer Size | 512 MB |
| Form Factor | 3.5" |
| Weight | 720 g |
| Capacity | 22 TB |
| Device Type | Hard drive - internal |
| Width | 10.185 cm |
| Depth | 14.7 mm |
| Height | 2.61 mm |
| Features | Conventional magnetic recording (CMR), workload up to 550 TB per year, Helium Sealed-Drive Design, Online Transaction Processing (OLTP), advanced format 512e |
| Power | |
| Power Consumption | 4.5 Watt (active idle)8.38 Watt (active (typical)) |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 55 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Sound Emission | 20 dBA |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Shock Tolerance (non-operating) | 200 g @ 2 ms |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Shock Tolerance (operating) | 5 g @ 2 ms |
| Performance | |
| Spindle Speed | 7200 rpm |
| Internal Data Rate | 271 MBps |
| Drive Transfer Rate | 6 Gbit/s (external) |
| Reliability | |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 10 per 10^16 |
| Load / Unload Cycles | 600,000 |
| MTBF | 2,500,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
