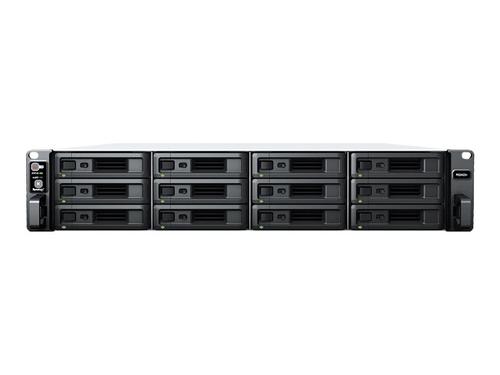

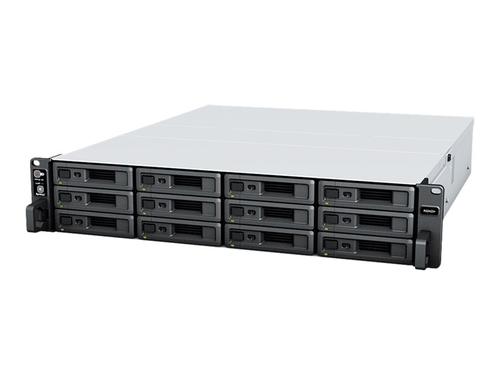

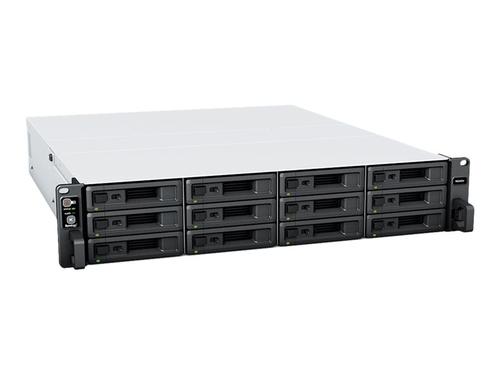

RS2423+ 12 bay NAS + 12pcs Synology 6TB HDD
- Brand
- Synology
- Product code
- RS2423++12XHAT33006TB
- SKU
- 6DUIMQ3PICNRS
- Faster and more responsive
- Designed for reliability
- Room for expansion
- Versatile storage for businesses
- Intuitive storage for on-site and remote teams
- Multi-endpoint data protection
- Smart and scalable surveillance
Description
Faster and more responsive
The RS2423+ offer exceptional performance. They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
Designed for reliability

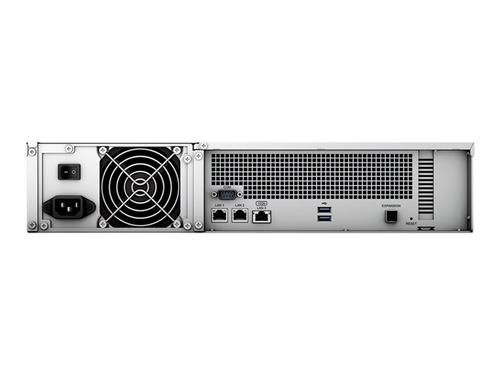

The RS2423+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Room for expansion
Easily adjust the 2U 12-bay RS2423+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Versatile storage for businesses
The RS2423+ are ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.
Intuitive storage for on-site and remote teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.
Smart and scalable surveillance
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total storage capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Width | 48.2 cm |
| Depth | 55.2 cm |
| Height | 8.8 cm |
| Weight | 11.5 kg () |
| Processor / Memory | |
| Processors Installed | 1 x AMD Ryzen V1780B 3.35 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 3.6 GHz |
| RAM | 8 GB (installed) / 32 GB (supported) - DDR4 |
| Features | Unbuffered, ECC |
| Storage Controller | |
| Type | RAID |
| Interface type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
| Networking | |
| Data Link Protocol | 1GbE, 10GbE |
| Network / Transport Protocol | PPTP, L2TP, HTTP, HTTPs, OpenVPN |
| Remote Management Protocol | SNMP, SSH |
| Network Services Compatibility | Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), SFTP, Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1) |
| Features | Firewall protection, LDAP support, wake on LAN (WOL), Access Control List (ACL) support, DLNA Media Server, VPN Server, Link Aggregation, failover protection, B-tree file system (Btrfs), EXT4 file system, SSD trim, RAID migration, MailPlus server, Rsync compatible, Synology Hybrid RAID, wake on WAN (WOW), Let's Encrypt, NFS Kerberos authentication, SSD read-write cache, shared folder encryption, SMB encryption, login auto block |
| Encryption Algorithm | SSL, TLS, AES-NI |
| Security DVR | |
| IP Cameras Supported | 50 |
| Compression Format | H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160 |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion slots | 2 (total) / 1 (free) x DIMM 288-pin 1 (total) / 1 (free) x PCI Express 3.0 x8 (x4 mode) |
| Interfaces | 2 x Ethernet 1000Base-T 1 x Ethernet 10Gb - RJ-45 2 x USB 3.2 Gen 1 1 x management |
| Miscellaneous | |
| Features | Built-in 3 cooling fans, Citrix Ready, scheduled power on/off, power recovery |
| Compliant Standards | UL, VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM, UKCA |
| Included Accessories | Accessory pack, power cable |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 119.95 Watt |
| Power Provided | 500 Watt |
| Software / System Requirements | |
| Storage Operating System | Synology DiskStation Manager |
| Software included | McAfee AntiVirus (Trial) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 52.3 dBA |
