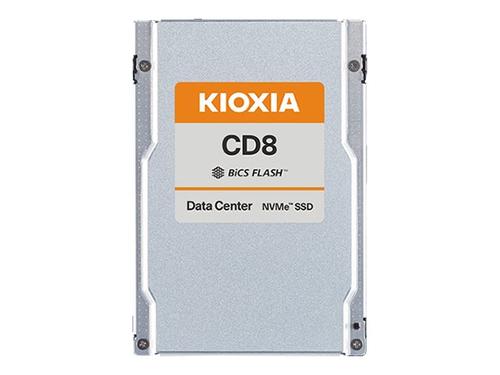

KIOXIA CD8-R Series KCD8XRUG1T92 - SSD - Read Intensive - 1920 GB - data centre SSD - internal - 2.5" - PCIe 4.0 x4 (NVMe)
- Brand
- KIOXIA SSD
- Product code
- KCD8XRUG1T92
- SKU
- 92DP1JJAH1PKB
- EAN/GTIN
- 8592978480257
- SSD
- Read Intensive
- 1920 GB
- data centre SSD
- internal
- 2.5"
- PCIe 4.0 x4 (NVMe)
- Weight: 0.10 KG
Product Info
The CD8-R Series is a read-intensive data center NVMe SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage big capacity in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Description
Enhanced durability
Built to withstand 24x7 operation in data center environments, the KIOXIA CD8-R Series SSD offers a robust solution for continuous data processing. Its endurance is further supported by a high MTBF of 2,500,000 hours, ensuring reliability and longevity.
High-speed performance
With an internal data rate of up to 7200 MBps for reading and 3500 MBps for writing, coupled with a maximum 4KB random read of 1,250,000 IOPS and write of 150,000 IOPS, this SSD delivers swift and efficient data handling for read-intensive applications.
Advanced data protection
Features like End-to-end data protection, Sanitize Instant Erase (SIE), and power loss data protection provide a secure environment for your data, minimizing the risk of data loss and ensuring data integrity across all operations.
Efficient power management
The KIOXIA CD8-R Series SSD balances performance with efficiency, featuring a typical active power consumption of 13 W and an idle mode that reduces power usage to 5 W, optimizing energy use in data centers.
| General | |
|---|---|
| Form Factor | 2.5" |
| Weight | 130 g |
| Height | 15 mm |
| Width | 69.85 mm |
| Device Type | Solid state drive - internal |
| Capacity | 1920 GB |
| Depth | 100.45 mm |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | 112-layer 3D BiCS FLASH, Sanitize Instant Erase (SIE), power loss data protection, End-to-end data protection |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Power | |
| Power Consumption | 13 Watt (active (typical))5 Watt (idle) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Humidity Range Operating | 5 - 95% RH |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-800 Hz |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| Maximum 4KB Random Write | 150000 IOPS |
| Drive Class | Read Intensive |
| Maximum 4KB Random Read | 1250000 IOPS |
| Internal Data Rate | 7200 MBps (read) / 3500 MBps (write) |
| Reliability | |
| 24x7 Operation | Yes |
| MTBF | 2500000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 2.5" |
| Interfaces | 1 x PCI Express 4.0 (NVMe1.4) |
