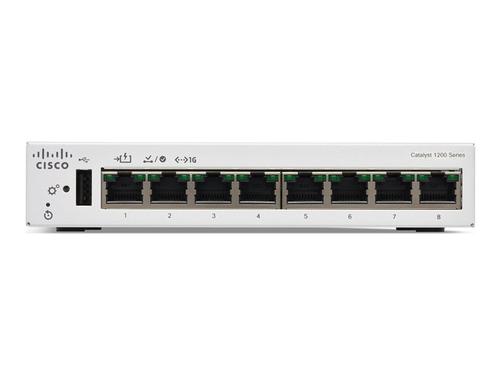

Cisco Catalyst 1200-8T-D
Cisco Catalyst 1200-8T-D - Switch - gigabit ethernet - L3 - smart - 8 x 10/100/1000 - desktop - PoE (67 W)
- Brand
- Cisco
- Product code
- C1200-8T-D
- SKU
- DTROG3OOAM0IP
- EAN/GTIN
- 889728521802
- 8 high-speed Ethernet ports for comprehensive connectivity
- Supports Power over Ethernet (PoE) to streamline device deployment
- Advanced security features including RADIUS authentication and SSL encryption
- Flexible management options with CLI, SNMP, and RMON support
- Designed for durability with a mean time between failures (MTBF) of over 3 million hours
€146.27
(Inc. VAT)
(Delivery 2-4 working days)
Description
SWITCH PORTS
8 ports 10/100/1000
SIMPLE
Intuitive Cisco Business mobile app, local web interface and Cisco Business Dashboard allows you to set up, manage and monitor the switch, with step-by-step instructions to install and configure your network in minutes – no IT expertise required
SECURITY
Integrated with IEEE 802.1X port security to control access to your network, denial-of-service (DoS) attack prevention increases network uptime during an attack, while access control lists (ACLs) protect the network from unauthorised users
ENERGY EFFICIENT
Optimises power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
PERFECT FOR SMALL BUSINESS
Requires no subscription or licences to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support
| General | |
|---|---|
| Device type | Switch - 8 ports - L3 - smart |
| Enclosure Type | Desktop |
| Ports | 8 x 10/100/1000 |
| Power over Ethernet (PoE) | PoE |
| PoE Budget | 67 W |
| Performance | Forwarding rate (64-byte packets):11.90 Mpps Switching capacity:16 Gbps |
| Capacity | MSTP instances:8 PVST+ instances:126 RPVST+ instances:126 Link aggregation groups:4 Link aggregation ports:8 Active VLANs:255 IGMP multicast groups:255 IPv4 routes (static):32 IPv4 interfaces:16 ACL rules:512 Priority queues:8 Packet buffer size:1.5 MB |
| MAC Address Table Size | 8000 entries |
| Jumbo Frame Support | 9000 bytes |
| Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
| Encryption Algorithm | SSL |
| Authentication method | RADIUS |
| Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, fanless, DHCP relay, Port Security, SNMP trap, DHCP client, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, Energy-Efficient Ethernet (EEE), TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, MSTP support, TFTP support, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Processor | X ARM:1.4 GHz |
| RAM | 1 GB DDR4 SDRAM |
| Flash memory | 512 MB |
| Status Indicators | System, PoE, link/activity/speed |
| Expansion / Connectivity | |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 1 x console RJ-45 |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Miscellaneous | |
| Included Accessories | Mounting kit, pointer card |
| MTBF | 3,277,956 hours |
| Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
| Dimensions & Weight | |
| Width | 16 cm |
| Depth | 12.8 cm |
| Height | 3 cm |
| Weight | 540 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime - response time:next business day Technical support - return to factory - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% RH (non-condensing) |
