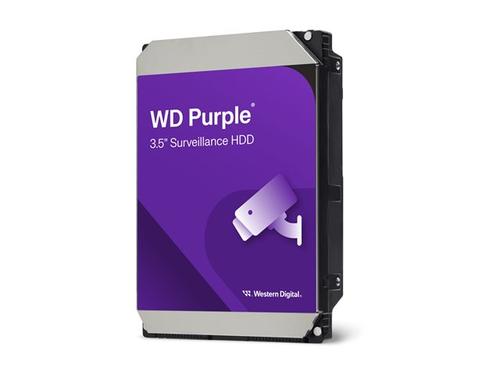

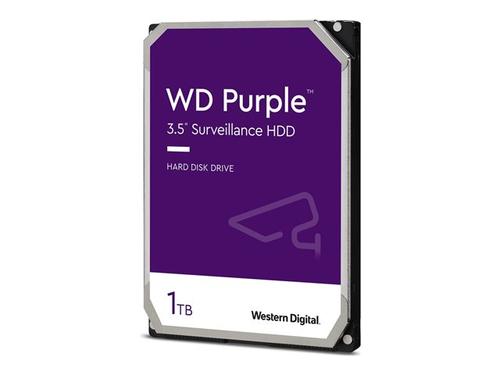

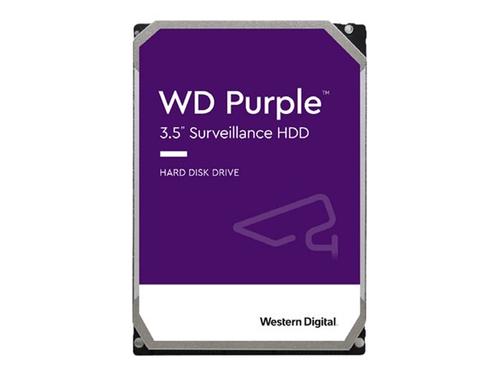

WD Purple WD11PURZ - Hard drive - 1 TB - internal - 3.5" - SATA 6Gb/s - buffer: 64 MB
- Brand
- Western Digital
- Product code
- WD11PURZ
- SKU
- 80AZSKAEDSS84
- EAN/GTIN
- 718037896687
- Hard drive
- 1 TB
- internal
- 3.5"
- SATA 6Gb/s
- buffer: 64 MB
- Weight: 0.46 KG
Product Info
WD Purple drives are designed to meet the challenges of 24 x 7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that's tested for compatibility in a wide range of security systems. Exclusive WD AllFrame technology helps reduce frame loss and improve overall video playback.
Description
Large storage, surveillance you can trust
Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always on surveillance systems so you can rely on quality video when you need it most.
Western digital's exclusive WD AllFrame technology
All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback.
Enhanced workload ratings
WD Purple drives feature a workload rating of up to 180 TB/year - up to three times that of desktop drives - to handle the unique demands of mainstream video surveillance DVR and NVR systems.
Multiple cameras, multiple streams
Modern recorders now support multiple video streams per camera. WD Purple drives support up to 64 single-stream HD cameras. Modern recorders now support multiple video streams per camera.
Designed for reliable operation
Engineered for reliability with an MTBF of up to 1 million hours, WD Purple drives feature tarnish-resistant components and support for storage systems with up to 16 drive bays. WD Purple hard drives are designed with RAID error recovery control to help reduce failures in supported video recorders.
| General | |
|---|---|
| Buffer Size | 64 MB |
| Form Factor | 3.5" |
| Weight | 450 g |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Capacity | 1 TB |
| Device Type | Hard drive - internal |
| Interface | SATA 6Gb/s |
| Features | Advanced Format technology, Conventional magnetic recording (CMR), support up to 64 cameras, AllFrame, tarnish-resistant |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS 2 (2011/65/EU) |
| Power | |
| Power Consumption | 3.8 Watt (read/write)3.2 Watt (idle)0.3 Watt (standby)0.3 Watt (sleep) |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Shock Tolerance (operating) | 30 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Performance | |
| Internal Data Rate | 180 MBps |
| Drive Transfer Rate | 600 MBps (external) |
| Seek Time | 26 ms (average) |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^14 |
| Load / Unload Cycles | 300,000 |
| MTBF | 1,000,000 hours |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s - 7 pin Serial ATA |
