Synology Disk Station DS223J - NAS server - SATA 6Gb/s - RAID RAID 0, 1, JBOD - RAM 1 GB - Gigabit Ethernet - iSCSI support
- Brand
- Synology
- Product code
- DS223J
- SKU
- QDPGFJB8GKNQ4
- EAN/GTIN
- 4711174724765
- Centralized data storage
- Next-generation file system
- Secure sharing and syncing
- Simple data protection
- Versatile camera surveillance
Description
Multi-platform file access
Stay productive while working in a team or with your clients. Work together across different platforms using Synology Office.
Real-time collaboration
Keeping data synced between different sites has never been easier. Synology Drive ShareSync keeps files and folders synchronized across Synology systems.
Sync across sites
Sync files between your private cloud and public cloud storage platforms, including Google Drive, Dropbox, Microsoft OneDrive, and more with Synology Cloud Sync. Retain local copies of your cloud data to centralize management and achieve data ownership.
Seamless synchronization to clouds
The advanced Btrfs file system helps safeguard data against corruption through file self-healing and allows for the reversal of unintentional or malicious changes through fast snapshot technology.
Store, share, and protect
Configure your DS223j to manage all your documents, photos, and other files, or protect your physical assets with professional video surveillance.
Built for sharing
DS223j is designed for small teams to share, sync, and collaborate more efficiently.
Multi-platform file access
Manage your files and media from anywhere with Synology Drive. Available on PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser.
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet |
| Max Supported Capacity | 108 TB |
| Width | 10 cm |
| Depth | 22.55 cm |
| Height | 16.5 cm |
| Weight | 880 g () |
| Processor / Memory | |
| Processors Installed | 1 x Realtek Semiconductor RTD1619B 1.7 GHz |
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| RAM | 1 GB DDR4 |
| Storage Controller | |
| Type | RAID |
| Interface type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, JBOD |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Network / Transport Protocol | iSCSI, FTP, SMB, NFS, HTTP, HTTPs, SMB v2, SMB v3, CIFS |
| Remote Management Protocol | SNMP, HTTP, HTTPS, LDAP |
| Network Services Compatibility | Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1) |
| Performance | Maximum volume size:108 TB Maximum number of volume:64 Maximum concurrent connections:200 Local user account:1024 Local group account:256 Maximum number of shared folder:256 Maximum number of shared folders syncing tasks:4 Hybrid share folder number:5 Syslog:400 events per second |
| Features | Hardware encryption, wake on LAN (WOL), Access Control List (ACL) support, VPN Server, B-tree file system (Btrfs), USB One Touch Copy, EXT4 file system, SSD trim, wake on WAN (WOW), NFS Kerberos authentication, cloud sync |
| Compliant Standards | DLNA CERTIFIED |
| Security DVR | |
| IP Cameras Supported | 12 |
| Compression Format | H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160 |
| Expansion / Connectivity | |
| Expansion Bays | 2 (total) / 2 (free) x hot-swap - 2.5" / 3.5" |

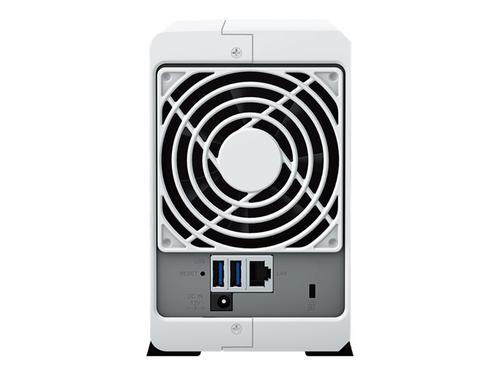

| Interfaces | 3 x USB 3.2 Gen 1 - Type A 1 x Ethernet 1000Base-T - RJ-45 |
| Miscellaneous | |
| Cables included | 1 x network cable |
| Features | 92mm cooling fan |
| Compliant Standards | VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM, UKCA |
| Included Accessories | Accessory pack, power cable |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 16.31 Watt |
| Power Consumption Stand by | 4 Watt |
| Power Provided | 60 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 18.2 dBA |
