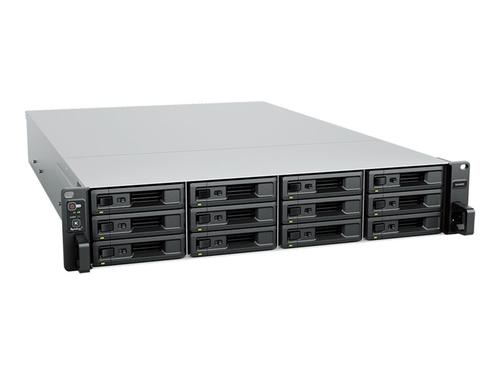

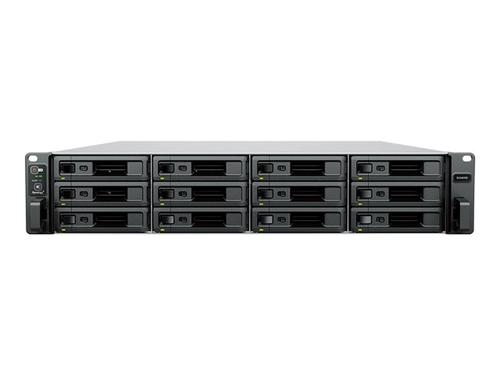

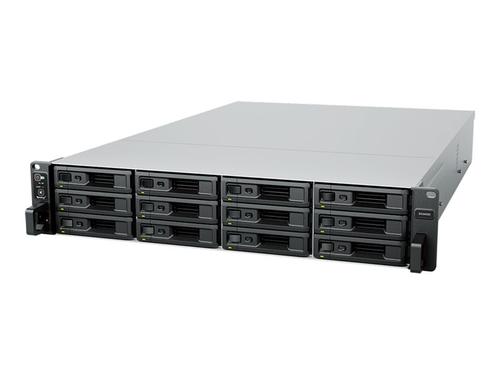

Synology SA3400D
Synology SA3400D - NAS server - 12 bays - rack-mountable - SAS - RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare, 1 hot spare, RAID F1, F1 hot spare - RAM 16 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support - 2U
- Brand
- Synology
- Product code
- SA3400D
- SKU
- VA0CAJI9WE27E
- EAN/GTIN
- 4711174725212
- Built-in high availability
- Made for demanding environments
- Consolidate your data infrastructure
- Flexible options to meet changing needs
€12217.13
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Built-in high availability
Keep file sharing services, block storage, backups, and other office applications online with automatic minute-level failover. Defend against operational disruptions with two independent and hot-swappable controllers operating in an active-passive configuration.
Made for demanding environments
The SA3400D is engineered to provide outstanding performance in both NAS and SAN storage roles. Its throughput and random I/O performance support efficient SMB and NFS file serving as well as a range of iSCSI and Fiber Channel block storage applications.
Consolidate your data infrastructure
Manage, protect, and share data with versatile business solutions. Empower team collaboration, sandbox applications, and provide VM storage on a unified platform.
Flexible options to meet changing needs
Flexibly scale storage capacity, optimize I/O performance, and meet different network needs with a range of expansion options.
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 2U |
| Total storage capacity | 0 GB |
| Storage Capacity Details | Single volume size:108 TB |
| Max Supported Capacity | 576 TB |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Width | 48.2 cm |
| Depth | 72.4 cm |
| Height | 8.8 cm |
| Weight | 19.7 kg () |
| Built-in Devices | Led panel |
| Localisation | Danish, Hungarian, Czech, Thai, Chinese (traditional), Chinese (simplified), Brazilian Portuguese, English, German, French, Italian, Portuguese, Polish, Swedish, Russian, Spanish, Dutch, Turkish, Japanese, Korean |
| Processor / Memory | |
| Processors Installed | 2 x Intel Xeon D-1541 2.1 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 2 |
| Max Turbo Speed | 2.7 GHz |
| RAM | 16 GB (installed) / 128 GB (supported) - DDR4 |
| Features | ECC |
| Storage Controller | |
| Type | 2 x RAID |
| Interface type | SAS |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare, RAID 1 hot spare, RAID F1, RAID F1 hot spare |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Remote Management Protocol | SNMP, LDAP |
| Network Services Compatibility | Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV), Server Message Block 2.0 (SMB 2.0), Server Message Block 3.0 (SMB 3.0), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Network File System v4.1 (NFS v4.1) |
| Performance | Maximum number of volume:64 Maximum concurrent connections:1200 Local group account:512 Local user account:16000 Maximum number of shared folders:512 Maximum number of shared folders syncing tasks:32 Hybrid share folder number:30 Syslog:3000 events per second |
| Features | Hardware encryption, High Availability, Access Control List (ACL) support, VPN Server, OpenStack compatible, B-tree file system (Btrfs), EXT4 file system, SSD trim, RAID migration, NFS Kerberos authentication, SSD read-write cache, RAID Group, data & folder backup, entire system backup |
| Encryption Algorithm | AES-NI |
| Security DVR | |
| IP Cameras Supported | 100 |
| Compression Format | H.264, H.265 |
| Image Resolution | 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160 |
| Expansion / Connectivity | |
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion slots | 2 (total) / 2 (free) x PCI Express 3.0 x8 8 (total) / 6 (free) x DIMM 288-pin |

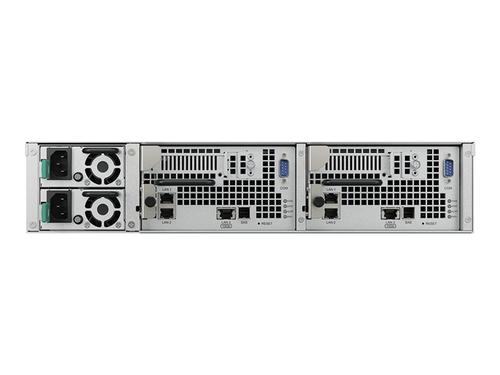

| Interfaces | 4 x Ethernet 1000Base-T - RJ-45 2 x Ethernet 10Gb - RJ-45 2 x serial (management) - DB-9 2 x expansion port |
| Miscellaneous | |
| Features | Citrix Ready, VMware Ready, reset button, for 19" server cabinets, easy replacement system fan, power recovery, built-in 4 x 60 mm cooling fans |
| Compliant Standards | VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM, UKCA |
| Included Accessories | Accessory pack, 2 x power cables |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 257.78 Watt |
| Power Provided | 500 Watt |
| Software / System Requirements | |
| Software included | McAfee AntiVirus (Trial), Synology Central Management System |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 51.3 dBA |
