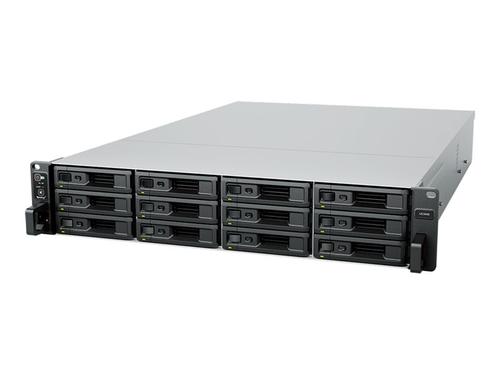

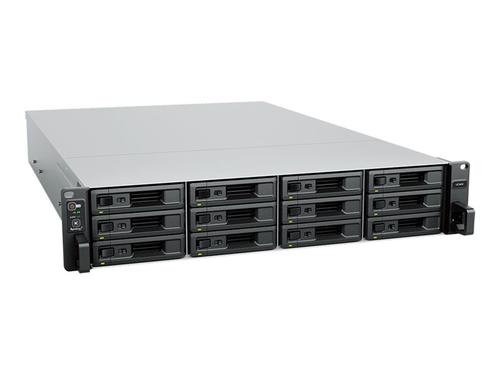

Synology UC3400 - NAS server - 12 bays - rack-mountable - RAID RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare, 1 hot spare, RAID F1, F1 hot spare - RAM 16 GB - Gigabit Ethernet / 10 Gigabit Ethernet - iSCSI support
- Brand
- Synology
- Product code
- UC3400
- SKU
- IZ4M9KBAFWJ1D
- EAN/GTIN
- 4711174725205
- Reliability and high availability
- Active-active SAN with enterprise-class performance
- Virtualization-ready
- Flexible network options
- Built-in data protection and security
Description
Flexible network options
Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fiber channel host bus adapters on each controller.
Built-in data protection and security
Maximize service uptime for critical services and enhance data security with snapshot protection and self-encrypting drive support in UC3400.
Reliability and high availability
Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.
Active-active SAN with enterprise-class performance
Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fiber Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS, 1 it supports a wide range of demanding workloads.
Virtualization-ready
Full certification for VMware, vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack environments. Support for Windows Offloaded Data Transfer (ODX), VMware vSphere Storage APIs Array Integration (VAAI), and ALUA ensure optimized and efficient storage operations. OpenStack Cinder support enables UC3400 to become a block-based storage component.
| General | |
|---|---|
| Device type | NAS server |
| Host Connectivity | Gigabit Ethernet / 10 Gigabit Ethernet |
| Enclosure Type | Rack-mountable |
| Total storage capacity | 0 GB |
| Storage Capacity Details | Single volume size:108 TB |
| Max Supported Capacity | 576 TB |
| Installed Devices / Modules Qty | 0 (installed) / 12 (max) |
| Width | 48.2 cm |
| Depth | 72.4 cm |
| Height | 8.8 cm |
| Weight | 19.7 kg () |
| Built-in Devices | Led panel |
| Localisation | Danish, Hungarian, Czech, Thai, Chinese (traditional), Chinese (simplified), Brazilian Portuguese, English, German, French, Italian, Portuguese, Polish, Swedish, Russian, Spanish, Dutch, Turkish, Japanese, Korean |
| Processor / Memory | |
| Processors Installed | 2 x Intel Xeon D-1541 2.1 GHz |
| Number of Cores | 8-core |
| Max Supported Qty | 2 |
| Max Turbo Speed | 2.7 GHz |
| RAM | 16 GB (installed) / 128 GB (supported) - DDR4 |
| Features | ECC |
| Storage Controller | |
| Type | 2 x RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare, RAID 1 hot spare, RAID F1, RAID F1 hot spare |
| Networking | |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE, 10GbE |
| Network / Transport Protocol | Telnet |
| Remote Management Protocol | SNMP, SSH |
| Performance | Maximum number of volume:32 Maximum iSCSI target:128 Maximum iSCSI LUN:128 Local user account:65 Maximum number of replication:64 Maximum of system snapshots:4096 |
| Features | Hardware encryption, OpenStack compatible, B-tree file system (Btrfs), SSD trim, RAID migration, SSD read-write cache, RAID Group, advanced LUN support |
| Encryption Algorithm | AES-NI |
| Expansion / Connectivity | |

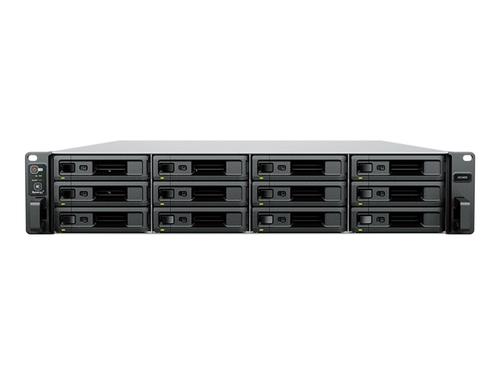

| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" |
| Expansion slots | 2 (total) / 2 (free) x PCI Express 3.0 x8 8 (total) / 6 (free) x DIMM 288-pin |

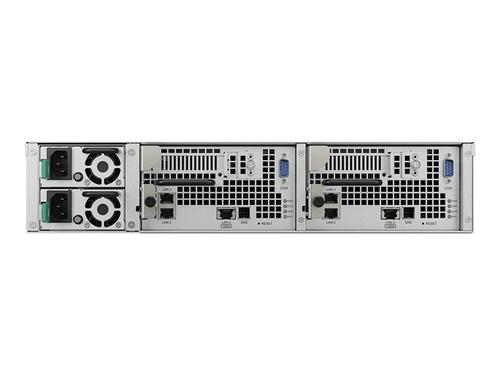

| Interfaces | 4 x Ethernet 1000Base-T - RJ-45 2 x Ethernet 10Gb - RJ-45 2 x serial (management) - DB-9 2 x expansion port |
| Miscellaneous | |
| Features | Citrix Ready, VMware Ready, reset button, for 19" server cabinets, easy replacement system fan, power recovery, built-in 4 x 60 mm cooling fans |
| Compliant Standards | VCCI, BSMI, FCC, RoHS, KC, EAC, RCM, UKCA |
| Included Accessories | Accessory pack, 2 x power cables |
| Power | |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 239.25 Watt |
| Power Provided | 500 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 5 - 95% RH |
| Sound Emission | 51.3 dBA |
