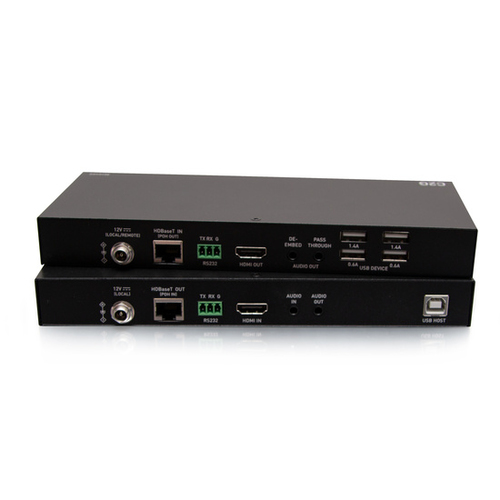

C2G HDMI HDBaseT + 3.5mm, USB-B to A, and RS232 over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz - Video/audio/USB/serial extender - transmitter - HDMI, HDBaseT 2.0 - over CAT 5e/6/6a/7 - up to 70 m
- Brand
- C2G
- Product code
- C2G31013
- SKU
- IWU21SUI6MC2C
- Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
- Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
- HDCP 2.2 compliant, to create a secure connection between the source and display
- HDBaseT Chipset VS210, for simpler HDBaseT installations
- One-way analog audio pass through from wall-plate transmitter to receiver
- Supports USB 2.0 pass through over HDBT up to 230ft, connecting up to 4 USB devices to the receiver
Product Info
The HDMI HDBaseT + 3.5mm, USB-B to A, and RS232 over Cat Extender Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution where USB must be extended alongside HDMI video and audio to interactive whiteboards and displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.

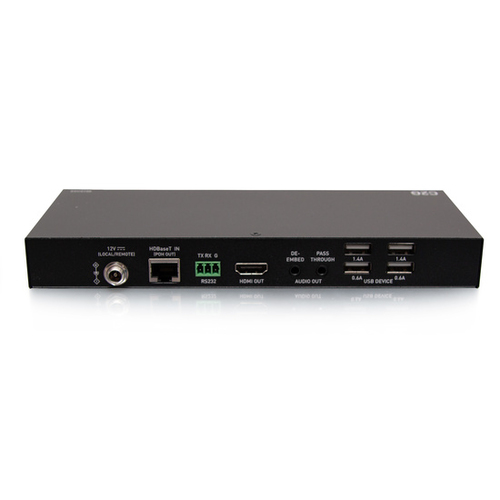

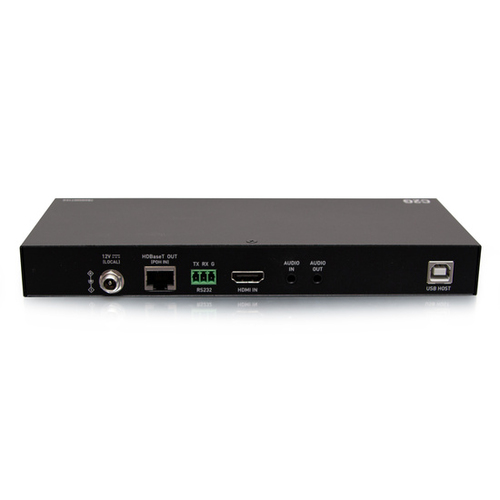

The transmitter extends HDMI and high speed USB 2.0 signals over a single Cat5e, Cat6 or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI or up to 130 feet using a Cat6a cable.
This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. One-way analog audio pass through is supported from the transmitter to the receiver. High speed USB 2.0 pass through is supported over HDBaseT up to 230ft for KVM control of devices such as USB cameras, keyboards, mice, etc. With PoH support, the transmitter sends power to both, the transmitter and the receiver, so no additional power adapter is required, allowing for greater flexibility in installations. Support this HDBaseT system that is already deployed in the field by upgrading firmware through the RS232 port.
Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors.
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e, Cat6a, Cat7 |
| Maximum transfer distance | 70 m |
| Chipset | VS210TX-A1 LFBGA-356, VS210RX-A1 HSBGA-484 |
| Maximum refresh rate | 60 Hz |

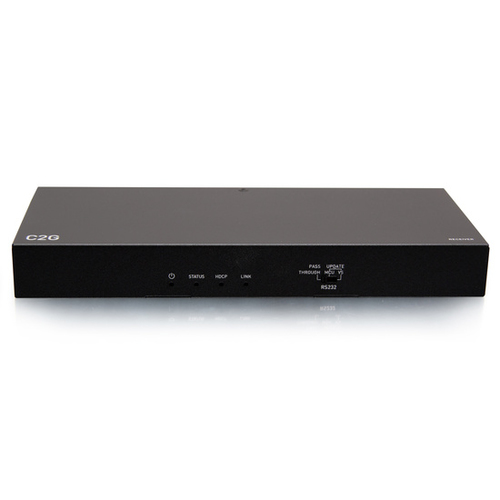

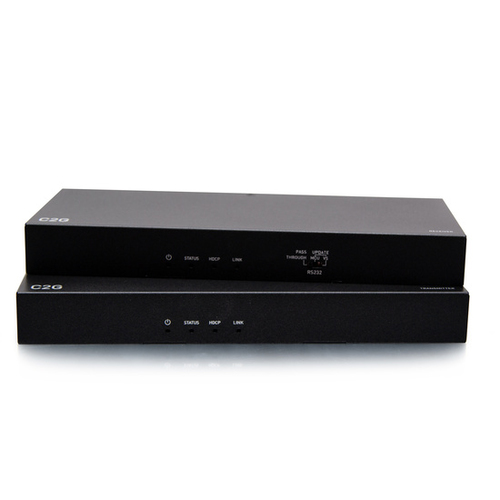

| Front panel control (RX) | Yes |
| Front panel control (TX) | Yes |
| Bandwidth | 340 MHz |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | NDAA 889 Prop 65 REACH ROHS TSCA |
| Ports & interfaces | |
| Connectivity technology | Wired |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| USB connector type | USB Type-A, USB Type-B |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Power | |

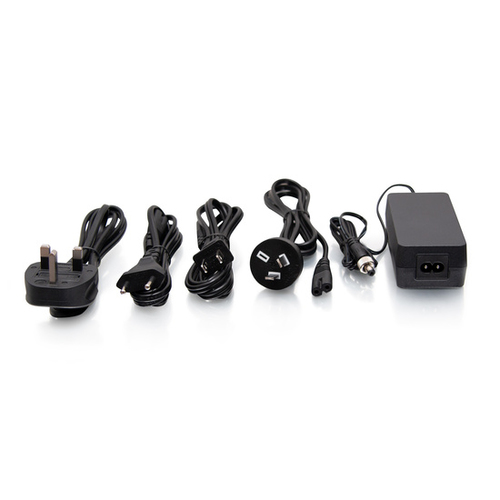

| Power source type | DC |
| Power consumption (max) | 19 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 210 x 90.2 x 25 mm |
| Receiver weight | 480 g |
| Transmitter dimensions (WxDxH) | 210 x 90.2 x 25 mm |
| Transmitter weight | 440 g |
