K/ST550 4210R FOC CPU
- Brand
- Lenovo
- Product code
- 7X10A0E2EA+4XG7A37995
- SKU
- RZBWAZZI0JZYR
- Server
- tower 4U
- 2-way
- 1 x Xeon Silver 4210R / up to 3.2 GHz
- RAM 16 GB
- SAS
- hot-swap 2.5" bay(s)
- no HDD
- Matrox G200
- Gigabit Ethernet
- no OS
- monitor: none
Product Info

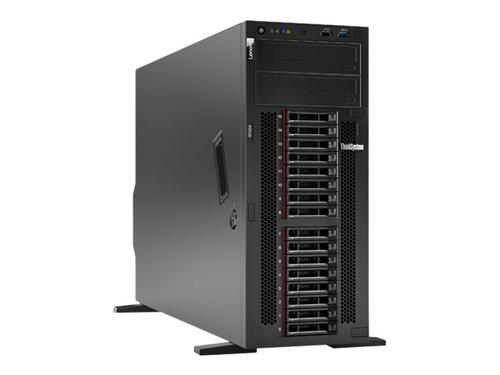

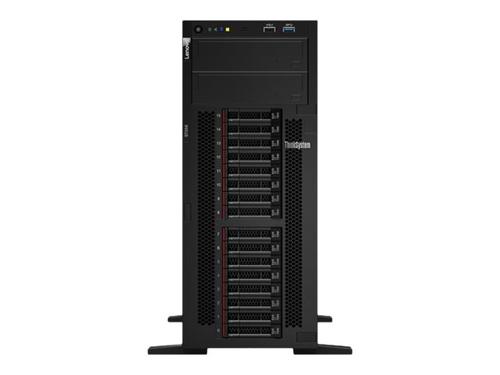

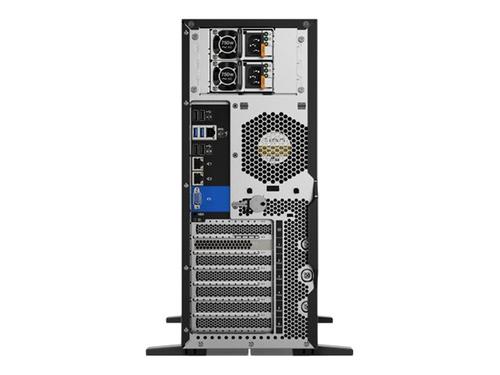

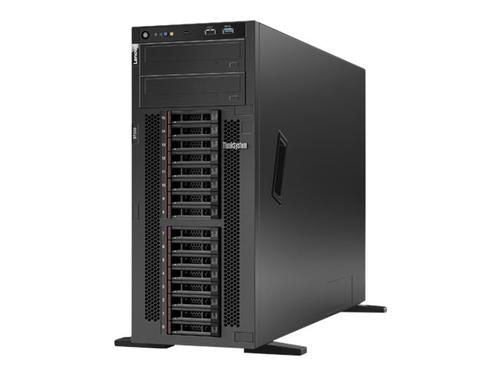

The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. It is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices.
Description
Energy-efficient design
Certified by ENERGY STAR, this Lenovo ThinkSystem ST550 server exemplifies efficiency in operation, reducing power consumption and lowering energy costs without sacrificing performance.
Robust expansion capabilities
With a variety of expansion slots including PCIe 3. 0 x16, this server offers ample room for growth and customization, allowing for full-length, full-height, and double-width expansions to meet the demands of evolving business needs.
Versatile connectivity options
Equipped with multiple USB 3. 0 and USB 2. 0 ports, along with VGA and dual Gigabit Ethernet ports, the ST550 ensures a wide range of connectivity options for various peripherals and network configurations.
Advanced memory support
Supporting up to 12 DIMM slots with features like Memory Mirroring and Memory Sparing, the server ensures data integrity and reliability, making it ideal for critical applications that demand continuous uptime.
Powerful processing capabilities
Powered by an Intel Xeon Silver processor and capable of supporting a second processor, the ST550 delivers exceptional performance and scalability, making it suitable for a wide range of enterprise workloads.
| Monitor | |
|---|---|
| Monitor Type | None. |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Device Type | Power supply - hot-plug |
| Power Provided | 750 Watt |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| 80 PLUS Certification | 80 PLUS Platinum |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Chipset | |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 10-core |
| Chipset Type | Intel C624 |
| CPU | Intel Xeon Silver 4210R |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Virtualization Technology, Intel Virtualization Technology for Directed I/O |
| General | |
| Front Accessible Bays Qty | 2 |
| Type | Server |
| Hot-Swap Bays Qty | 8 |
| Server Scalability | 2-way |
| Product Form Factor | Tower - 4U |
| Embedded Security | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Localisation | Region: EMEA |
| Storage Controller | |
| Channel Qty | 8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| Type | 1 x RAID - PCIe 3.0 x8 |
| Storage Controller Name | ThinkSystem RAID 9350-8i |
| RAID Level | RAID 0, RAID 1, RAID 10, RAID 5, RAID 50, RAID 6, RAID 60, JBOD |
| Dimensions & Weight | |
| Height | 43.8 cm |
| Width | 17.6 cm |
| Weight | 36 kg |
| Depth | 66 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Height | 37.2 cm |
| Shipping Width | 57.4 cm |
| Shipping Depth | 98.2 cm |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 2.1 |
| RAM | |
| Effective Memory Speed | 2400 MHz |
| Configuration Features | 1 x 16 GB |
| Installed Size | 16 GB (installed) / 768 GB (max) |
| Form Factor | DIMM 288-pin |
| Technology | DDR4 SDRAM - ECC |
| Rated Memory Speed | 2933 MHz |
| Slots | 12 (Total) / 11 (empty) |
| Features | Mixing of different types of memory modules is not supported, slots 7 - 12 are available in two-processor configuration only, registered, TruDDR4, low-voltage, 6-channel memory architecture, Memory Mirroring, Memory Sparing, Single Device Data Correction (SDDC) |
| Graphics Controller | |
| Video Interfaces | VGA |
| Graphics Processor | Matrox G200 |
| Networking | |
| Features | Wake on LAN (WoL) |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Ethernet Controller | Intel X722 |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
| Data Link Protocol | Gigabit Ethernet, Ethernet, Fast Ethernet |
| Remote Management Protocol | IPMI 2.0, SNMP 3, CIM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC Part 15 A, ICES-003 issue 6 Class A, UL 60950-1, CSA C22.2 No. 60950-1, EN 62368-1:2014, NOM-019, IEC 60950-1, VCCI Class A, AS/NZS CISPR 32 Class A, AS/NZS 60950-1, CCC, GB 4943.1, GB 9254 Class A, BSMI CNS 13438 Class A, BSMI CNS 14336-1, BSMI CNS 15663, KN32 Class A, KN35, CB, EN 55032 Class A, EN 60950-1, EN55024, EN 61000-3-2, EN 61000-3-3, CISPR 32 Class A, TUV GS, EK1-ITB2000, RoHS, Energy-Related Products (ErP) Lot 3, JESL, TR CU 020/2011, TR CU 004/2011, GB 17625.1 |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Optical Storage | |
| Type | No optical drive |
| Expansion / Connectivity | |
| Bays | 2 (total) / 2 (free) x external 5.25" x 1/2H8 (total) / 8 (free) x hot-swap 2.5" |
| Slots | 1 PCIe 3.0 x8 - half-length, full-height1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode, 2 processors must be installed)1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height, double-width (2 processors must be installed)1 PCIe 3.0 x8 - full-length, full-height |
| Interfaces | 4 x USB 3.0 (1 front, 2 rear, 1 internal)5 x USB 2.0 (1 front, 4 rear)1 x VGA1 x management - RJ-452 x LAN (Gigabit Ethernet) |
| Cache Memory | |
| Cache Per Processor | 13.75 MB |
| Installed Size | L3 Cache - 13.75 MB |
