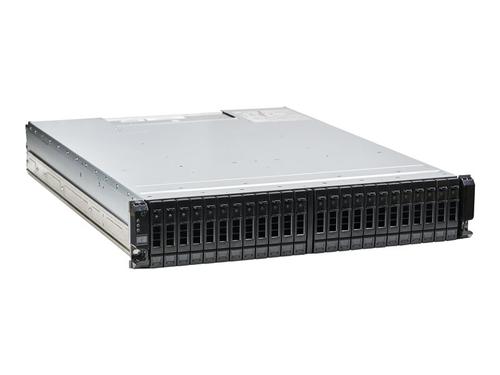

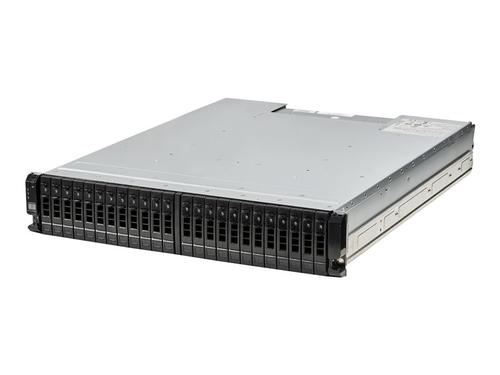

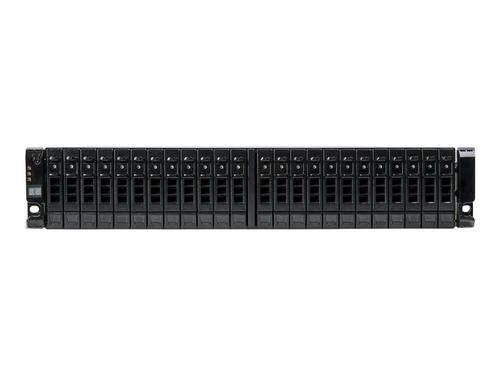

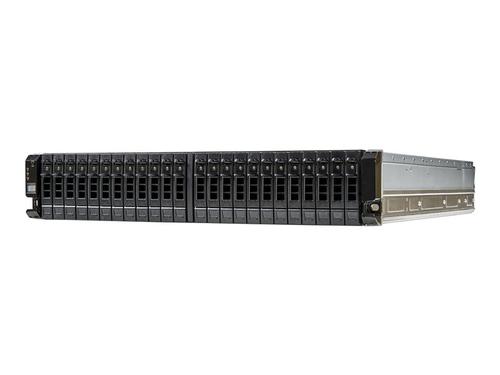

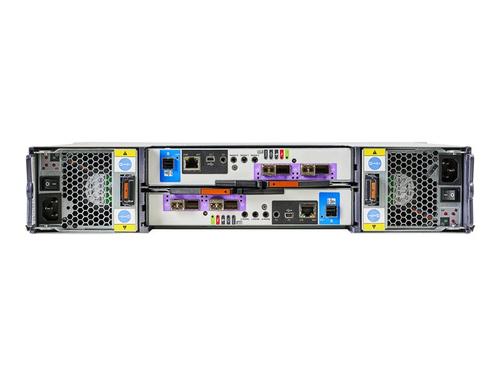

Seagate Exos X 2U24 D5525X000000DA - Solid state / hard drive array - 24 bays (SAS-3) - SAS 12Gb/s (external) - rack-mountable - 2U
- Brand
- SEAGATE SYSTEMS
- Product code
- D5525X000000DA
- SKU
- TFRYV66RC8ZBX
- Expand a data center seamlessly
- Efficiently manage hot and cold data
- Deliver unfettered data access with dual redundant controllers capable of achieving up to 7GB/s sequential read, 5.5GB/s sequential write performance
- Rebuild drives faster than ever and reduce downtime with Seagate ADAPT data protection technology
Description
Easy to set up, maintain, and expand
All system components - the enclosure, the controller, the firmware, and the drives - are developed and optimized by Seagate's engineers to work together seamlessly. This reduces support calls and eliminates technical learning curves. Modular architecture makes components interchangeable between systems, and upgrades are simple due to common FRUs, PCMs, controllers, and software.
Maximum capacity and consistent high performance
Leverage both speed and performance at a budget-friendly price.
Cost-optimized architecture
This flexible solution is perfect for businesses with demanding streaming environments that require high read and write throughput, while still needing considerable storage space. Built to ensure space is used to its maximum potential, application access to data is virtually instantaneous, ensuring IT and end users can work efficiently.
Get data to applications fast and protect valuable assets
This system is full of features that enable extreme cost efficiency and up to 99.999% data availability. Parallel architecture, multi-core processing, data replication, and fast streaming make access to data unfettered, while exclusive Seagate ADAPT data protection technology enables fast and efficient drive rebuilds that virtually eliminate system downtime.
Built-in security at the foundation of the data life cycle
Protect the valuable business assets with Seagate Secure cybersecurity features and intelligent firmware - such as SFTP, SED support, and administrator access controls - that provide built-in security measures for reliable and safe file access, transfer, and management.
| General | |
|---|---|
| Device type | Solid state / hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Localisation | Canada, United States |
| Chassis | |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-3 |
| Storage | |
| Max Supported Capacity | 57.6 TB |
| HDD Array External Interface | SAS 12Gb/s |
| RAM | |
| Installed Size | 16 GB |
| Storage Controller | |
| Type | RAID |
| Interface type | SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10 |
| Hard drive | |
| Type | No HDD |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" |
| Interfaces | 8 x SAS 12Gb/s 2 x management - RJ-45 2 x management - mini-USB Type A |
| Miscellaneous | |
| Features | Software encryption, SNMP support, hot-swappable fans, hot-swappable controllers, SMTP support, Snapshot function, Seagate ADAPT |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, KC, Directive 2009/125/EC, VCCI Class A, KN24, RCM, RoHS 2011/65/EU, BIS, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, ICES-3(A)/NMB-3(A), CAN/CSA-C22.2 No. 60950-1-07 |
| Included Accessories | Rail kit |
| Power | |
| Power Device | 2 x internal power supply - hot-plug |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V 50/60 Hz |
| Power Provided | 580 Watt |
| Dimensions & Weight | |
| Width | 44.3 cm |
| Depth | 63 cm |
| Height | 8.79 cm |
| Weight | 17 kg |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 35 °C |
| Humidity Range Operating | 10 - 80% (non-condensing) |
