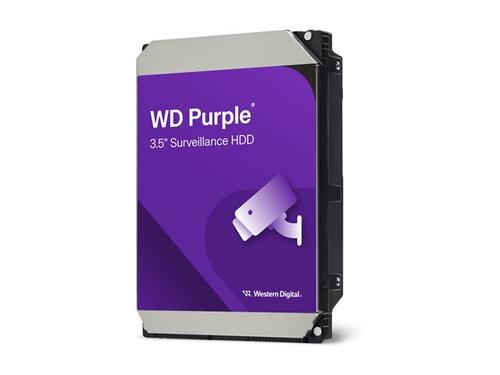

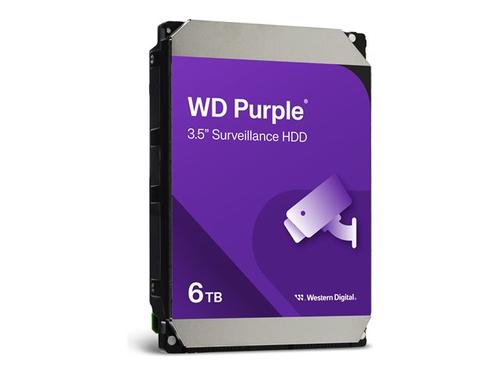

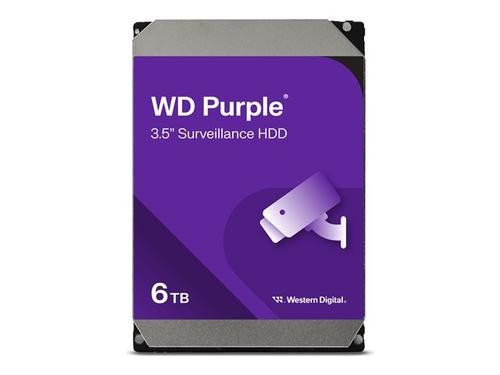

WD Purple WD64PURZ - Hard drive - 6 TB - surveillance - internal - 3.5" - SATA 6Gb/s - 5400 rpm - buffer: 256 MB
- Brand
- Western Digital
- Product code
- WD64PURZ
- SKU
- T9HJ0SEWC1XHA
- EAN/GTIN
- 10718037898336
- Hard drive
- 6 TB
- surveillance
- internal
- 3.5"
- SATA 6Gb/s
- 5400 rpm
- buffer: 256 MB
- Weight: 0.58 KG
Product Info
WD Purple drives are designed to meet the challenges of 24 x 7 video surveillance recording. These drives are engineered specifically for surveillance to help withstand the elevated heat fluctuations and equipment vibrations within NVR environments. An average desktop drive is built to run for only short intervals, not the harsh 24/7 always-on environment of a high-definition surveillance system. With WD Purple drives, you get reliable, surveillance-class storage that's tested for compatibility in a wide range of security systems. Great AllFrame technology helps reduce frame loss and improve overall video playback.
Description
Big storage and surveillance you can trust
Western Digital has provided surveillance-grade storage for more than a decade. With WD Purple surveillance storage, drives are engineered for high temperature, always-on surveillance systems so you can rely on quality video when you need it.
Western digital's WD AllFrame technology
All WD Purple drives are equipped with AllFrame technology, which helps reduce video frame drops and improves video recording and playback.
Enhanced workload ratings
WD Purple drives feature a workload rating - to handle the unique demands of mainstream video surveillance DVR and NVR systems.
Multiple cameras, multiple streams
Modern recorders support multiple video streams per camera. WD Purple drives support 64 single-stream HD cameras. With so many options, you have the flexibility to upgrade or expand your security applications in the future.
Designed for reliable operation
Engineered for reliability with an MTBF of 1 million hours, WD Purple drives feature tarnish-resistant components and support for storage systems with 16 drive bays. WD Purple hard drives are designed with RAID error recovery control to help reduce failures in supported video recorders.
Wide compatibility and seamless integration
WD Purple hard drives are built with compatibility in mind, so you can quickly and seamlessly add capacity to your surveillance system. With a wide range of high enclosures and chipsets supported, you're sure to find the DVR or NVR configuration that's right for you.
| General | |
|---|---|
| Buffer Size | 256 MB |
| Form Factor | 3.5" |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Capacity | 6 TB |
| Device Type | Hard drive - internal |
| Interface | SATA 6Gb/s |
| Features | Advanced Format technology, Conventional magnetic recording (CMR), AllFrame, 24x7 availability |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | RoHS 2011/65/EU |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Shock Tolerance (operating) | 30 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Performance | |
| Spindle Speed | 5400 rpm |
| Drive Transfer Rate | 600 MBps (external) |
| Reliability | |
| Non-Recoverable Errors | 1 per 10^14 |
| Load / Unload Cycles | 300,000 |
| 24x7 Operation | Yes |
| MTBF | 1,000,000 hours |
| Software & System Requirements | |
| Software Included | Western Digital Device Analytics |
| Expansion & Connectivity | |
| Compatible Bay | 3.5" |
| Interfaces | 1 x SATA 6 Gb/s |
