HPE FlexNetwork 5140 HI

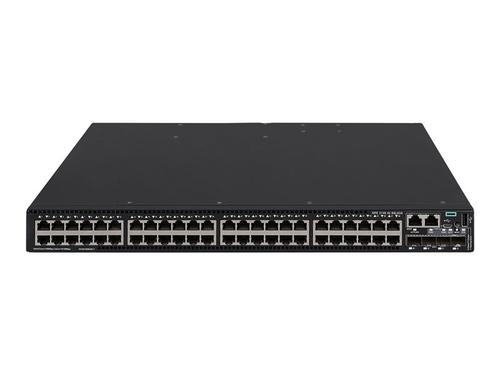

HPE FlexNetwork 5140 HI - Switch - 1-slot - L3 - Managed - 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ - side to back airflow - rack-mountable
- Brand
- Hewlett Packard Enterprise
- Product code
- R9L62A#ACC
- SKU
- SODPV72GNO22Q
- EAN/GTIN
- 190017587875
€8207.04
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Switch - 48 ports - L3 - Managed |
| Enclosure Type | Side to back airflow rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| Performance | Latency (1000 Mbps):5 µs Latency (10 Gbps):3 µs Throughput:180 Mpps Routing/switching capacity:336 Gbps |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMP, VRRP, OSPFv2, OSPFv3, VRRPE, static IPv4 routing, static IPv6 routing, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SNMP 6, NTP, ICMP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS |
| Features | Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), DHCP server, MLD snooping, Device Link Detection Protocol (DLDP) support, Endpoint Admission Defense (EAD), STP Root Guard, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, Multiple VLAN Registration Protocol (MVRP), port isolation, OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, LLDP-MED, Smart Link, Guest VLAN, proxy ARP, Weighted Round Robin (WRR), Intelligent Resilient Fabric Technology (IRF), STP BPDU port protection, UDP support, Multiple Registration Protocol (MRP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1v, ANSI/TIA-1057, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r |
| RAM | 2 GB SDRAM |
| Flash memory | 512 MB |
| Expansion / Connectivity | |
| Interfaces | 48 x 1000Base-T RJ-45 4 x Gigabit / 10Gbit LAN SFP+ 1 x console RJ-45 management 1 x mini-USB management 1 x management RJ-45 1 x USB 2.0 |
| Expansion slots | 1 (total) / 1 (free) x Expansion Slot |
| Power | |
| Power Device | Internal power supply (not installed) |
| Max Supported Qty | 2 |
| Power Consumption Stand by | 31 Watt |
| Miscellaneous | |
| Included Accessories | 2 fan trays |
| Rack Mounting Kit | Included |
| Compliant Standards | IEC 61000-4-11, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, AS/NZS 60950-1, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, GB 4943, EN 60825-2, EAC, IEC 61000-4-2:2008, IEC 61000-4-4:2004, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-3-3:2013, ETSI EN 300 386 V1.6.1:2012, EN 61000-3-2:2014, FCC CFR47 Part 15 B Class A, FDA 21 CFR, ANSI C63.4-2014, EN 55032:2015 Class A, CISPR 32:2015 Class A, IEC 61000-4-3:2010, IEC 61000-4-5:2014, IEC 61000-4-6:2013, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2015 Class A, ETSI EN 300 386 V2.1.1:2016-07, ICES-003 issue 7 Class A |
| Localisation | English / United Kingdom |
| Dimensions & Weight | |
| Width | 44 cm |
| Depth | 36 cm |
| Height | 4.36 cm |
| Weight | 6.7 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
