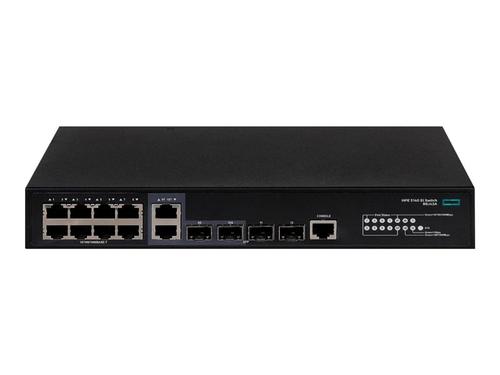

HPE FlexNetwork 5140 8G 2SFP 2XGT Combo EI - Switch - L3 - smart - 8 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 10GBase-T - rack-mountable - BTO
- Brand
- Hewlett Packard Enterprise
- Product code
- R8J42A#ACC
- SKU
- 2V20XWJ1DNX9L
- EAN/GTIN
- 190017527048
- Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10GbE uplinks, and POE+ models for voice, video, and wireless
- Supports IRF technology that enables Plug and Play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization
- Includes embedded network management capabilities with Smart Management Center (SmartMC)
- Includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports
Description
Scalability and high availability
The HPE FlexNetwork 5140 EI Switch Series delivers scalability and enhances reliability of the network with HPE Intelligent Resilient Fabric (IRF) technology. IRF stacking enables virtual resilient switching fabrics, where two or more switches perform as a single L2 switch and L3 router.
Comprehensive security control
The HPE FlexNetwork 5140 EI Switch Series supports flexible authentication methods including 802.1X and MAC Authentication for greater security and policy-driven application authentication. Per-user access control lists (ACLs) provide identity-driven security and access control.
Simplified management
The HPE FlexNetwork 5140 EI Switch Series can be seamlessly managed with HPE Intelligent Management Center (IMC) to provide end-to-end network transparency with a consistent network experience through comprehensive configuration, compliance, and policy management.
Enhanced quality of service
The HPE FlexNetwork 5140 EI Switch Series supports advanced classifier-based QoS which groups traffic using multiple match criteria based on Layer 2 and 3 information, it applies QoS policies such as setting priority level and rate limit to selected traffic on a port, VLAN, or entire switch.
| General | |
|---|---|
| Device type | Switch - 12 ports - L3 - smart |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x combo 10GBase-T |
| Performance | Latency (1000 Mbps):5 µs Latency (10 Gbps):3 µs Throughput:18 Mpps Routing/switching capacity:128 Gbps |
| Capacity | IPv4 routing table entries:512 IPv6 routing table entries:256 VLAN IDs:4094 |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMP, OSPFv2, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, CIDR |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH-2, CLI, SCP, SNMP 6, NTP, ICMP, DHCP, RADIUS |
| Encryption Algorithm | SSL |
| Authentication method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2), HWTACACS |
| Features | Flow control, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, High Availability, full duplex mode, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), RADIUS support, DHCP server, MLD snooping, Device Link Detection Protocol (DLDP) support, STP Root Guard, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Smart Link Pass-Through, Energy Efficient Ethernet, dynamic ARP protection, DHCP protection, Multiple VLAN Registration Protocol (MVRP), Strict Priority Queuing (SPQ), port isolation, Generic Attribute Registration Protocol (GARP), OpenFlow support, IP source guard, ICMP Router Discovery Protocol (IRDP), Link Aggregation, VLAN Double Tagging (Q-in-Q), LLDP-MED, Smart Link, Guest VLAN, Ethernet OAM, proxy ARP, Weighted Round Robin (WRR), Intelligent Resilient Fabric Technology (IRF), BPDU protection, UDP support, Multiple Registration Protocol (MRP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, ANSI/TIA-1057, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1r |
| RAM | 512 MB SDRAM |
| Flash memory | 256 MB |
| Expansion / Connectivity | |
| Interfaces | 8 x 1000Base-T RJ-45 2 x Gigabit / 10Gbit LAN SFP+ 2 x Gigabit / 10Gbit LAN RJ-45 1 x console RJ-45 management |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 10 A |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | Plug and Play, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, WEEE, EN 60825-1, FCC Part 15 B Class A, EN 60825-2, IPv6 Ready, EN 300 386, FDA 21 CFR, AS/NZS CISPR 32 Class A, YD/T993, IEC 62368-1, EN 55032, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, ETSI EN 300 386, EN 62368-1:2014/A11:2017, GB/T9254 |
| Pricing Type | BTO |
| Localisation | English / United Kingdom |
| Dimensions & Weight | |
| Width | 26.6 cm |
| Depth | 16 cm |
| Height | 4.36 cm |
| Weight | 1.5 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
