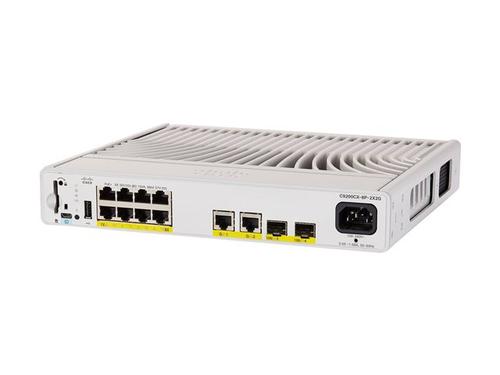

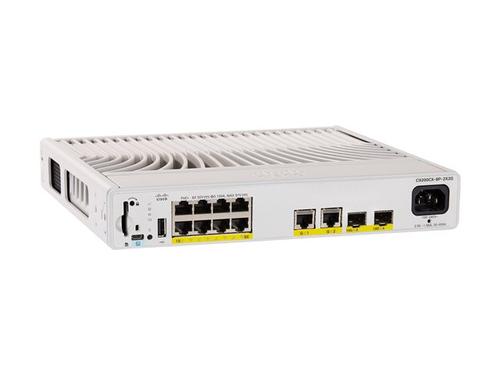

Cisco Catalyst 9200CX - Network Essentials - switch - compact - L3 - Managed - 8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (240 W)
- Brand
- Cisco
- Product code
- C9200CX-8P-2X2G-E
- SKU
- 9KDXGCP2Z5F99
- EAN/GTIN
- 889728447164
- Network Essentials
- switch
- compact
- L3
- Managed
- 8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink)
- rack-mountable
- PoE+ (240 W)
- Weight: 4.42 KG
Product Info
The Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT SIMPLIFIED.
Description
CONFIGURATION
8 x 10/100/1000M Ethernet with PoE+, 2 x 10G SFP+ and 2 x 1G Ethernet uplinks, 240W total PoE budget
IT SIMPLIFIED
Catalyst 9200 Series switches simplify complexity, optimize IT, and reduce operational costs with Cisco UADP ASIC and Cisco IOS XE providing consistency, intelligence and automation
SECURE
Enhanced security with MACsec encryption, full flexible NetFlow, and trustworthy solutions that protect the integrity of the hardware as well as the software and all data that flows through the switch
COMPACT
Compact and fanless form factor for versatile deployments out of IT rooms with Catalyst 9200 equivalent features plus flexible power source options (select models) and advanced layer 3 support
MANAGEMENT
Choice of CLI, Cisco Catalyst Center (formerly Cisco DNA Center) on-premises management, or cloud monitoring for Catalyst on Meraki dashboard
| General | |
|---|---|
| RAM | 4 GB |
| Subtype | Gigabit Ethernet |
| Status Indicators | Power |
| Flash Memory | 8 GB |
| PoE Budget | 240 W |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | 128-bit AES |
| Power Over Ethernet (PoE) | PoE+ |
| Built-in Devices | RFID tag |
| Device Type | Switch - 8 ports - L3 - Managed |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Capacity | Virtual networks: 16IPv4 routes: 14000Direct IPv4 routes: 10000Indirect IPv4 routes: 4000IPv4 routing entries: 4000IPv6 routing entries: 2000Multicast scale: 1000QoS scale entries: 1000ACL scale entries: 1600Flexible NetFlow entries: 16000VLAN IDs: 4096PVST instances: 128STP Virtual Ports for PVST: 13000STP Virtual Ports for MST: 13000 |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) |
| Performance | Switching capacity: 60 GbpsForwarding rate: 95.23 MppsPacket buffer size: 6 MB |
| Routing Protocol | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG |
| Compliant Standards | IEEE 802.3, IEEE 802.3at, IEEE 802.3af, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae |
| Features | Fanless, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support, Cisco UADP 2.0, trustworthy systems, ZTP |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 30 W2 x 1000Base-T RJ-452 x 10GBase-X SFP+ uplink1 x USB 2.01 x console (micro-USB) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - lifetime - response time: next business dayTechnical support - consulting - 90 days |
| Miscellaneous | |
| MTBF | 569,530 hours |
| Compliant Standards | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Power | |
| Power Provided | 310 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Cisco IOS Universal 17.8 |
| Environmental Parameters | |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 90% (non-condensing) |
| Dimensions & Weight | |
| Depth | 24.4 cm |
| Height | 4.4 cm |
| Width | 26.9 cm |
| Weight | 2.99 kg |
