Eaton Tripp Lite 45U SmartRack 2-Post
- Brand
- Eaton
- Product code
- SR2POST
- SKU
- PKD7OQSD50U2Z

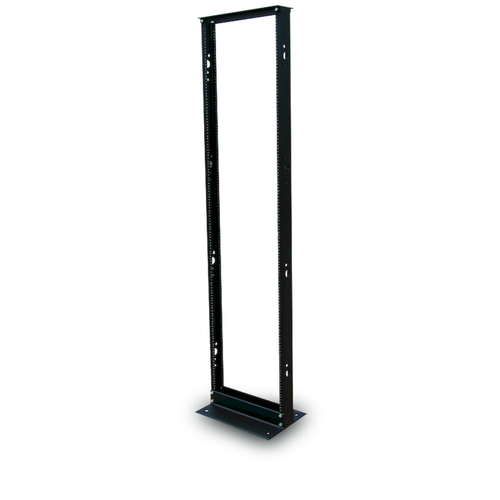

- 45U 2-post open frame rack

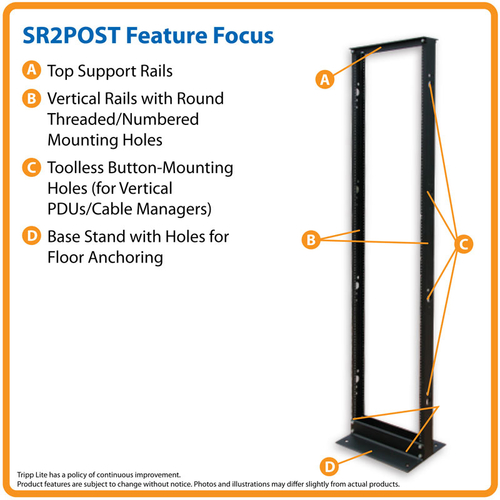

- Black aluminum with 12-24 threaded and numbered mounting holes
- Toolless button keyhole mounting slots accept PDUs or cable managers
Product Info
SR2POST 2-Post SmartRack Open Frame Rack is an economical way to accommodate 45U of rack space for 19-inch rack-mount applications where space is at a premium. Its heavy-duty, aluminum construction can safely support 800 pounds (362.9 kilograms) of rack-mount equipment. The black, textured power coat finish makes it resistant to scratching while giving it a classic, attractive appearance. The SR2POST is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting holes, and bolt down provisions. Only standard hand tools are required for installation (9/16" wrench and 9/16" socket/ratchet). Multiple units can be bolted together side by side for easy expansion or customization when required. The SR2POST 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100, and RoHS.
| Features | |
|---|---|
| Rack capacity | 45U |
| Type | Freestanding rack |
| Maximum weight capacity | 362.9 kg |
| Product colour | Black |
| Certification | EIA-310-D, IEC 60297-3-100, RoHS |
| Weight & dimensions | |
| Width | 515.6 mm |
| Depth | 342.9 mm |
| Height | 2133.9 mm |
| Weight | 13.2 kg |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 2235.2 mm |
| Package height | 124.5 mm |
| Package weight | 15 kg |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332127560 |
| Logistics data | |
| Country of origin | China |
| Harmonized System (HS) code | 8517.79.0000 |
| Master (outer) case width | 497.8 mm |
| Master (outer) case length | 2260.6 mm |
| Master (outer) case height | 480.1 mm |
| Master (outer) case gross weight | 106.1 kg |
| Products per master (outer) case | 9 pc(s) |
