Tripp Lite PDU Metered Vertical 7.4W 230V 8 C19 40 C13 IEC 309 32A 0U TAA - Power distribution unit (rack-mountable) - 32 A - AC 230 V - 7.4 kW - input: IEC 60309 32A - output connectors: 48 (power IEC 60320 C13, IEC 60320 C19) - 0U - 3.05 m cord - TAA Compliant
- Brand
- Eaton
- Product code
- PDUMV32HV
- SKU
- IJJ9C3G7P0PS8
- EAN/GTIN
- 037332182814
- Ideal for server rooms, network closets and data centers

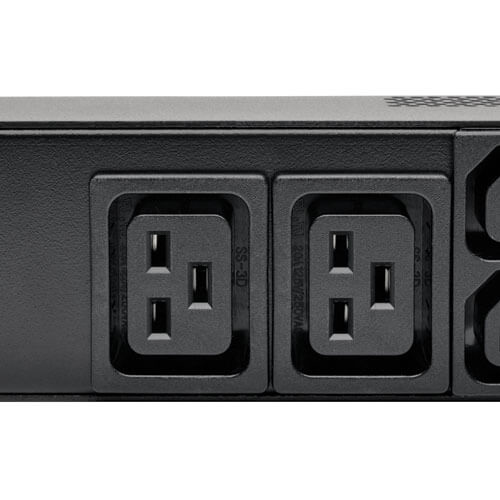

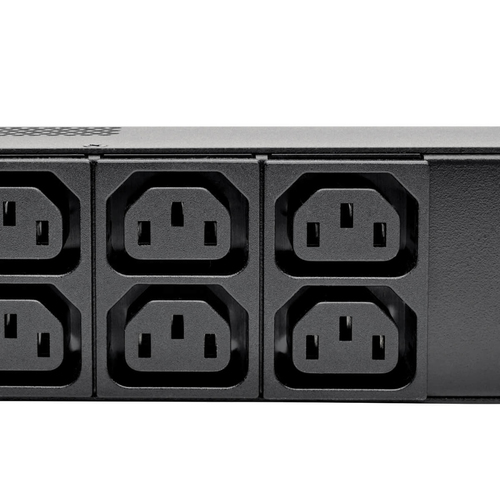

- Dual load banks with 24 outlets each (4 C19 and 20 C13)

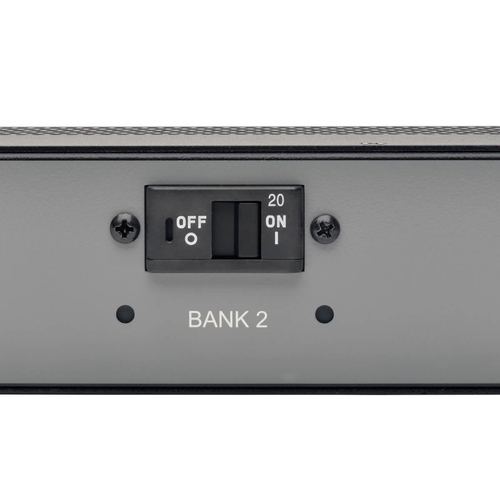

- Dedicated 20A circuit breakers protect output

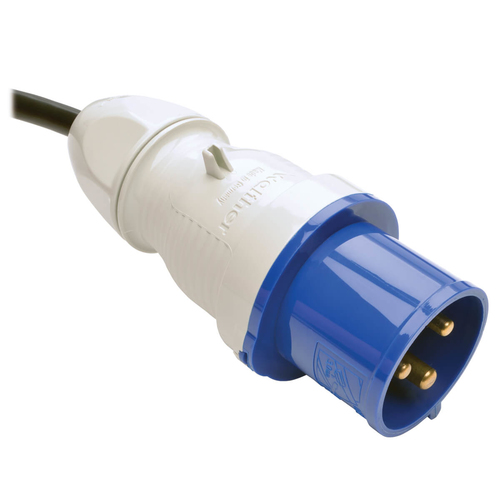

- IEC-309 32A blue input plug with 10-ft. (3.05 m) cord

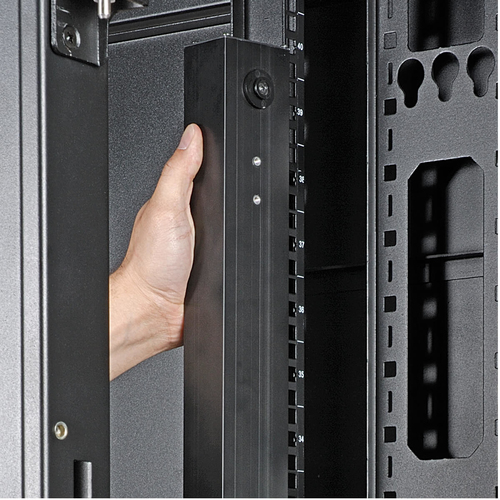

- Ready for immediate toolless 0U installation
Product Info

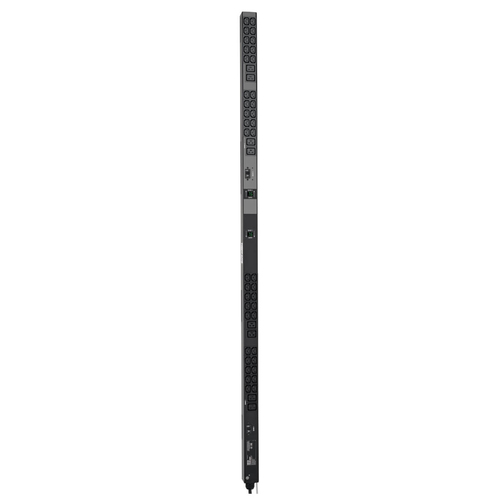

The 70-inch (178-centimeter) PDUMV32HV 32A 200-240V 7.7kW Single-Phase Local Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers.

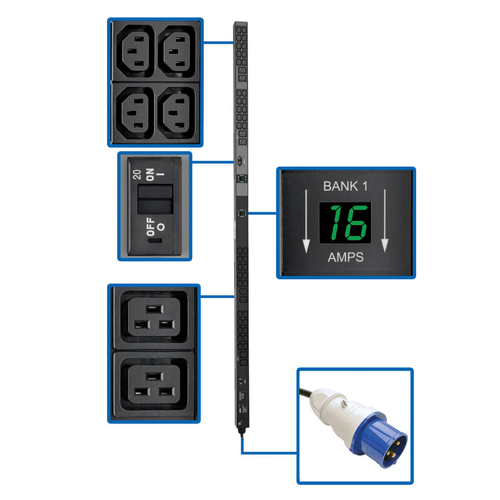

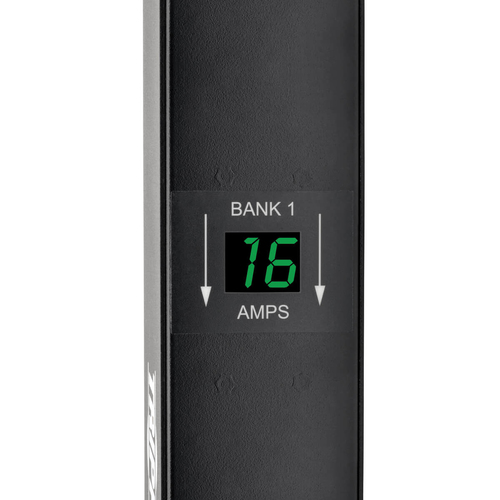

Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.

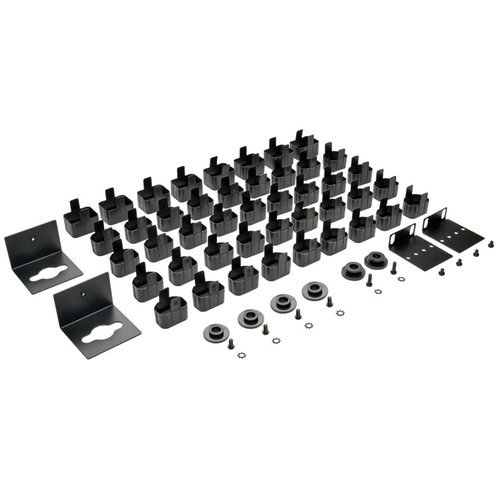

An ideal PDU for server rooms, network closets and data centers, the PDUMV32HV's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The IEC-309 32A blue input plug with 10-ft. (3.05 m) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.
| Design | |
|---|---|
| PDU types | Metered |
| Rack capacity | 0U |
| Mounting | Vertical |
| Housing material | Metal |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 48 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Power | |
| Nominal input voltage | 230 V |
| Maximum current | 32 A |
| Nominal output voltage | 200-240 V |
| Weight & dimensions | |
| Width | 55.1 mm |
| Depth | 64 mm |
| Dimensions (WxDxH) | 245 x 175 x 192.7 mm |
| Height | 1778 mm |
| Weight | 5.9 kg |
| Packaging data | |
| Package dimensions (WxDxH) | 68.8 x 64 x 177.8 mm |
| Package weight | 7.98 kg |
| Package width | 245.1 mm |
| Package depth | 1927.1 mm |
| Package height | 175 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332182811 |
| Logistics data | |
| Country of origin | Taiwan |
| Products per master (outer) case | 1 pc(s) |
