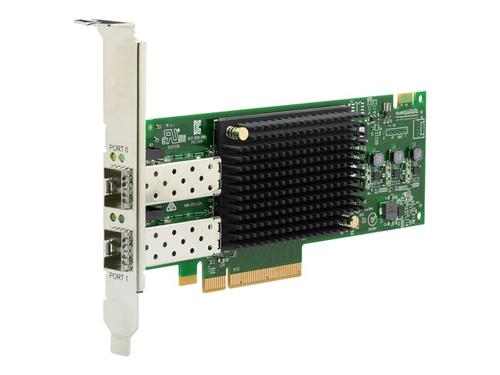

HPE SN1700E - Host bus adapter - PCIe 4.0 x8 - 64Gb Fibre Channel (Short Wave) x 2 - for ProLiant DL325 Gen10, DL360 Gen10, DL380 Gen10, ML350 Gen11, XL220n Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- R7N78A
- SKU
- 7EM01HKCNPXB5
- EAN/GTIN
- 190017520063
- Higher performance for NVMe deployments
- Simplified manageability
- Protect your data
Description
Higher performance for NVMe deployments
It offers PCIe 4.0 support and provides better interconnect performance bandwidth when compared to PCIe 3.0. It speeds up applications and AFAs, as well as handles peak workload I/O spikes better than the previous generation adapters. The HPE SN1700E 64Gb Fiber Channel Host Bus Adapter offers higher bandwidth, better latency, enhanced security, and operational efficiency for 64 GFC storage area networks.
Simplified manageability
It enables full end-to-end implementation of Brocade Fabric Vision from the HBA to the switch. It provides improved HBA reliability through which one can meet the service-level agreements (SLA) on time. The HPE SN1700E 64Gb Fiber Channel Host Bus Adapter saves time with no server reboots for firmware updates, queue depth changes, and optics replacements.
Protect your data
The HPE SN1700E 64Gb Fiber Channel Host Bus Adapter can protect the data from corruption using the data integrity field (T10 DIF). The secure boot offers UEFI boot code security with digitally signed boot code. The HPE SN1700E 64Gb Fiber Channel Host Bus Adapter can thwart malicious firmware with a silicon root of trust and digitally signed firmware.
| General | |
|---|---|
| Device type | Host bus adapter |
| Form factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x8 |
| PCI Specification Revision | PCIe 4.0 |
| Networking | |
| Ports | 64Gb Fibre Channel (Short Wave) x 2 |
| Connectivity technology | Wired |
| Cabling type | Fibre Channel |
| Data Link Protocol | 64Gb Fibre Channel (Short Wave) |
| Expansion / Connectivity | |
| Interfaces | 2 x 64Gb Fibre Channel (Short Wave) - SFP+ |
| Miscellaneous | |
| Included Accessories | Low-profile bracket, standard bracket, 2 x 64Gb SFP+ transceivers |
| Compliant Standards | OM4, OM3 |
| Power | |
| Power Consumption Operational | 11 Watt |
| Dimensions & Weight | |
| Width | 12.44 cm |
| Depth | 16.764 cm |
| Height | 6.934 cm |
| Weight | 125 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka BAse Tracking, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2 Performance, DL360 Gen10 Plus, DL360 Gen10 Plus All-NVMe Server for Software Defined Storage, DL360 Gen10 Plus for Weka Base Tracking, DL360 Gen10 Plus Network Choice, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, ML350 Gen11 Performance 3, XL220n Gen10 Plus |
