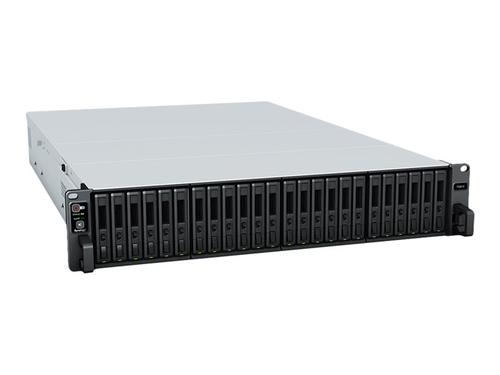

Synology FlashStation FS3410

General

Device type NAS server

Host Connectivity 10 Gigabit Ethernet

Enclosure Type Rack-mountable - 2U

Max Supported Capacity 1 PB

Installed Devices / Modules Qty 0 (installed) / 24 (max)

Width 48.2 cm

Depth 72.4 cm

Height 8.8 cm

Weight 15 kg ()

Localisation Danish, Czech, Thai, Chinese (traditional), Chinese (simplified), Brazilian Portuguese, English, German, French, Italian, Norwegian, Portuguese, Polish, Swedish, Russian, Spanish, Dutch, Turkish, Japanese, Korean, Magyar

Processor / Memory

Processors Installed 1 x Intel Xeon D-1541 2.1 GHz

Number of Cores 8-core

Max Supported Qty 1

Max Turbo Speed 2.7 GHz

RAM 16 GB (installed) / 128 GB (supported) - DDR4

Features ECC

Storage Controller

Type RAID

RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID F1

Networking

Data Link Protocol 10Mb LAN, 100Mb LAN, 1GbE, 10GbE, iSCSI

Network / Transport Protocol iSCSI, FTP, SMB, NFS, HTTP, HTTPs, SMB v2, SMB v3, CIFS

Remote Management Protocol SNMP, LDAP

Network Services Compatibility Network File System (NFS), FTP, Server Message Block (SMB), Apple File Protocol (AFP), Calendaring Extensions to WebDAV (CalDAV)

Performance Maximum number of volume:256 Local user account:16000 Local group account:512 Maximum number of shared folder:32 Hybrid share folder number:30 Syslog:3000 logs per second

Features Wake on LAN (WOL), High Availability, Access Control List (ACL) support, WebDAV server, VPN Server, OpenStack compatible, B-tree file system (Btrfs), EXT4 file system, SSD trim, iSCSI LUN clone/snapshot, RAID migration, Smart Out-of-Band, NFS Kerberos authentication, SSD read-write cache, RAID Group

Security DVR

IP Cameras Supported 100

Compression Format H.264, H.265

Image Resolution 1280x720, 1920x1080, 2048x1536, 2591x1944, 3840x2160

Expansion / Connectivity

Expansion Bays 24 (total) / 24 (free) x hot-swap - 2.5"

Expansion slots 1 (total) / 1 (free) x PCI Express 3.0 x8 4 (total) / 3 (free) x DIMM 288-pin

Interfaces 4 x Ethernet 1000Base-T - RJ-45 2 x USB 3.2 Gen 1 - Type A 2 x Ethernet 10Gb - RJ-45 1 x management - RJ-45

Miscellaneous

Cables included 2 x power cable

Features Built-in 4 cooling fans, Citrix Ready, scheduled power on/off, reset button, 80mm cooling fan, mute button, on/off power switch, easy replacement system fan, power recovery

Compliant Standards UL, VCCI, BSMI, CCC, FCC, RoHS, KC, EAC, RCM, UKCA

Included Accessories Accessory pack

Power

Power Device Internal power supply

Installed Qty 2

Max Supported Qty 2

Power Redundancy Yes

Voltage Required AC 100-240 V (50/60 Hz)

Power Consumption Operational 113.84 Watt

Power Provided 550 Watt

Software / System Requirements

Software included McAfee AntiVirus (Trial), Synology Central Management System

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 5 °C

Max Operating Temperature 35 °C

Humidity Range Operating 5 - 95% RH

Sound Emission 46.1 dBA
