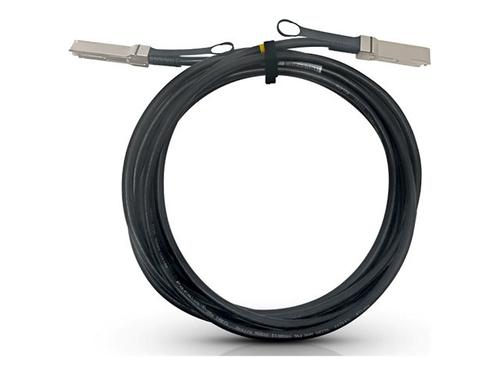

NVIDIA - Direct attach cable - QSFP56 (M) to QSFP56 (M) - 2 m - halogen-free
- Brand
- NVIDIA NBU HW
- Product code
- 980-9I549-00H002
- SKU
- B216YETVX1SI4
- EAN/GTIN
- 7290108482232
- Supports data transfer speeds of up to 200 Gbps for efficient networking
- Hot-pluggable with black pull tab for easy installation and maintenance
- Constructed with LSZH material for a safer, eco-friendly design
- Compatible with InfiniBand HDR Link for high-performance computing environments
- Meets multiple compliance standards including RoHS and IBTA IB HDR
Description
Effortless installation
Featuring a hot-pluggable design with a convenient black pull tab, installation and removal are straightforward, reducing downtime and simplifying maintenance. The cable's compatibility with InfiniBand HDR Link supports seamless integration into existing network infrastructures.
High-speed connectivity
Experience fast data transfer speeds of up to 200 Gbps, ideal for high-performance computing and networking environments. This direct attach cable is designed to support demanding data-intensive applications.
Durable and safe design
Constructed with a Low Smoke Zero Halogen (LSZH) jacket, this cable minimizes the amount of toxic and corrosive gas emitted during combustion. It's halogen-free, ensuring a safer environment for both users and the planet.
| General | |
|---|---|
| Network Cable Type | Direct attach cable |
| Jacket material | Low smoke zero halogen (LSZH) |
| American Wire Gauge (AWG) | 26 |
| Impedance | 110 Ohm |
| Features | Halogen-free, Hot-pluggable, InfiniBand HDR Link support, black pull tab, up to 200 Gbps |
| Length | 2 m |
| Connectivity | |
| Connector | QSFP56 - male |
| Connector (Second End) | QSFP56 - male |
| Miscellaneous | |
| Compliant Standards | RoHS, IBTA IB HDR, SFF-8665, SFF-8636 |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
