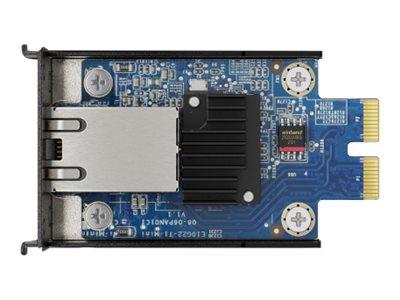

Synology E10G22-T1-Mini
Synology E10G22-T1-Mini - Expansion module - 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1
- Brand
- Synology
- Product code
- E10G22-T1-MINI
- SKU
- L4BSHGHBSIHKV
- EAN/GTIN
- 4711174724482
- Throughput - expand system capabilities with 10GbE connectivity
- Flexibility - integrate easily with support for 10/5/2.5/1 Gbps networks
- Compatibility - designed for maximum performance and reliability in Synology systems
€150.79
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description

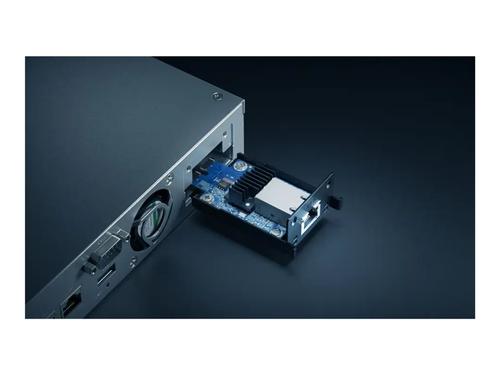

Simple installation
Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly upgrade bandwidth availability in Synology servers featuring compact-size enclosures.
Multi-gig support
Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.
| General | |
|---|---|
| Device type | Expansion module |
| Form factor | Plug-in module |
| Networking | |
| Ports | 100M/1G/2.5G/5G/10 Gigabit Ethernet x 1 |
| Connectivity technology | Wired |
| Cabling type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T |
| Data Link Protocol | Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data transfer rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP |
| Features | Flow control, auto-negotiation, full duplex mode, LSO, RSS, TSO, TCP/IP checksum offload, UDP/IP checksum offload, 9 KB Jumbo Frame, GSO, GRO |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3an, IEEE 802.3bz |
| Expansion / Connectivity | |
| Interfaces | 1 x 10GBase-T - RJ-45 |
| Dimensions & Weight | |
| Width | 4.538 cm |
| Depth | 7.57 cm |
| Height | 2.637 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 8 - 80% RH |
