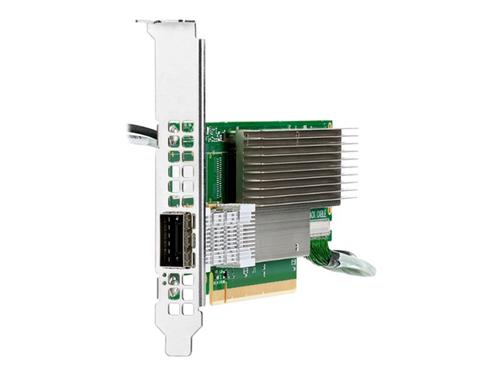

HPE InfiniBand HDR MCX653105A-HDAT
HPE InfiniBand HDR MCX653105A-HDAT - Network adapter - PCIe 4.0 x16 low profile - 200Gb Ethernet / 200Gb Infiniband QSFP28 x 1 - for ProLiant XL220n Gen10, XL225n Gen10, XL290n Gen10, XL645d Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- P23664-H21
- SKU
- KP3SO25J2I8UX
- EAN/GTIN
- 190017437156
€2688.23
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Network adapter |
| Form factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0 |
| Networking | |
| Ports | 200Gb Ethernet / 200Gb Infiniband QSFP28 x 1 |
| Connectivity technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand |
| Data transfer rate | 200 GBps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI |
| Features | Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, Virtual Protocol Interconnect (VPI), Quality of Service (QoS), InfiniBand DDR Link support, Jumbo Frames support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, InfiniBand FDR Link support, congestion control, Advanced Error Reporting (AER), Extended Message-Signaled Interrupts (MSI-X), Header Data Split (HDS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, TLP Processing Hint (TPH), InfiniBand SDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), InfiniBand HDR100 Link support |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
| Processor / Memory | |
| Processor | 1 x Mellanox ConnectX-6 |
| Expansion / Connectivity | |
| Interfaces | 1 x 200Gb Ethernet / 200Gb Infiniband - QSFP28 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| OS Required | FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE ProLiant XL220n Gen10 Plus, XL225n Gen10 Plus 1U Node, XL290n Gen10 Plus, XL645d Gen10 Plus |
