Broadcom BCM957414M4143C

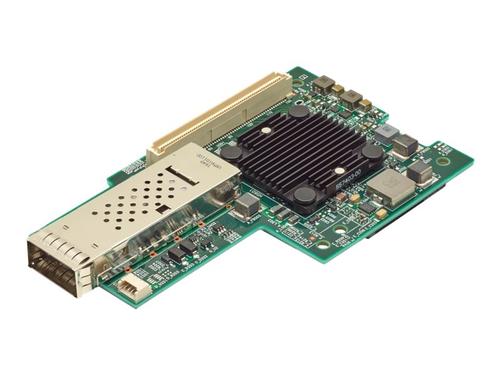

Broadcom BCM957414M4143C - Network adapter - PCIe 3.0 x8 Mezzanine - 50 Gigabit QSFP28 x 1
- Brand
- Broadcom
- Product code
- BCM957414M4143C
- SKU
- VYMWFS7QKWMYA
- EAN/GTIN
- 650861000161
- Single-port pluggable media interface, which may be equipped with 50 Gb/s QSFP28 optical transceiver or with copper direct-attach cable
- Fully compliant with the SFF-8665 standard
- X8 PCI Express 3.0 compliant
- SR-IOV with up to 128 virtual functions (VFs)
- Function-Level Reset (FLR) support
- TruFlow flow processing engine
- Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
- VSwitch acceleration
- Tunnel-aware stateless offloads
- DCB support: PFC, ETS, QCN, DCBx
- RDMA over Converged Ethernet (RoCE)
- Network Controller Sideband Interface (NC-SI)
- SMBus 2.0
- MCTP over SMBus
- PCIe-based UART and KCS
- Jumbo frames up to 9 KB
- Advanced congestion avoidance
- Multiqueue, NetQueue, and VMQ
- IPv4 and IPv6 offloads
- TCP, UDP, and IP checksum offloads
- Large send offload (LSO)
- Large receive offload (LRO)
- TCP segmentation offload (TSO)
- Receive-side Scaling (RSS)
- Transmit-side Scaling (TSS)
- VLAN insertion/removal
- Interrupt coalescing
- Network boot - PXE, UEFI
- ISCSI boot
- Wake-on-LAN (WOL)
- MSI and MSI.X
€341.46
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Network adapter |
| Form factor | Plug-in module |
| Interface (Bus) Type | PCI Express 3.0 x8 Mezzanine |
| PCI Specification Revision | PCIe 3.0 |
| Networking | |
| Ports | 50 Gigabit QSFP28 x 1 |
| Connectivity technology | Wired |
| Data Link Protocol | 50 Gigabit Ethernet |
| Status Indicators | Link/activity |
| Features | WOL, DCBX support, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, TSO, MSI-X, GRE, TSS, iSCSI boot, TCP/IP checksum offload, UDP/IP checksum offload, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, 9 KB Jumbo Frame, OCP 2.0 support, MCTP over SMBus, TruFlow, Interrupt coalescing, ETS, QCN, GENEVE support, vSwitch Acceleration, tunnel-aware stateless offloads, SMBus 2.0, VMware NetQueue and Microsoft VMQ |
| Expansion / Connectivity | |
| Interfaces | 1 x 50Gb Ethernet - QSFP28 |
| Miscellaneous | |
| Compliant Standards | RoHS, MSA SFF-8665 |
| Dimensions & Weight | |
| Weight | 75 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
