Broadcom BCM957504-M1100G16

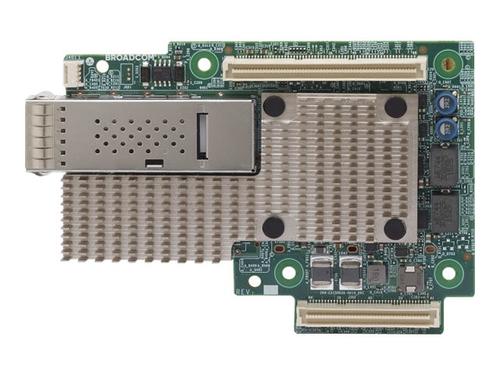

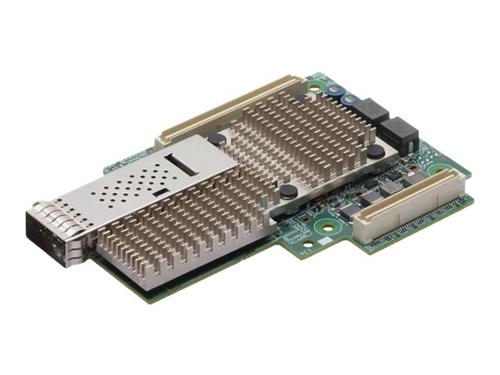

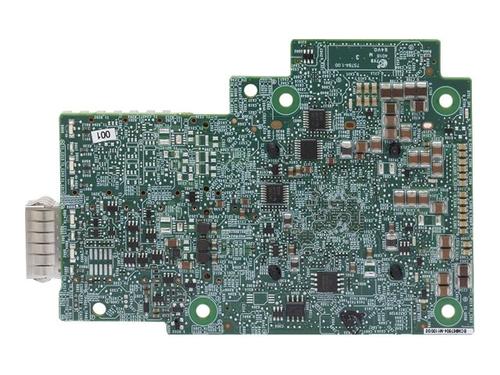

Broadcom BCM957504-M1100G16 - Network adapter - OCP - 100 Gigabit Ethernet x 1
- Brand
- Broadcom
- Product code
- BCM957504-M1100G16
- SKU
- 72X9FQRFXBBFD
- EAN/GTIN
- 8592978453503
- Supports 50G PAM-4 and 25G NRZ signaling
- Fully compliant with the SFF-8402 standard
- PCI Express v4.0 x16 compliant
- SR-IOV with up to 1k virtual functions (VFs)
- Function-Level Reset (FLR) support
- TruFlow flow processing engine
- Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
- Tunnel-aware stateless offloads
- DCB support - PFC, ETS, QCN, DCBx
- RDMA over Converged Ethernet (RoCE)
- Network Controller Sideband Interface (NC-SI)
- SMBus 2.0
- MCTP over SMBus
- Jumbo frames up to 9 KB
- Advanced congestion avoidance
- Multiqueue, NetQueue, and VMQ
- IPv4 and IPv6 offloads
- TCP, UDP, and IP checksum offloads
- Large send offload (LSO)
- Large receive offload (LRO)
- TCP segmentation offload (TSO)
- Receive-side Scaling (RSS)
- Transmit-side Scaling (TSS)
- VLAN insertion/removal
- Interrupt coalescing
- Network boot - PXE, UEFI
- ISCSI boot
- Wake-on-LAN (WOL)
- MSI and MSI-X
€406.88
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
| General | |
|---|---|
| Device type | Network adapter |
| Form factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) |
| PCI Specification Revision | PCIe 4.0 |
| Networking | |
| Ports | 100 Gigabit Ethernet x 1 |
| Connectivity technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet |
| Data transfer rate | 100 Gbps |
| Features | WOL, IPv4 support, PXE support, LSO, LRO, RSS, UEFI support, DCB, TSO, MSI-X, GRE, TSS, iSCSI boot, RoCE, VXLAN, NVGRE, FLR, MSI, 9 KB Jumbo Frame, MCTP over SMBus, TruFlow, NetQueue, VMQueue |
| Expansion / Connectivity | |
| Interfaces | 1 x 100Gb Ethernet |
| Power | |
| Power Consumption Operational | 16.9 Watt |
| Dimensions & Weight | |
| Weight | 109 g |
