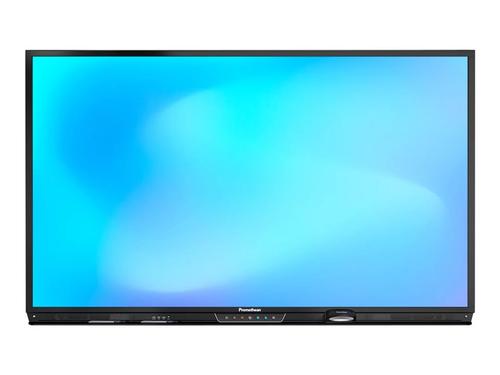

Promethean ACTIVpanel Titanium AP7E-B75-UK-1 - 75" Diagonal Class LED-backlit LCD display - interactive - with built-in interactive whiteboard, touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - Direct LED
- Brand
- Promethean
- Product code
- AP7E-B75-UK-1
- SKU
- 44LU1YPXW9ZU3
- Enhanced interactivity
- Teaching untethered
- Wi-Fi and Bluetooth
- Dual proximity sensors
- Teacher-friendly center console
- Room-filling sound
Description
Enhanced interactivity
Teachers and students can collaborate with up to 20 simultaneous touch points and simultaneous pen, touch, and palm erase.
Teaching untethered
ActivPanel Titanium's controlled, multi-device mirroring lets teachers and students collaborate from anywhere in the classroom by connecting smartphones, tablets, and laptops.
Wi-Fi and Bluetooth
Provide the flexibility required for diverse networking needs and offer more classroom mobility.
Dual proximity sensors
The ActivPanel Titanium automatically warms when someone enters the room. Teachers can quickly get started with the tap of the finger anywhere on the panel.
Teacher-friendly center console
Designed with the teacher in mind, the ActivPanel Titanium features an ergonomic, angled control console. Teachers have quick and easy access to the Unified Menu, volume controls, source selection, and more.
Room-filling sound
Students who hear better, learn better. The ActivPanel Titanium's bass enhanced, front-facing speakers fill the classroom with full range audio and superior fidelity.
| General | |
|---|---|
| Product type | LED-backlit LCD flat panel display |
| Power Consumption Operational | 124 Watt |
| Diagonal Class | 75" |
| Commercial Use | Yes - interactive |
| Combined With | Built-in interactive whiteboard, touchscreen (multi touch) |
| Operating System | Android OS 8.0 |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Sensors | Ambient light sensor (ALS), proximity sensor |
| Video Interface | Composite, HDMI |
| HDMI Ports Qty | 2 ports |
| PC Interface | VGA (HD-15), DisplayPort |
| Design | Ultra Quiet Fanless Design |
| Protection | Tempered glass protection |
| Width | 176.4 cm |
| Depth | 10.9 cm |
| Height | 108.9 cm |
| Weight | 60 kg |
| Display | |
| Colour Support | 1070000000 colours |
| Resolution | 3840 x 2160 |
| Display Format | 4K UHD (2160p) |
| Image Aspect Ratio | 16:9 |
| Frame Rate & Enhancement Technology | 60 Hz Refresh Rate |
| LCD Backlight Technology | Direct LED |
| Coating | Anti-glare, 9H Hard, heat-tempered glass |
| Image Contrast Ratio | 4000:1 |
| Brightness | 350 cd/m² |
| Viewing angle | 178 degrees |
| Touchpoints Qty | 20 |
| Response time | 8 ms |
| Backlight Life | 50,000 hour(s) |
| Features | Over-the-Air Update (OTA), OPS Slot, Vellum writing technology, 1 mm (typ) accuracy |
| Stands & Mounts | |
| Flat Panel Mount Interface | 800 x 400 mm |
| VESA Compatibility | Yes |
| Media Player | |
| USB port | Yes |
| USB Ports Qty | 6 |
| Configuration | ARM Cortex-A73 Dual-Core + ARM Cortex-A53 Dual-Core - 4 GB - 64 GB - Mali G51 MP4 |
| Remote Control | |
| Type | Remote control |
| Battery included | Yes |
| Battery Included Qty | 2 |
| Battery Required Qty | 2 |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 30 Watt |
| Features | Front firing speaker(s), Bass Enhancer |
| Speakers | 2 x main channel speaker - 15 Watt |
| Network & Internet Multimedia | |
| Connectivity | Wi-Fi, LAN, Bluetooth |
| LAN Protocol | Gigabit Ethernet |
| Wi-Fi Protocol | 802.11b, 802.11g, 802.11n, 802.11a, 802.11ac |
| Bluetooth version | Bluetooth 4.2 |
| Connections | |
| Connector type | HDMI input - front HDMI input - rear 2 x USB 3.0 - rear 2 x USB 2.0 - rear Touch - front 2 x touch - rear 2 x USB 3.0 - front Gigabit LAN input RS-232 VGA input Audio line-in Composite video input Microphone input Headphones Gigabit LAN output DisplayPort input HDMI output USB 3.0 - rear USB-C 3.0 - rear |
| Miscellaneous | |
| Included Accessories | Eraser, 2 aerials, wall mount, mounting screws, 4 x pens, mini-PC bracket, sealed anti-static bag, Wi-Fi/Bluetooth module, ActivInspire Professional Edition software (single user licence) |
| Cables included | HDMI cable - 3 m USB cable - 3 m USB-C cable - 2 m |
| Compliant Standards | UL, cUL, CB, IC, FCC, RCM, DisplayPort 1.2 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| Power | |
| Power Device | Power supply |
| Input voltage | AC 100-240 V |
| Power Consumption Stand by | 0.5 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping) | 189.5 cm |
| Depth (Shipping) | 27.8 cm |
| Height (Shipping) | 120 cm |
| Weight (Shipping) | 85.5 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
