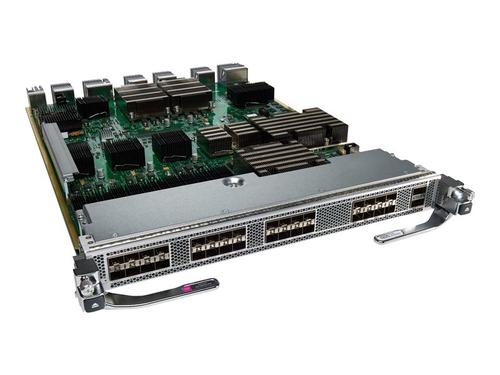

Cisco MDS 9000 Family SAN Extension Module - Expansion module - 16Gb Fibre Channel x 24 + 10Gb FCoE x 8 - for MDS 9706, 9710, 9718
- Brand
- Cisco
- Product code
- DS-X9334-K9=
- SKU
- L6PF49AZR2RS6
- Integrated IP storage services in a high-density form factor
- Integrated hardware-based VSANs and Inter-VSAN Routing (IVR)
- Intelligent network services
- Sophisticated diagnostics
Description
Integrated IP storage services in a high-density form factor
The module supports eight 1 and 10 Gigabit Ethernet ports. Individual ports can be configured with hot-swappable shortwave and long-wave Small Form-Factor Pluggable (SFP) connections.
Integrated hardware-based VSANs and Inter-VSAN Routing (IVR)
The module enables deployment of large-scale multisite and heterogeneous SAN topologies. Integration into port-level hardware allows any port in a system or fabric to be partitioned into any VSAN. Integrated hardware-based IVR provides line-rate routing between any ports in a system or fabric without the need for external routing appliances.
Intelligent network services
The module uses VSAN technology for hardware-enforced, isolated environments in a single physical fabric, access control lists (ACLs) for hardware-based intelligent frame processing, and advanced traffic management features such as fabric wide quality of service (QoS) to facilitate migration from SAN islands to enterprise wide storage networks.
Sophisticated diagnostics
The module provides intelligent diagnostics, protocol decoding, and network analysis tools as well as integrated Cisco Call Home capability for greater reliability, faster problem resolution, and reduced service costs.
| General | |
|---|---|
| Device type | Expansion module |
| Form factor | Plug-in module |
| Networking | |
| Ports | 16Gb Fibre Channel x 24 + 10Gb FCoE x 8 |
| Connectivity technology | Wired |
| Cabling type | Fibre Channel |
| Data Link Protocol | 10Gb Fibre Channel over Ethernet (FCoE), 16Gb Fibre Channel |
| Fibre Channel | FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5 |
| Network / Transport Protocol | IPSec, FCIP, SFTP |
| Remote Management Protocol | RMON, SNMP 3, SSH-2, CLI |
| Status Indicators | Power, system |
| Features | Hot swap module replacement, Syslog support, IPv6 support, VRRP support, QoS, RADIUS support, Automated Attendant (IVR), ICMP, RBAC, AAA |
| Compliant Standards | IEEE 802.3z, IEEE 802.1Q |
| Expansion / Connectivity | |
| Interfaces | 24 x 16Gb Fibre Channel - SFP+ 8 x 10Gb Ethernet - SFP (mini-GBIC) 1 x RS-232 - RJ-45 2 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Encryption Algorithm | IKE, IKEv2 |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, AS/NZS 3260, ICES-003 Class A, EN 60825, HMAC, AS/NZS 3548 Class A, EN 61000-3-1, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, 21 CFR 1040, TS001 |
| Dimensions & Weight | |
| Width | 40.39 cm |
| Depth | 55.37 cm |
| Height | 4.4 cm |
| Weight | 7.71 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance hardware replacement - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Compatibility Information | |
| Designed For | Cisco MDS 9706 Multilayer Director, 9710 Base Config, 9710 Enhanced Config, 9710 Multilayer Director, 9718 Chassis |
