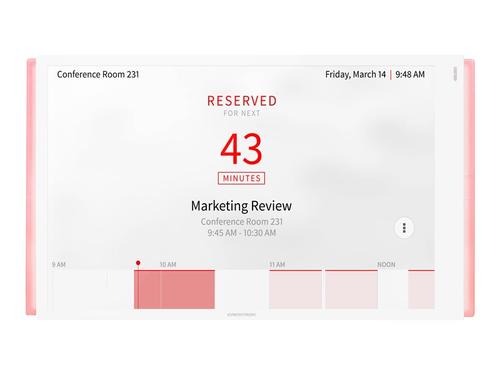

Crestron Room Scheduling Touch Screen TSS-1070-W-S-LB KIT - Room manager - wireless, wired - Bluetooth, 802.11a/b/g/n/ac - 2.4 Ghz, 5 GHz - 10/100 Ethernet - smooth white
- Brand
- CRESTRON ELECTRONICS
- Product code
- TSS-1070-W-S-LB KIT
- SKU
- RKOPE4TB7UUXZ
- EAN/GTIN
- 8592978341381
- Wall-mount touch screen designed specifically for enterprise room scheduling applications
- Delivers a superior and cost-effective alternative to consumer tablet devices
- Integrates directly with various room scheduling services
- Wdescreen capacitive touch screen display
- Single-wire Ethernet connection with PoE or PoE+ power
- Wi‑Fi network connectivity
- Dual USB 2.0 ports for room availability accessories
- Enterprise-grade security and authentication
Description
Functional
The TSS-1070 provides everything needed for scheduling applications in one compact unit that mounts over a standard electrical box or cutout. The TSS-1070 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected the network over Wi‑Fi communications via a local wireless access point (WAP).
Versatile
Crestron offers a variety of mounting options for mounting the TSS-1070 to drywall, masonry, glass, mullions, and other surfaces.
Reliable
Consumer tablets are meant for mobile handheld use and not permanent installs. By contrast, Crestron touch screens are purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment.
Secure
Crestron touch screens employ enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions and ensure compliance with your organization's network policies.
Manageable
Crestron touch screens feature cloud‑based provisioning and management to streamline the process of configuring and monitoring every touch screen on the network and keeping them updated. They also support SNMP, so they can be monitored by your IT administrator alongside every other device on the network.
Cost‑effective
Crestron touch screens offer clear advantages over other alternatives, but that doesn't mean they cost more. The TSS-1070 series delivers a comparable or lower cost solution compared to buying tablets with all the extra peripherals and maintenance they require.
| General | |
|---|---|
| Product type | Room manager wall mount |
| Integrated Components | Speaker |
| Power source | PoE |
| Placing / Mounting | Wall-mounting |
| Package Content | Light bar |
| Connectivity technology | Wireless, wired - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Max Range Open Space | 15 m |
| Frequency band | 2.4 GHz, 5 GHz |
| Display | 10.1" - TFT - 24-bit colour |
| Display resolution | 1920 x 1200 pixels |
| Interfaces Details | LAN/power 2 x USB 2.0 |
| Features | Brightness control, reset button, edge-to-edge, capacitive touch screen, 400 cd/m2 brightness, PoE+, DHCP support, auto-negotiation, IPv6 support, half duplex mode, full duplex mode, SSH support, IPv4 support, SNMP support, auto-switching, CIP support, UDP support, TCP support |
| Control Unit | |
| Input type | Touch screen |
| Buttons Qty | 6 |
| Miscellaneous | |
| Product Material | Plastic |
| Colour | Smooth white |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, SSL, TLS, TKIP, WPA, WPA2-PSK |
| Compliant Standards | IC, DIN 49073, FCC Part 15 Class B, IEEE 802.3at, BS 4662, IEEE 802.1x |
| Dimensions & Weight | |
| Width | 25.9 cm |
| Depth | 5.8 cm |
| Height | 14.9 cm |
| Weight | 730 g |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
