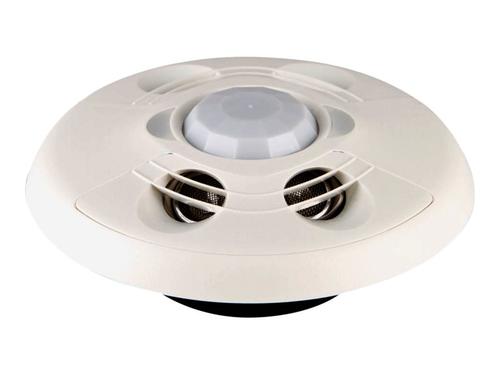

Dual-Technology Occupancy Sensor, PoE, 2,000 Sq Ft
CEN-ODT-C-POE - 8592978355821
Crestron CEN-ODT-C-POE - Occupancy sensor - wired - 10/100 Ethernet - white
- Brand
- CRESTRON ELECTRONICS
- Product code
- CEN-ODT-C-POE
- SKU
- VZK9BL83B92DT
- EAN/GTIN
- 8592978355821
- Ceiling-mount occupancy sensor
- Dual-technology motion detection
- 360-degree coverage pattern
- 2,000 sq ft coverage area
- Discreet, low-profile appearance
- Accurate and reliable motion sensing
- Crestron XiO Cloud service integration
- Enterprise‑grade security
- Enhances the functionality of AV, lighting, and building management systems
- Communicates via Power-over-Ethernet (PoE)
€447.84
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Dual-technology occupancy sensing
Achieving consistent and dependable occupancy sensing is accomplished using a combination of ultrasonic (US) and passive infrared (PIR) sensing technologies. Ultrasonic motion detection is highly sensitive to small movements over a large area, while passive infrared sensing ensures superior immunity to false triggers from vibrations, inanimate objects, or movement in an adjacent corridor.Enterprise-grade security
Crestron employs enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features are imperative to protect your network against service interruptions and malicious intrusions, and to ensure compliance with your organization's network policies. Cloud‑based provisioning and management streamlines the process of configuring, monitoring, and updating every device on the network.Walk-through mode
Walk-through mode prevents the lights from remaining on for a long period when someone quickly enters and then leaves a room. The sensor enters walk-through mode when it detects occupancy for less than 90 seconds. When walk-through mode is activated, the sensor indicates that the room is vacant after 60 seconds.Grace occupancy feature
When the lights turn off in a room programmed to vacancy only mode, a 15-second grace period starts during which the room lights can be turned on again by simply waving a hand to trigger the sensor.Versatile installation
The CEN-ODT-C-POE achieves a discreet, nearly hidden appearance when installed on a typical drywall or droptile ceiling. Hardware is included for fast and simple mounting in a standard 4-in. octagon box or in a hole created with the help of the provided cutout template.Specifications
General
Product type
Occupancy sensor
Sensor type
Motion
Power source
PoE
Connectivity technology
Wired - Ethernet, Fast Ethernet
Interfaces Details
LAN/power
Features
Ceiling mountable, LED indicators, PoE
Motion Sensor
Detection Mode
Passive infrared (PIR), Ultrasonic 40 kHz
Detection angle
360 degree(s)
Detection Coverage
186 m²
Miscellaneous
Product Material
Plastic
Colour
White
Power Consumption Operational
4 Watt
Compliant Standards
C-Tick, IC, FCC, UL 60730-1, IEEE 802.3af
Dimensions & Weight
Width
12.2 cm
Depth
12.2 cm
Height
8.1 cm
Weight
240 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
