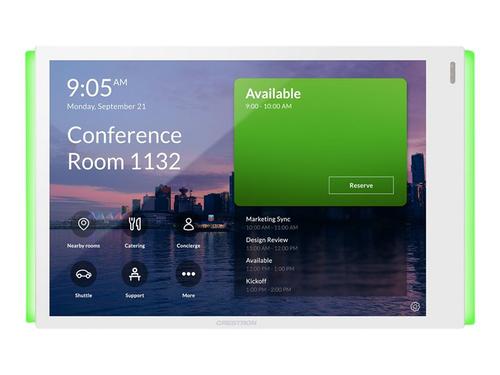

7 in. Room Scheduling Touch Screen for Microsoft Teams Software - White Smooth (includes one TSW-770-LB-W-S light bar)
7 in. Room Scheduling Touch Screen
- Brand
- CRESTRON ELECTRONICS
- Product code
- TSS-770-T-W-S-LB KIT
- SKU
- TN306HQ8N6G3W
- EAN/GTIN
- 8592978328122
- Bluetooth beacon
- Proximity sensor and brightness controls
€1024.31
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Proximity sensor and brightness controls
The TSS-770 provides a built-in proximity sensor that wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Bluetooth beacon
The built‑in Bluetooth proximity detection beacon works with the Crestron Go app and Crestron app to determine when a mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.
| General | |
|---|---|
| Product type | Room manager |
| Integrated Components | Speaker, Bluetooth proximity detection beacon |
| Integrated sensors | Proximity sensor |
| Power source | PoE |
| Package Content | TSW-770-LB-W-S light bar |
| Connectivity technology | Wireless, wired - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Max Range Open Space | 15 m |
| Frequency band | 2.4 GHz, 5 GHz |
| Display | 7" - LED - colour |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Interfaces Details | LAN/power 2 x USB 2.0 |
| Features | Audio alert, wall mountable, reset button, surface mountable, projected capacitive touch screen, 350 cd/m2 brightness, auto brightness control, 850:1 contrast, touch feedback, PoE+, DHCP support, power over Ethernet (PoE), auto-negotiation, IPv6 support, half duplex mode, full duplex mode, WPA2 encryption, SSH support, static IP mode, PoE+, IPv4 support, dynamic IP mode, 802.1x authentication, cloud managed, SNMP support, WEP encryption, WPA encryption, AES encryption, Pre-Shared Key (PSK), TLS decryption, HTTP support |
| Control Unit | |
| Input type | Touch screen |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Product Material | Plastic |
| Colour | Smooth white |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, SSL, TLS, TKIP, WPA, WPA2-PSK |
| Compliant Standards | FCC Part 15 B, IC, DIN 49073, IEEE 802.3af, IEEE 802.3at, BS 4662, IEEE 802.1x |
| Dimensions & Weight | |
| Width | 18.5 cm |
| Depth | 5.7 cm |
| Height | 10.6 cm |
| Weight | 400 g |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
