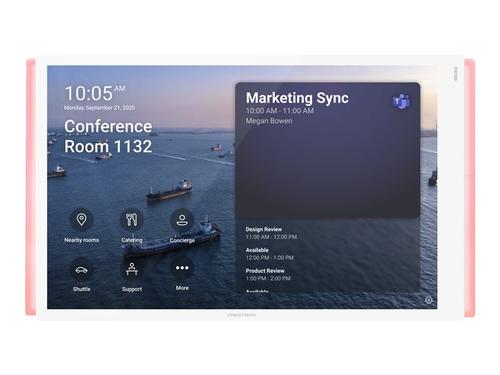

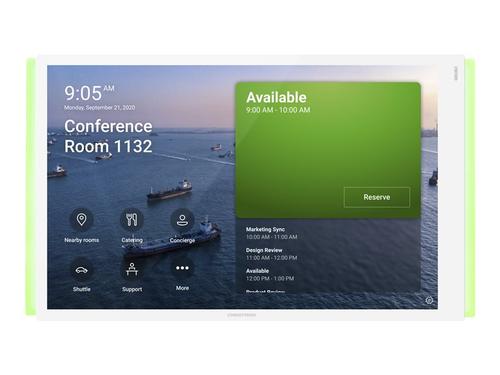

10.1 in. Room Scheduling Touch Screen
- Brand
- CRESTRON ELECTRONICS
- Product code
- TSS-1070-T-W-S-LB KIT
- SKU
- 3QE9V1BBZV666
- EAN/GTIN
- 8592978328337
- Touch screen designed specifically to run the Microsoft Teams Panels scheduling application
- Delivers a superior and cost-effective alternative to consumer tablet devices
- 10.1 inches (257 mm) widescreen capacitive touch screen display
- Single wire Ethernet connection with PoE or PoE+ power
- Wi‑Fi network connectivity
- Dual USB 2.0 ports for room availability accessories
- Enterprise grade security and authentication
Description
Bluetooth beacon
The built‑in Bluetooth proximity detection beacon works with the Crestron Go App and Crestron App to determine when a mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.
Proximity sensor and brightness controls
The TSS-1070 provides a built-in proximity sensor that wakes the screen without requiring any user interaction, and automatic brightness controls ensure optimal visibility under varying lighting conditions.
Functional
The TSS-1070 provides a compact unit for scheduling applications that mounts over a standard electrical box or cutout. The TSS-1070 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected to the network over Wi‑Fi communications via a local wireless access point (WAP).
Reliable
The TSS-1070 is purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the latest features are available, the TSS-1070 checks nightly for app updates and loads the latest version automatically.
| General | |
|---|---|
| Product type | Room manager |
| Integrated Components | Speaker, Bluetooth proximity detection beacon |
| Integrated sensors | Proximity sensor |
| Power source | PoE |
| Package Content | TSW-1070-LB-W-S light bar |
| Connectivity technology | Wireless, wired - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Max Range Open Space | 15 m |
| Frequency band | 2.4 GHz, 5 GHz |
| Display | 10.1" - LED - colour |
| Display resolution | 1920 x 1200 pixels |
| Interfaces Details | LAN/power 2 x USB 2.0 |
| Features | Wall mountable, reset button, surface mountable, capacitive touch screen, 400 cd/m2 brightness, auto brightness control, 1000:1 contrast, PoE+, DHCP support, power over Ethernet (PoE), auto-negotiation, IPv6 support, half duplex mode, full duplex mode, SSH support, PoE+, IPv4 support, cloud managed, SNMP support |
| Control Unit | |
| Input type | Touch screen |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Product Material | Plastic |
| Colour | Smooth white |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, SSL, TLS, TKIP, WPA, WPA2-PSK |
| Compliant Standards | FCC Part 15 B, IC, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x |
| Dimensions & Weight | |
| Width | 25.9 cm |
| Depth | 5.8 cm |
| Height | 14.9 cm |
| Weight | 730 g |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
