Crestron Room Scheduling Touch Screen TSS-1070-T-B-S-LB KIT - For Microsoft Teams - room manager - wireless, wired - Bluetooth, 802.11a/b/g/n/ac - 2.4 Ghz, 5 GHz - 10/100 Ethernet - smooth black
- Brand
- CRESTRON ELECTRONICS
- Product code
- TSS-1070-T-B-S-LB KIT
- SKU
- 6KOROX1ZHSX30
- EAN/GTIN
- 8592978328139

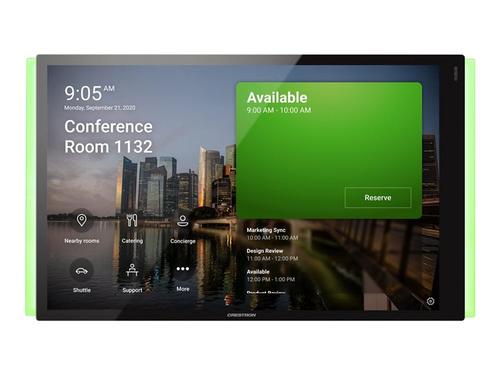

- Touch screen designed specifically to run the Microsoft Teams Panels scheduling application
- Delivers a superior and cost-effective alternative to consumer tablet devices
- 10.1 in. (257 mm) widescreen capacitive touch screen display
- Single wire Ethernet connection with PoE or PoE+ power
- Wi‑Fi network connectivity
- Dual USB 2.0 ports for room availability accessories
- Enterprise grade security and authentication
- Includes one TSW‑1070‑LB series light bar
Description
Functional
The TSS-1070 provides a compact unit for scheduling applications that mounts over a standard electrical box or cutout. The TSS-1070 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected to the network over Wi‑Fi communications via a local wireless access point (WAP).
Versatile
Crestron offers a variety of mounting options for mounting the TSS-1070 to drywall, masonry, glass, mullions, and other surfaces. Optional light bar and hallway sign accessories are available to increase the visibility of the room availability status.
Reliable
The TSS-1070 is purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the latest features are available, the TSS-1070 checks nightly for app updates and loads the latest version automatically.
Secure
The TSS-1070 employs enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions.
Manageable
The TSS-1070 features cloud‑based provisioning and management, which streamlines configuring, monitoring, and updating the touch screen on the network. The TSS-1070 also supports SNMP, so it can be monitored by your IT administrator.
| General | |
|---|---|
| Product type | Room manager |
| Integrated Components | Speaker, Bluetooth proximity detection beacon |
| Integrated sensors | Proximity sensor |
| Power source | PoE |
| Package Content | TSW-1070-LB-B-S light bar |
| Connectivity technology | Wireless, wired - Ethernet, Fast Ethernet, Bluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Max Range Open Space | 15 m |
| Frequency band | 2.4 GHz, 5 GHz |
| Display | 10.1" - TFT - colour |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | Yes |
| Interfaces Details | LAN/power 2 x USB 2.0 |
| Features | Wall mountable, reset button, surface mountable, projected capacitive touch screen, capacitive touch screen, auto brightness control, PoE+, DHCP support, power over Ethernet (PoE), auto-negotiation, IPv6 support, half duplex mode, full duplex mode, SSH support, PoE+, IPv4 support, cloud managed, SNMP support |
| Control Unit | |
| Input type | Touch screen |
| Miscellaneous | |
| Included Accessories | Mounting kit |
| Product Material | Plastic |
| Colour | Smooth black |
| Encryption Algorithm | AES, 128-bit WEP, 64-bit WEP, SSL, TLS, TKIP, WPA, WPA2-PSK |
| Compliant Standards | FCC Part 15 B, IC, IEEE 802.3af, IEEE 802.3at, IEEE 802.1x |
| Dimensions & Weight | |
| Width | 25.9 cm |
| Depth | 5.8 cm |
| Height | 14.9 cm |
| Weight | 730 g |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
