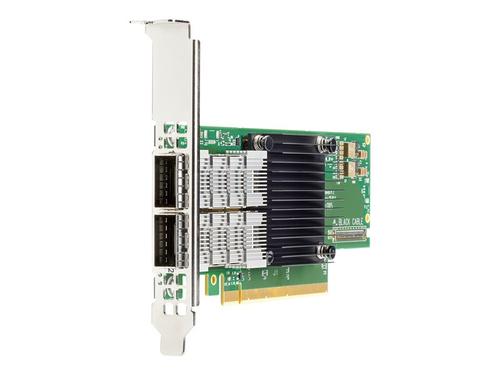

HPE InfiniBand HDR MCX653106A-HDAT
HPE InfiniBand HDR MCX653106A-HDAT - Network adapter - PCIe 4.0 x16 low profile - 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2 - for ProLiant DL325 Gen10, DL345 Gen10, DL365 Gen10, DL380 Gen10
- Brand
- Hewlett Packard Enterprise
- Product code
- P31324-B21
- SKU
- Y582G027IHCD4
- EAN/GTIN
- 190017485621
- Low-latency, high-bandwidth InfiniBand connectivity
- Offloading mechanisms
€3851.18
(Inc. VAT)
Sold Out
(Delivery 2-4 working days)
Description
Low-latency, high-bandwidth InfiniBand connectivity
HPE HDR InfiniBand adapters deliver up to 200 Gbps bandwidth and a sub-microsecond latency for demanding HPC workloads. The HPE InfiniBand HDR100 adapter, combined with HDR switches and HDR cables, is aimed at simplified infrastructure by reducing the number of required switches for a given 100 Gbps InfiniBand fabric.
Offloading mechanisms
HPE HDR InfiniBand adapter includes multiple offload engines that speed up communications by delivering a low CPU overhead for increasing throughput. HPE HDR InfiniBand adapter supports MPI tag matching and rendezvous offloads, along with adaptive routing on reliable transport.
| General | |
|---|---|
| Device type | Network adapter |
| Form factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 1.1, PCIe 2.0, PCIe 3.0, PCIe 4.0 |
| Networking | |
| Ports | 200Gb Ethernet / 200Gb Infiniband QSFP56 x 2 |
| Connectivity technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit InfiniBand, 200 Gigabit Ethernet, 200 Gigabit InfiniBand |
| Data transfer rate | 200 GBps |
| Features | Auto-negotiation, MPLS support, VLAN support, InfiniBand QDR Link support, VPI, QoS, InfiniBand DDR Link support, Jumbo Frames support, PXE support, LSO, LRO, RSS, UEFI support, InfiniBand FDR Link support, congestion control, AER, MSI-X, HDS, TSS, RoCE, InfiniBand EDR Link support, TPH, InfiniBand SDR Link support, XRC transport, DCT, UMR, ODP, MSI, InfiniBand HDR100 Link support |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm, IEEE 802.3by |
| Expansion / Connectivity | |
| Interfaces | 2 x 200Gb Ethernet / 200Gb Infiniband - QSFP56 |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, VCCI Class A, AS/NZS CISPR 22, EN 55022 Class A, FCC CFR47 Part 15 A, RCM Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| OS Required | FreeBSD, Microsoft Windows, Red Hat Enterprise Linux, CentOS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For | HPE Nimble Storage dHCI Medium Solution with HPE ProLiant DL325 Gen10 Plus HPE ProLiant DL325 Gen10 Plus, DL325 Gen10 Plus All-NVMe Flash Node for Qumulo, DL325 Gen10 Plus All-NVMe Flash Node for Software Defined Storage, DL325 Gen10 Plus for Weka Expansion Tracking, DL325 Gen10 Plus V2, DL325 Gen10 Plus V2 Base, DL325 Gen10 Plus V2 for Weka Base Tracking, DL325 Gen10 Plus V2 Performance, DL345 Gen10 Plus Base, DL365 Gen10 Plus, DL380 Gen10 Plus, DL380 Gen10 Plus Network Choice, DL385 Gen10 Plus, DL385 Gen10 Plus Entry |
