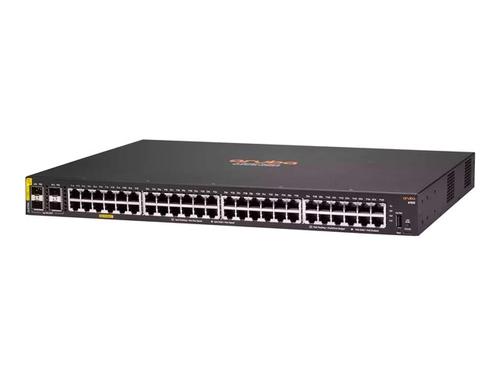

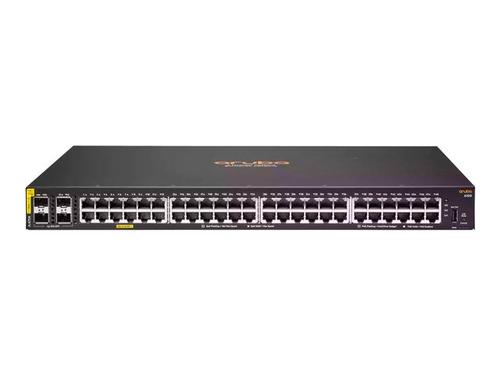

HPE Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch - Switch - Managed - 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (370 W)
- Brand
- Hewlett Packard Enterprise
- Product code
- JL675A#ACC
- SKU
- NW4FBAFD1E7FU
- EAN/GTIN
- 190017348049
- Switch
- Managed
- 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
- side to side airflow
- rack-mountable
- PoE+ (370 W)
- Weight: 6.18 KG
Product Info
The Aruba CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, and SMB networks. Designed for reliable, simple, and secure access, the Aruba CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.
Prepare your network for tomorrow's unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the Aruba CX portfolio to deliver a more consistent, more efficient operator experience. With robust QoS, support for static routing, and IPv6, the Aruba CX 6100 also simplifies ownership with no switch software licensing requirements.
Description
Entry level Aruba CX access layer switches
The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks. Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience. Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.
Performance and power
The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to 370W IEEE 802. 3at Class 4 Power over Ethernet for up to 30W per port. Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.
Simplified configuration and management
The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba NetEdit, easy to use Web GUI, or industry standard CLI. Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates. Software-defined ready with REST APIs for fine-grained programmability of network tasks. Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).
| General | |
|---|---|
| Flash Memory | 16 GB |
| Encryption Algorithm | SSL |
| Subtype | 10 Gigabit Ethernet |
| Routing Protocol | IGMPv2, IGMPv3 |
| PoE Budget | 370 W |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 4 GB DDR3 SDRAM |
| Device Type | Switch - 52 ports - Managed |
| MAC Address Table Size | 8192 entries |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Enclosure Type | Side to side airflow rack-mountable 1U |
| Performance | Switching capacity: 176 GbpsThroughput: 98.6 µsLatency (1 Gbps): 1.9 µsLatency (10 Gbps): 1.8 µs |
| Capacity | Switched virtual interfaces (SVIs): 16ARP entries: 1024IPv4 routes (Unicast): 512IPv6 routes (Unicast): 512IGMP groups: 512MLD groups: 512IPv4 ACL entries (ingress): 256IPv6 ACL entries (ingress): 128MAC ACL entries (ingress): 256 |
| Processor | 1 x ARM A9: 1.016 GHz |
| Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+, RADIUS |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Features | DNS client, VLAN support, MSTP support, RSTP, LACP support, Energy Efficient Ethernet, flow control, UDP, TFTP support, ARP support, DHCP client, ICMP, SNTP support, BOOTP support, DiffServ support, EntityMIB, IPv6 addressing, IPv6 support, LLDP support, LLDP-MED, MIB, MLD snooping, NDP, NAC, port based access control, sFlow, SNMP support |
| Expansion / Connectivity | |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 PoE+4 x 1/10Gbit LAN SFP+1 x USB-C console1 x USB Type A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Localisation | English / United Kingdom |
| Compliant Standards | IEC/EN 60950-1, EN 60825, CAN/CSA C22.2 No. 60950 Second Edition, UL 60950-1 Second Edition, FCC Class A certified, VCCI Class A, EN 55022/CISPR 22 Class A, EN 60825-1:2007, IEC 60825-1:2007 Class 1, Laser Class 1, CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, EN 61000-3-2, IEC 61000-3-2, EN 61000-3-3, IEC 61000-3-3, RFC768, RFC1591, RFC783, RFC792, RFC2460, RFC2925, RFC1213, RFC1493, RFC2674 |
| Power | |
| Power Consumption Operational | 30.6 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 220 V (50/60 Hz) |
| Power Provided | 500 Watt 2.4 A |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
| Dimensions & Weight | |
| Width | 44.2 cm |
| Depth | 30.48 cm |
| Height | 4.39 cm |
| Weight | 5.02 kg |
