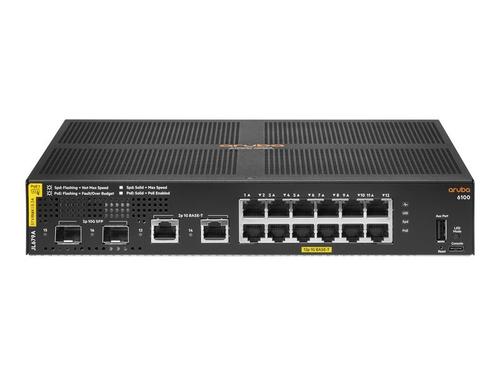

HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch
HPE Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch - Switch - L3 - Managed - 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T - rack-mountable - PoE+ (139 W)
- Brand
- Hewlett Packard Enterprise
- Product code
- JL679A#ACC
- SKU
- TKDRA5AAO0BKG
- EAN/GTIN
- 190017349008
- Provides entry-level, reliable, and convenient wired access connectivity
- Silent deployment with compact and fanless PoE model
€1085.52
(Inc. VAT)
(Delivery 2-4 working days)
Description
Entry-level Aruba CX access layer switch
The Aruba CX 6100 switch series offers Gigabit connectivity with high-speed uplinks to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
Performance and power
The Aruba CX 6100 switch series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.
| General | |
|---|---|
| Device type | Switch - 16 ports - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 12 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ + 2 x 1000Base-T |
| Power over Ethernet (PoE) | PoE+ |
| PoE Budget | 139 W |
| Performance | Switching capacity:68 Gbps Throughput:45.1 Mpps Latency (1 Gbps):2.3 µs Latency (10 Gbps):2.6 µs |
| Capacity | Switched virtual interfaces (SVIs):16 ARP entries:1024 IPv4 routes (Unicast):512 IPv6 routes (Unicast):512 IGMP groups:512 MLD groups:512 IPv4 ACL entries (ingress):256 IPv6 ACL entries (ingress):128 MAC ACL entries (ingress):256 |
| MAC Address Table Size | 8192 entries |
| Routing Protocol | IGMPv2, IGMPv3 |
| Encryption Algorithm | SSL |
| Authentication method | Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, fanless, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing |
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az |
| Processor | 1 x ARM A9:1.016 GHz |
| RAM | 4 GB DDR3 SDRAM |
| Flash memory | 16 GB |
| Expansion / Connectivity | |
| Interfaces | 12 x 10/100/1000 Base-T RJ-45 2 x 1/10Gbit LAN SFP+ 1 x USB-C console 1 x USB Type A 2 x Gigabit LAN |
| Power | |
| Power Device | Internal power supply |
| Power Provided | 165 Watt 0.9 A |
| Voltage Required | AC 230V (50/60 Hz) |
| Power Consumption Operational | 16 Watt |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792 |
| Localisation | English / United Kingdom |
| Dimensions & Weight | |
| Width | 25.4 cm |
| Depth | 25.5 cm |
| Height | 4.39 cm |
| Weight | 2.78 kg |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
