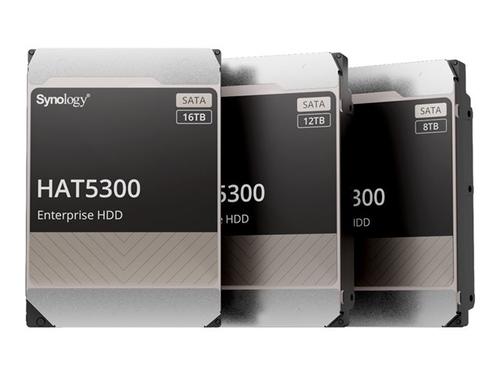

Synology HAT5300

HAT5300-12T - 4711174724130

Synology HAT5300 - Hard drive - 12 TB - internal - 3.5 inch - SATA 6Gb/s - 7200 rpm - buffer: 256 MB - for Deep Learning NVR DVA3221, Disk Station DS1621, DS1821, RackStation RS1221, RS3621, RS4021

Brand: Synology
Product code: HAT5300-12T
SKU: JALQSOU8VEJFI
EAN/GTIN: 4711174724130

Hard drive
12 TB
internal
3.5"
SATA 6Gb/s
7200 rpm
buffer: 256 MB
for Deep Learning NVR DVA3221; Disk Station DS1621, DS1821; RackStation RS1221, RS3621, RS4021
Weight: 0.70 KG

€864.73 (Inc. VAT)

Sold Out

(Delivery 2-4 working days)

Product Info

Synology HAT5300 is designed to tackle demanding, high-volume workloads. Optimized specifically for Synology storage solutions, its design enables high sequential throughput, maximizing the number of concurrent clients the system can sustain. HAT5300 series drives are engineered for maximum dependability.

Description

Scale up confidently

Synology HAT5300 drives are engineered to provide fast and dependable performance, even for a large number of clients. Firmware and software collaborate to ensure maximum performance, delivering high sequential read performance. HAT5300 provides outstanding performance for large-scale video surveillance, multimedia post-production and enterprise file server environments.

Maximum endurance and reliability

Combined with data protection solutions running on Synology systems, you can confidently depend on your data 24/7 using HAT5300 series drives.

Simplified maintenance

DSM updates will ensure that compatible Synology drives will be updated together with the operating system. This reduces the number of maintenance sessions IT teams need to schedule while also increasing the entire system's service availability. Simplify IT infrastructure planning requirements by getting support for the entire system from Synology.

Specifications

General

Buffer Size 256 MB

Bytes per Sector 512

Form Factor 3.5"

Depth 147 mm

Weight 720 g

Height 26.1 mm

Capacity 12 TB

Device Type Hard drive - internal

Width 101.85 mm

Interface SATA 6Gb/s

Features Persistent Write Cache technology

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Miscellaneous

Compliant Standards EAC, BSMI, CSA, ICES, KC, RCM, RoHS, TUV, UL

Power

Power Consumption 4.25 Watt (idle)7.83 Watt (random read/write)

Environmental Parameters

Max Operating Temperature 60 °C

Min Operating Temperature 5 °C

Max Storage Temperature 70 °C

Min Storage Temperature -40 °C

Humidity Range Operating 5 - 90% (non-condensing)

Shock Tolerance (operating) 70 g @ 2 ms

Shock Tolerance (non-operating) 250 g @ 2 ms

Vibration Tolerance (non-operating) 3 g @ 5-500 Hz

Vibration Tolerance (operating) 0.75 g @ 5-300 Hz

Performance

Spindle Speed 7200 rpm

Drive Transfer Rate 600 MBps (external)

Internal Data Rate 242 MBps

Reliability

24x7 Operation Yes

MTBF 2,500,000 hours

Compatibility Information

Designed For Synology SA3400, SA3600Synology Deep Learning NVR DVA3219, DVA3221Synology Disk Station DS1520+, DS1618+, DS1621+, DS1621XS+, DS1819+, DS1821+, DS220+, DS2419+, DS3018xs, DS3617xs, DS420+, DS720+, DS920+Synology RackStation RS1221+, RS1221RP+, RS1619xs+, RS18017XS+, RS2418+, RS2418RP+, RS2818RP+, RS3617RPxs, RS3617xs+, RS3618XS, RS3621RPxs, RS3621xs+, RS4017XS+, RS4021xs+, RS820+, RS820RP+

Expansion & Connectivity

Compatible Bay 3.5"

Interfaces 1 x SATA 6 Gb/s
